The Push Mobile service is based on « outgoing » connections. No network connection from
Internet to the LAN is needed.
All the information shared between the mobile device and the Extended Communication
Server is done through a VPN tunnel. This VPN tunnel is established by the Alcatel-Lucent
Enterprise relay server which also provides the ComID.
The VPN session keeping between the mobile device and the Extended Communication
Server uses approximately 1 MB per month.
Supported architectures:
-
Extended Communication Server connected directly to Internet with a public IP
-
Extended Communication Server in a LAN "nated" behind a FW or a router
-
Extended Communication Server hosted in a DMZ
-
Mobile device with data connection to Internet
-
Mobile device connected to Internet through WIFI
Not supported architecture : Extended Communication Server behind a proxy.
14.7
Push Mobile SYNCML Service
14.7.1
General Description

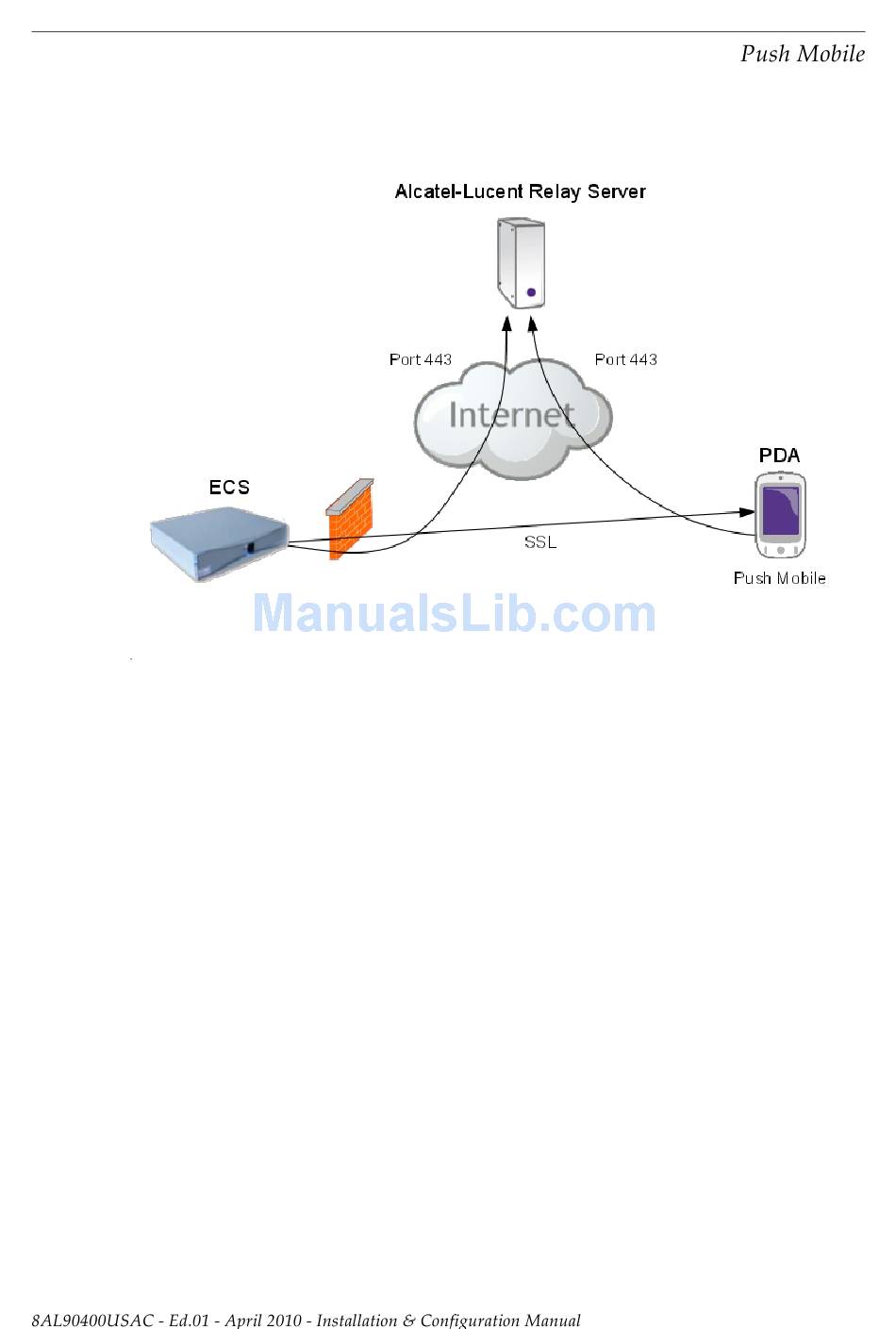

Figure 14.3: Push Mobile Achitecture
14-3
