Chapter 2: Jumpers and Connectors

Internal Connectors

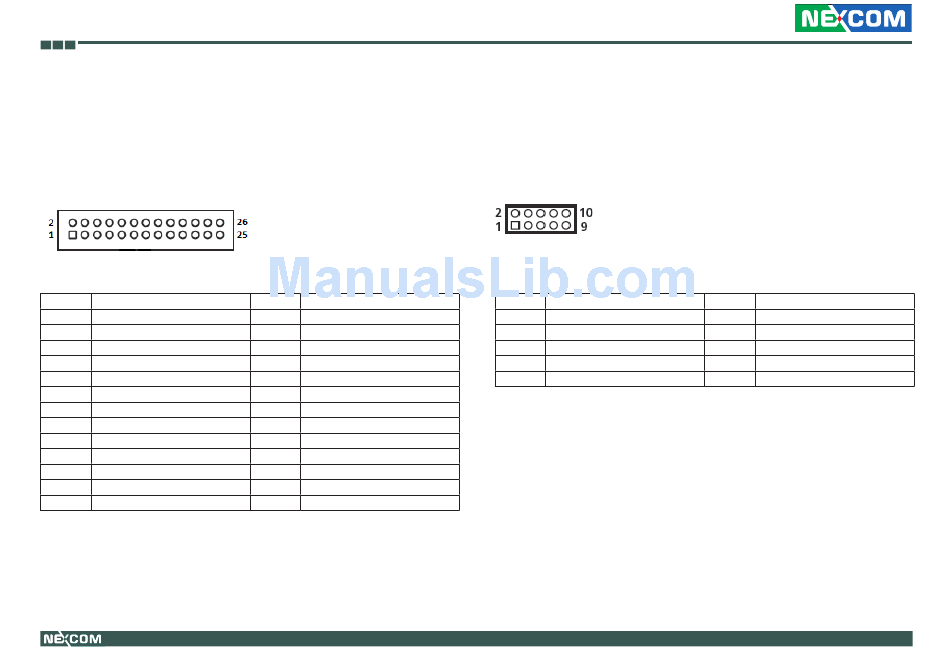

SATA and LAN LED Connectors

Connector type: 2x13 26-pin header
Connector location: JP4
Pin Definition
1 +3.3V
3 SATA0_P_LED
5 SATA1_P_LED
7 SATA2_P_LED
9 SATA3_P_LED
11 SATA4_P_LED
13 SATA5_P_LED
15 SYS_P_LED
17 NC
19 +3.3V
21 3VSB
23 3VSB
25 PWRBTN+
Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
Pin Definition
2 GND
4 SATA0_S_LED
6 SATA1_S_LED
8 SATA2_S_LED
10 SATA3_S_LED
12 SATA4_S_LED
14 SATA5_S_LED
16 SYS_S_LED
18 GND
20 SATALED_N
22 LAN1_ACT_N
24 LAN2_ACT_N
26 PWRBTN+

FP Control Connector

Connector type: 2x5 10-pin header
Connector location: JFP1
Pin Definition
1 SATA_LED_P
3 SATA_LED_N
5 GND
7 RST_BTN_N
9 NC
15
Pin Definition
2 PWR_LED_P
4 GND
6 PWRBT_N
8 GND
