Chapter 2: Jumpers and Connectors

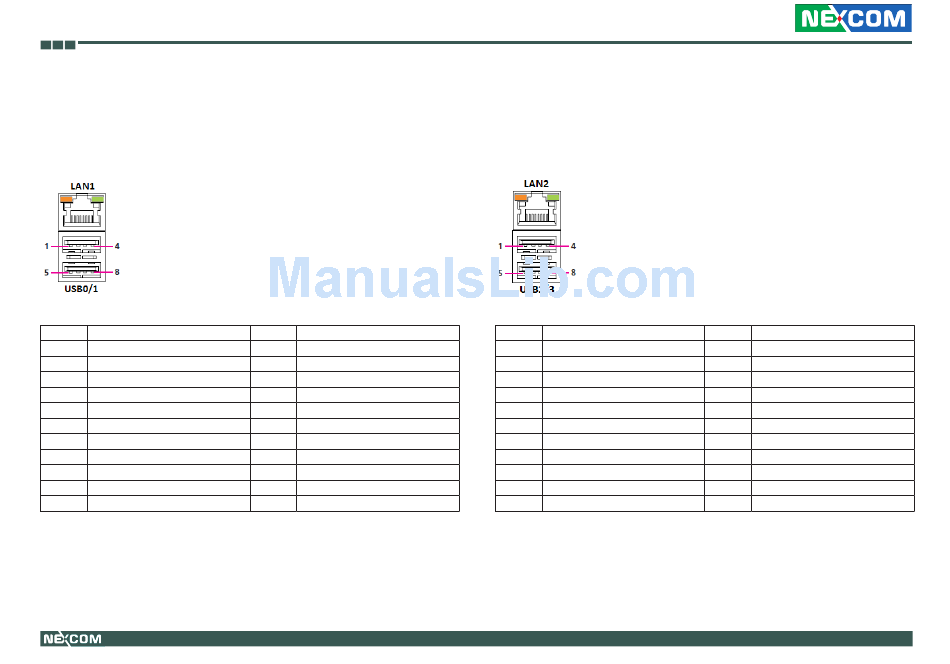

LAN1 and USB0/1 Ports

Connector type: RJ45 port with LEDS (LAN1)
Dual USB port, Type A (USB0/1)
Connector location: CN6
Pin Definition
1 5VDUAL
3 USB0_P
5 5VDUAL
7 USB1_P
9 TCT
11 LAN1_MDI0N
13 LAN1_MDI1N
15 LAN1_MDI2N
17 LAN1_MDI3N
19 LAN1_100M#
21 LAN1_ACTLED#
Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
Pin Definition
2 USB0_N
4 GND
6 USB1_N
8 GND
10 LAN1_MDI0P
12 LAN1_MDI1P
14 LAN1_MDI2P
16 LAN1_MDI3P
18 GND
20 LAN1_1G#
22 LAN1_ACTLED# POWER

LAN2 and USB2/3 Ports

Connector type: RJ45 port with LEDS (LAN2)
Dual USB port, Type A (USB2/3)
Connector location: CN3
Pin Definition
1 5VDUAL
3 USB2_P
5 5VDUAL
7 USB3_P
9 TCT
11 LAN2_MDI0N
13 LAN2_MDI1N
15 LAN2_MDI2N
17 LAN2_MDI3N
19 LAN2_100M#
21 LAN2_ACTLED#
13
Pin Definition
2 USB2_N
4 GND
6 USB3_N
8 GND
10 LAN2_MDI0P
12 LAN2_MDI1P
14 LAN2_MDI2P
16 LAN2_MDI3P
18 GND
20 LAN2_1G#
22 LAN2_ACTLED# POWER
