Chapter 2: Jumpers and Connectors

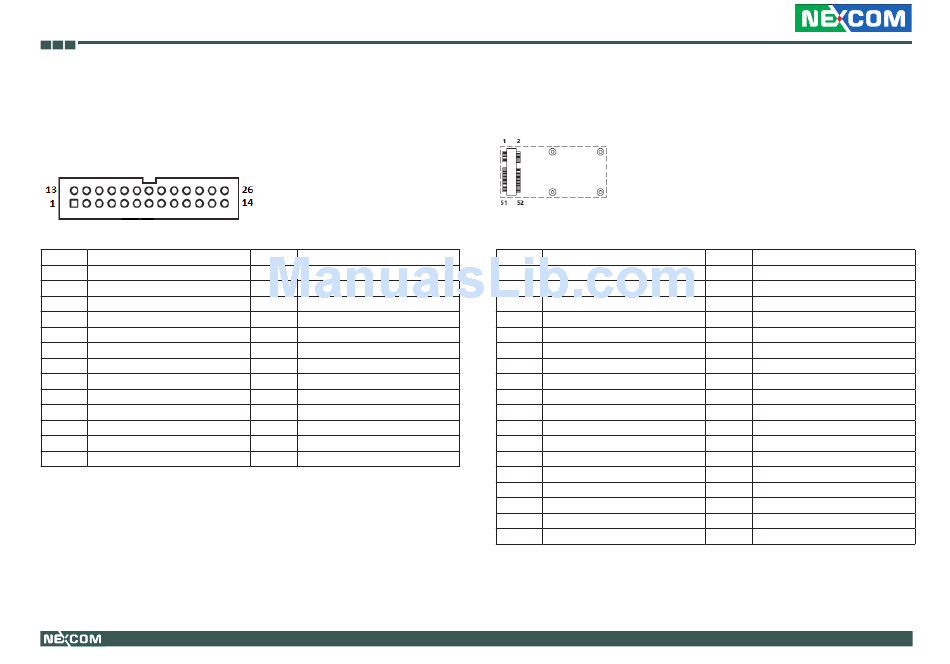

PIO Connector

Connector type: 2x13 26-pin header
Connector location: CN14
Pin Definition
1 STB#
3 D1
5 D3
7 D5
9 D7
11 BUSY
13 SLCT
15 ERR#
17 SLIN#
19 GND
21 GND
23 GND
25 GND
Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
Pin Definition
2 D0
4 D2
6 D4
8 D6
10 ACK#
12 PE
14 AFD#
16 INIT#
18 GND
20 GND
22 GND
24 GND
26 GND

Mini-PCIe Slot (3.5G)

Connector location: CN4
Pin Definition
1 WAKE#
3 NC
5 NC
7 Pull high 100k to 3VSB
9 GND
11 REFCLK-
13 REFCLK+
15 GND
17 NC
19 NC
21 GND
23 PE_RX-
25 PE_RX+
27 GND
29 GND
31 PE_TX-
33 PE_TX+
35 GND
24
Pin Definition
2 3VSB
4 GND
6 1.5VSB
8 NC
10 NC
12 NC
14 NC
16 NC
18 GND
20 Pull high 100k to 3VSB
22 PERST#
24 3VSB
26 GND
28 1.5VSB
30 NC
32 NC
34 GND
36 USB-
