Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

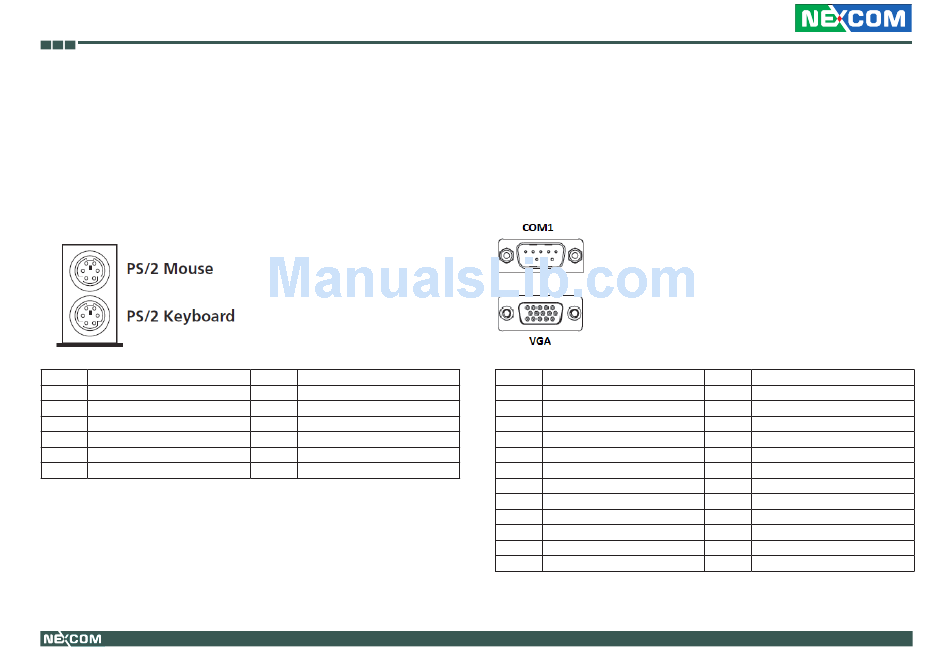

PS/2 Mouse and Keyboard Ports

Connector type: PS/2, Mini-DIN6
Connector location: CN16
Pin Definition
1 KB DATA
3 GND
5 KB CLOCK
7 MS DATA
9 GND
11 MS CLOCK
Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
Pin Definition
2 NC
4 5VDUAL
6 NC
8 NC
10 5VDUAL
12 NC

COM1 and VGA Ports

Connector type: DB-9 port, 9-pin D-Sub (COM1)
DB-15 port, 15-pin D-Sub (VGA)
Connector location: CN13
Pin Definition
1 RED
3 BLUE
5 GND
7 GND
9 +5V
11 NC
13 HSYNC
15 DDC CLOCK
17 RXD
19 DTR
21 DSR
23 CTS
11
Pin Definition
2 GREEN
4 NC
6 GND
8 GND
10 GND
12 DDC DATA
14 VSYNC
16 DCD
18 TXD
20 GND
22 RTS
24 RI
