Chapter 2: Jumpers and Connectors

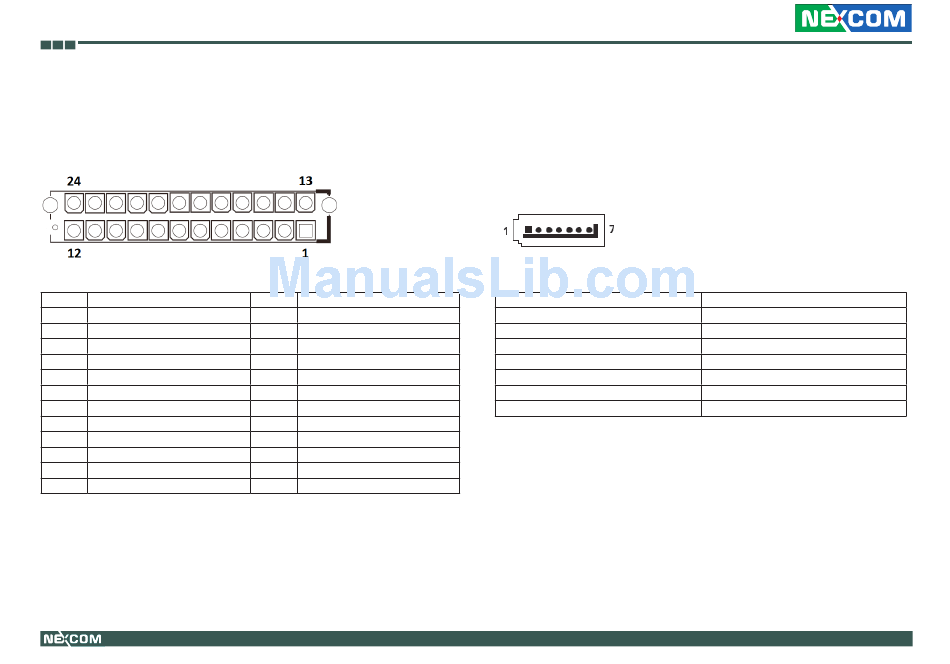

ATX Power Connector

Connector type: 2x12 24-pin header
Connector location: CON1
Pin Definition
1 +3.3V
3 GND
5 GND
7 GND
9 +5VSB
11 +12V
13 +3.3V
15 GND
17 GND
19 GND
21 +5V
23 +5V
Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
Pin Definition
2 +3.3V
4 +5V
6 +5V
8 POWEROK
10 +12V
12 +3.3V
14 NC
16 PS-ON
18 GND
20 NC
22 +5V
24 GND

SATA 2.0 Connectors

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180)
Connector location: CN17 (SATA1), CN7 (SATA2), CN9 (SATA3), CN10
(SATA4), CN8 (SATA5)
Pin
1
2
3
4
5
6
7
22
Definition
GND
SATA_TX_P
SATA_TX_N
GND
SATA_RX_P
SATA_RX_N
GND
