ARMRESTS

B
CARER-OPERATED ANGLE ADjUSTMENT
C

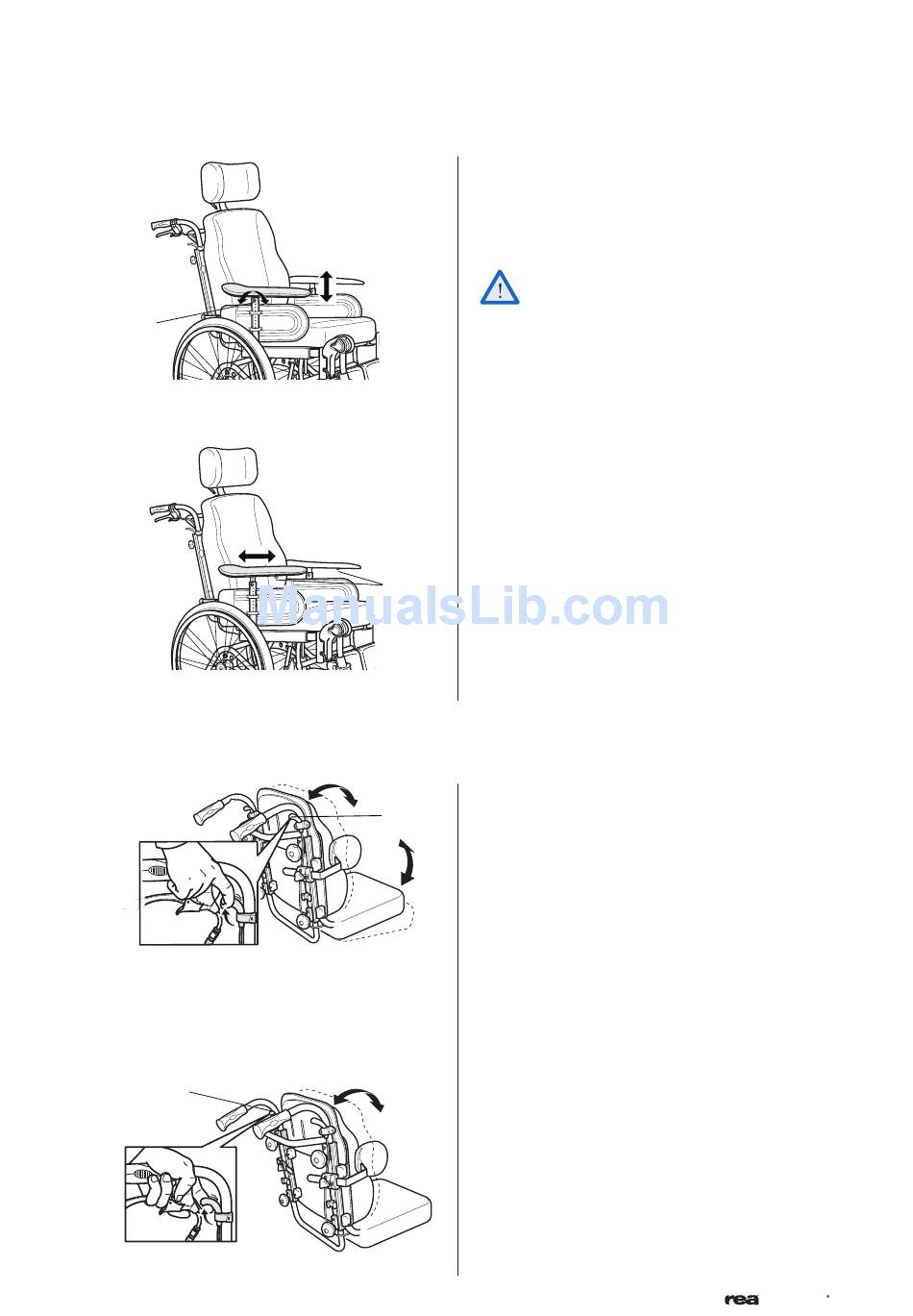

Armrest height
1. Adjust the height of the armrests by turning the
knob or Allen key screw (A), setting the required
height and then re-tightening the knob/screw.
Be aware not to trap your fingers between the
armpad and the sidesupport when you adjust
the armrest height.
Armrest depth
2. You can also adjust the depth of the armrest pad.
Loosen the knob (B), set the pad in the required
position and re-tighten the knob.
SEAT
The wheelchair is equipped with carer-operated
controls. You can adjust the angle of the backrest
forwards or backwards and tilt the whole seat unit
including the backrest. These two functions can either
be controlled manually or electrically. Be careful when
adjusting the angle of the backrest so that you do not
trap your or the user's fingers between the backrest
and the armrest.
1. Tilt adjustment
Tilt of the seat unit (seat and backrest) by pulling
the right-hand lever (C) upwards and keeping it
there whilst you tilt the seat unit to the required
position. Release the lever (C).
2. Backrest angle adjustment
Adjust the angle of the backrest by pulling the
left-hand lever (D) upwards and keeping it there
whilst you push the backrest away from you or
pull it towards you until you have obtained the
required position. Release the lever (D).
