Azalea
R

CENTRAL LEGREST

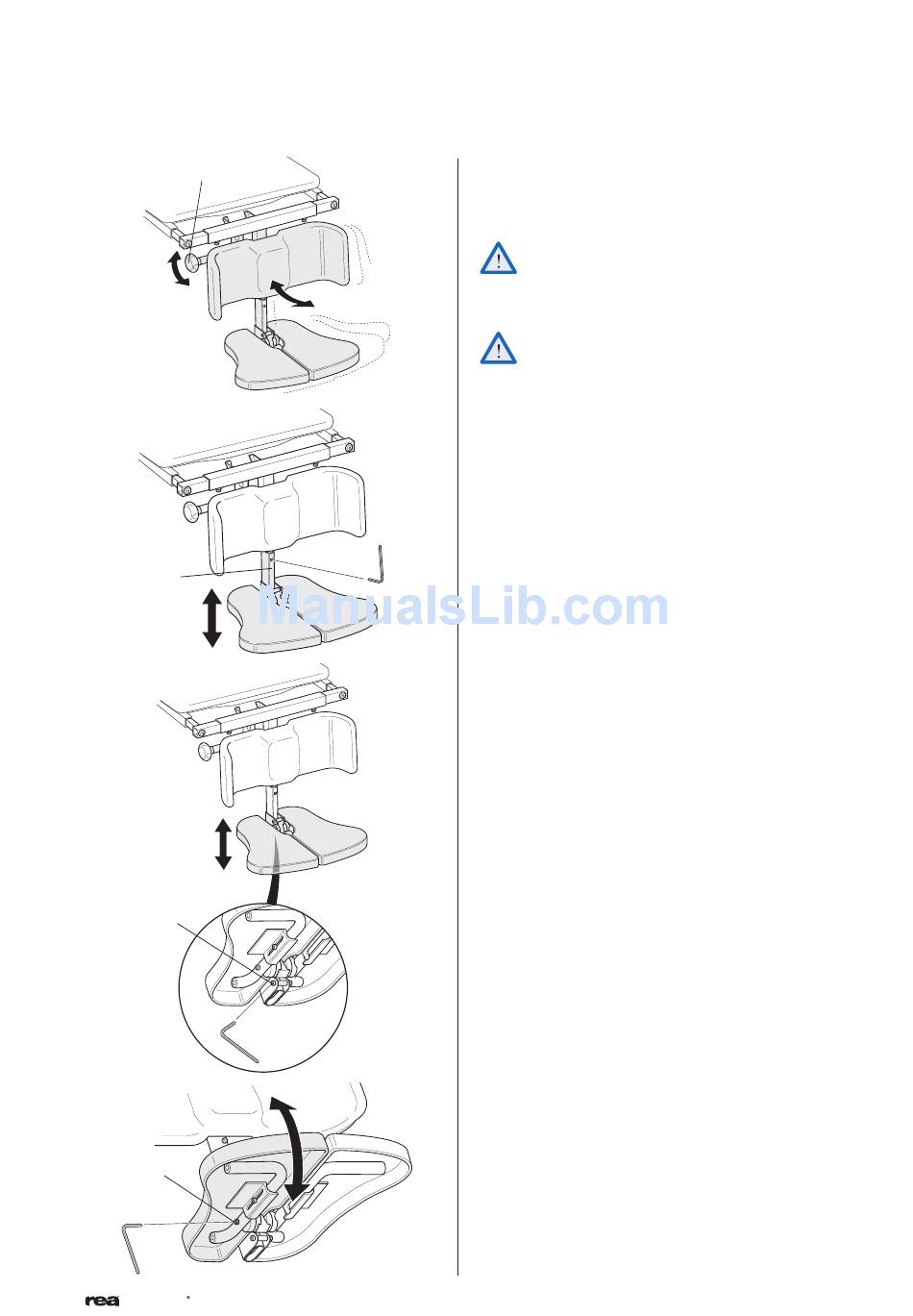

1. Adjust to the appropriate leg angle using knob
(A).
2. You can adjust the height of the legrest in
the following two ways:
Alternative 1:
Loosen the Allen screw (B) using a 5 mm Allen
key on the front of the telescopic tube, place the
legrest in the desired position and secure it into
place using the Allen screw.
Alternative 2:
Loosen the Allen screw (C) by the legrest attach-
ment as shown in the diagram. Adjust to the
desired height and then retighten the screw.
3. Loosen the rear screw (D) on the side of the
tube and adjust the legrest to the desired angle.
Retighten the screw. Repeat this procedure to
adjust the angle of the other legrest.
Tool: 5 mm Allen key
When adjusting the angle of the central legrest,
loosen the adjustment knob with one hand and
hold the foot plate with the other hand to avoid
trapping yours or anyone else's fingers etc.
When the seat is tilted forwards on a chair
with a long legrest length and low seat height,
there is a risk of the legrest hitting the floor
and causing damage.
