2c.
3
2
G
1
2
1
I
H
30
3
Tool: 5 mm Allen Key
screwdriver
2c.

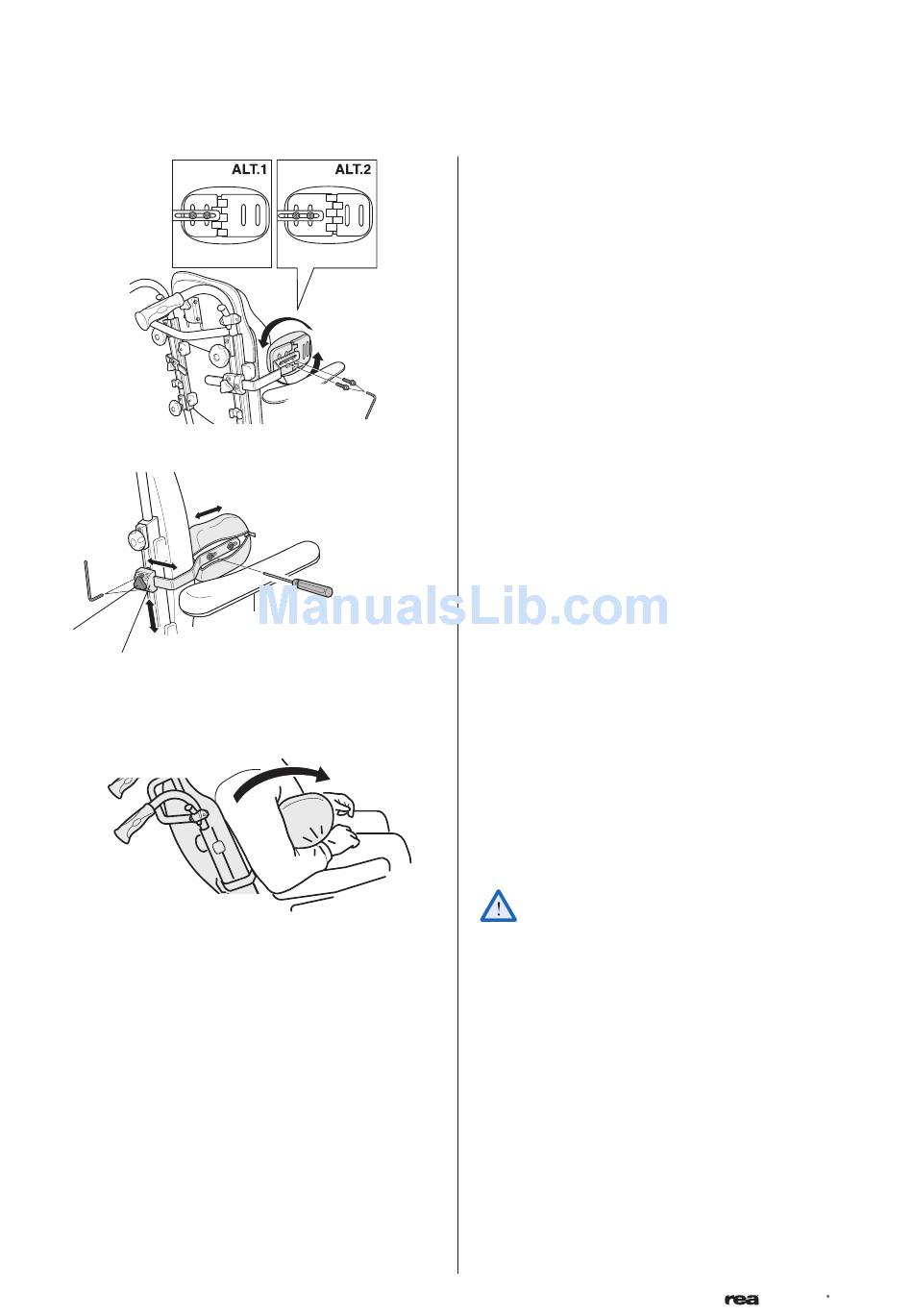

• small side support / large trunk support Alt.1
• large side support / small trunk support Alt. 2
Trunk support with fixed cushion.
The trunk supports can be adjusted in height, depth
and sideways.
1. You adjust the height by first loosening the
screws (G) whilst moving the attachment
(H) upwards or downwards. Re-tighten the
screws (G).
2. You adjust the trunk supports sideways by loosen-
ing the knob (I), moving the support sideways to
the required position and then re-tightening the
knob (I).
3. To adjust the depth of the trunk supports, first
unzip the trunk support cover to reveal the screws
inside. Unscrew them using a screwdriver, and
move the trunk support forwards or backwards.
Retighten the screws and zip up the cover.
4. Remove the trunk support by loosening knob (I)
and pulling the trunk support sideways and out-
wards.
Be careful not to trap your arm between trunk
support and armrest when changing the angle
of the backrest.
