Azalea
R

BACkREST

A

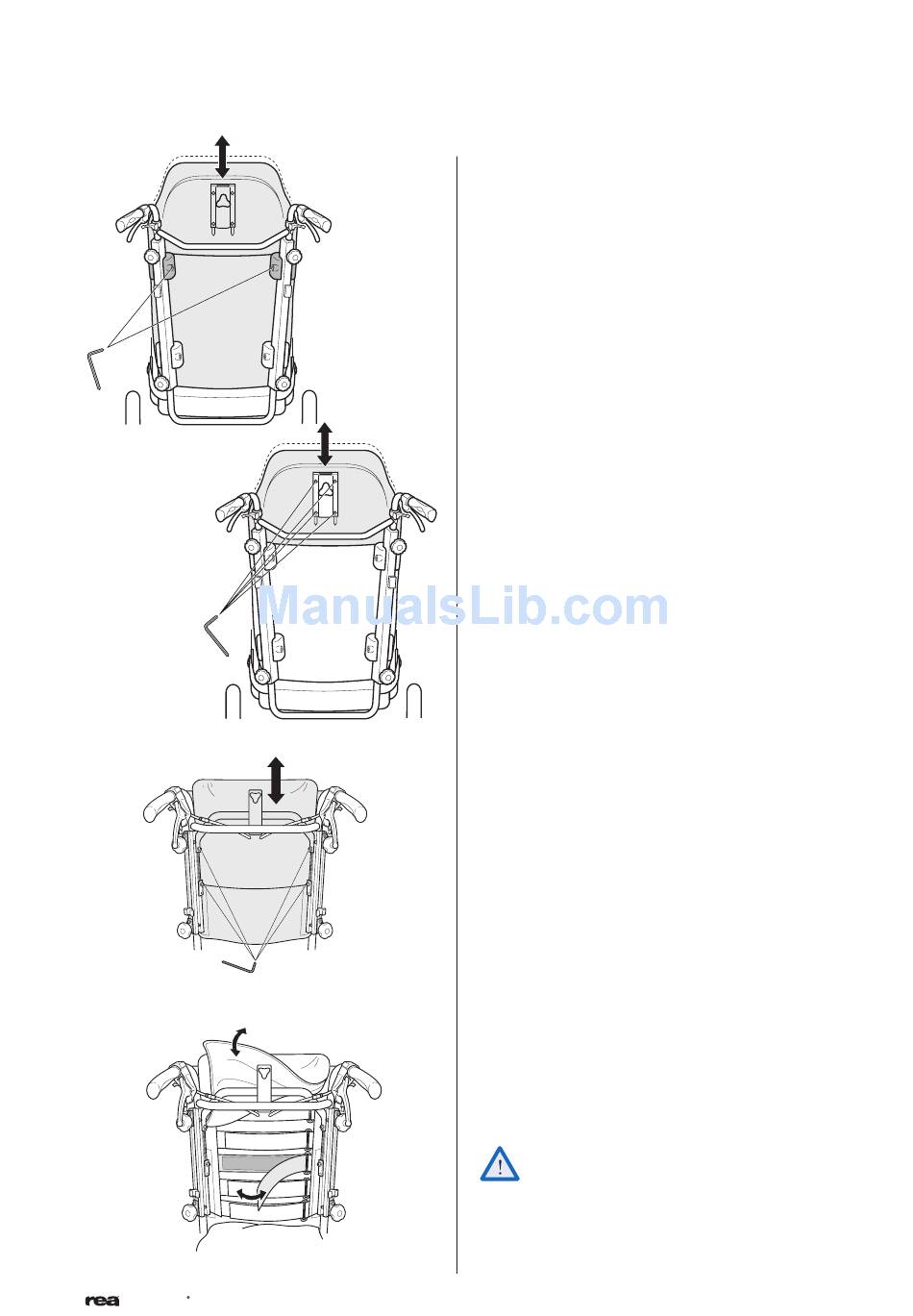

Backrest plate
1. You can easily adjust the backrest plate (+ 10
cm) by loosening the two upper screws (A) with
a 5-mm Allen key. Set at the required height and
re-tighten.
2. The upper section has two height levels and it is
also removable (to fit lower backrest cushions).
Loose screws (B) with an 5-mm Allen key and raise
it to its highest position. For removal, remove the
screws (B).
Tension adjustable
1. For raising the height (+12,5cm), loose screw (A)
and lift the backrest frame up.
2. For shaping the form, loose the Velcro straps,
tighten first where you would like to have a firm
support and follow with the others. Check that
the cover/cushion do not "lock" the straps by the
Velco attachment.
Please ensure that the velcro straps are not too
loose, as this will result in your back coming
into contact with backrest bow (A), and could
result in injury.
