Footplates/Calf Pads - Invacare rea Azalea Assist User Manual

C
A
Tool: 5 mm Allen key
1.
Tool: 5 mm Allen key
2.
Tool: 5 mm Allen key
14
FIxED LEGRESTS
FOOTPLATE/CALFPAD
A
B
D

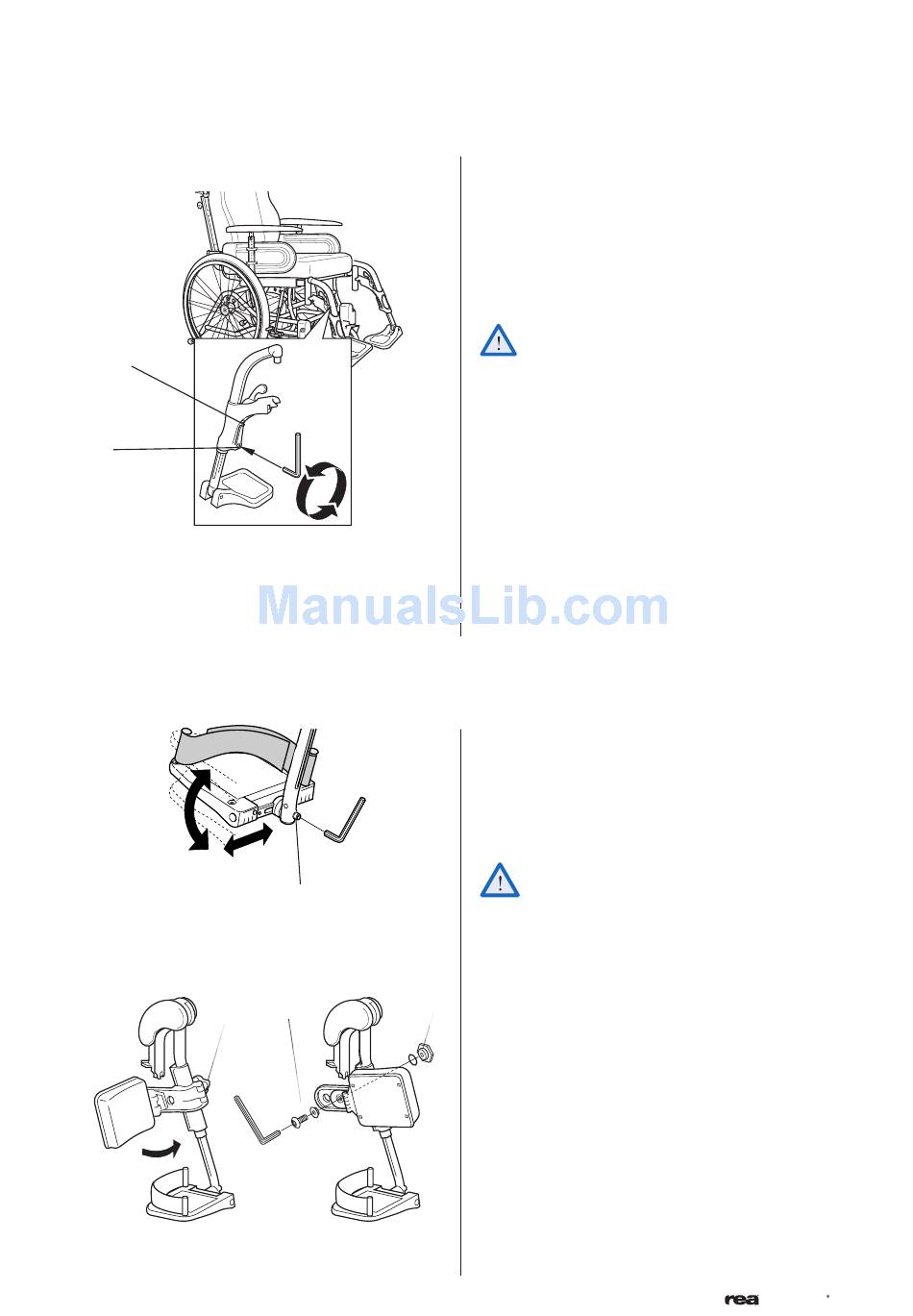

Height adjustment
Loosen screw (A) with an Allen key. Adjust the
legrest into a suitable height and the screw is caught
by one of the recesses on the legrest tube. Then
retighten the screw.
NOTE! Don't touch the upper screw (C).
The distance between the lowest part of
the footrest and the ground must be at least
40 mm.
1. Angle-adjustable footplates
Adjust the angle and the depth by loosening the
screw (A) at the footplate attachment with a 5
mm Allen key. Adjust the footplate to the correct
position and retighten the screw.
Do not place anything on the footplate when
the screw is loose.
C
2. Calf pads
The calf pads can be fitted in four different depth
positions. Swing the pad forwards. Unscrew screw
(B) using an Allen key. Remove the large nut (C) on
the reverse side and place it in the other attach-
ment hole. Move the calf pad to the new position
and secure it into place with the screw.
The height of the calf pads can easily be adjusted
using the handwheel (D).
