Transport

How to disassemble your Azalea
1.
A
2.
3.
4.
D
32
B
C
to transport it as luggage
®

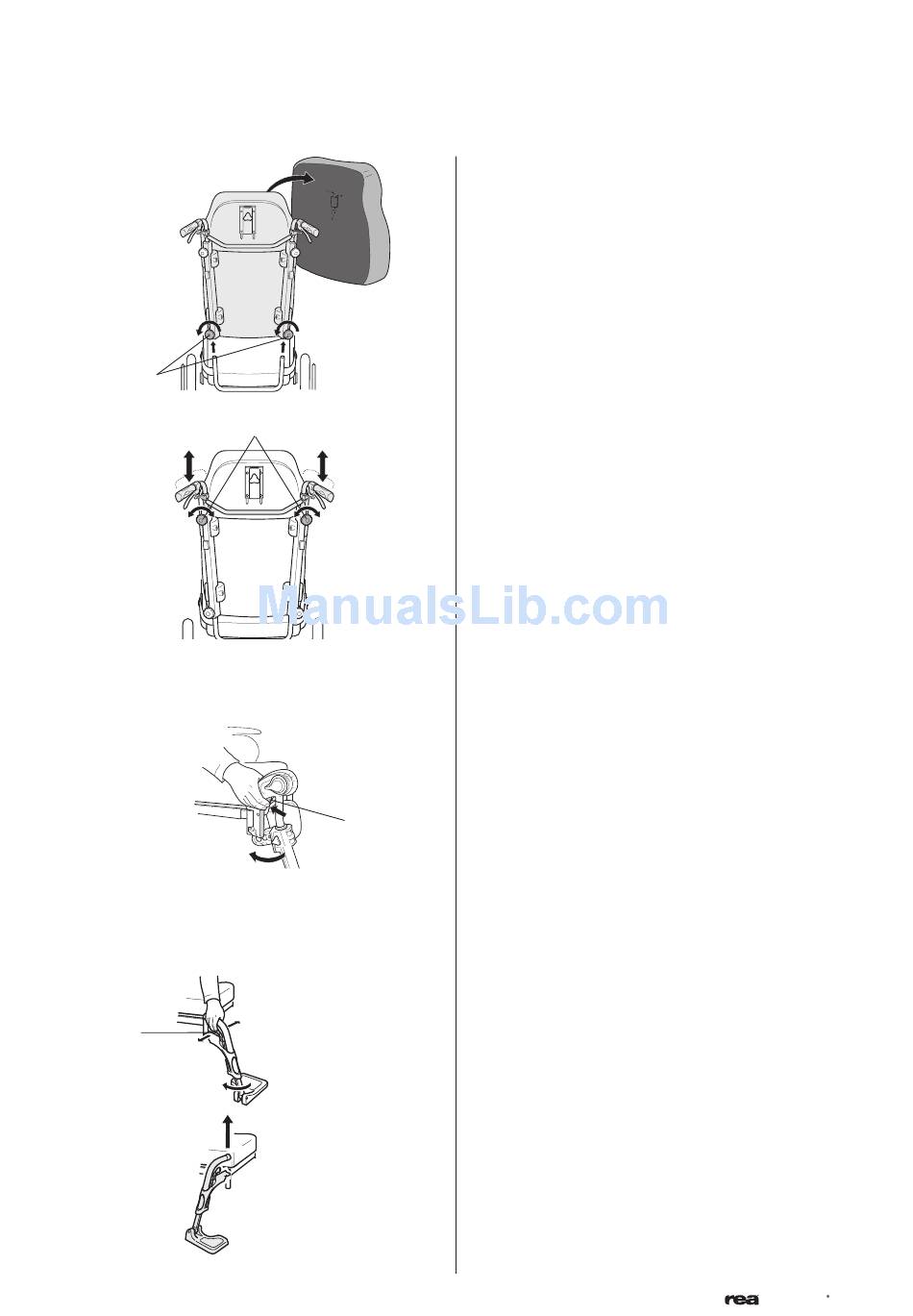

The Rea ® Azalea is easy to prepare for transport.
1. Backrest
Remove the backrest cushion by pulling it for-
wards, thus separating the Velcro straps.
Loosen both knobs (A) and pull the backrest
directly upwards. Lay the backrest on the seat,
where it can remain during transport of the
wheelchair. Where applicable, detach the push
handles. Be careful with the cables that run from
the rear wheel to the push handles.
When detaching the backrest and placing it on
the seat, try to make sure that the cables hang
freely.
2. Push handles braced.
Loosen the two knobs (B). The height of the han-
dles can be adjusted simply by pulling the handles
upwards or pushing them downwards.
.
3. Legrests
The legrests are loosened by pushing the lever (C)
forwards whilst turning the legrests outwards. You
can then simply lift off the legrests.
4. Footrests
The footrests are loosened by pushing the handle
(D) forwards or sidewards whilst turning the
footrests outwards. You can then simply lift off
the footrests.
