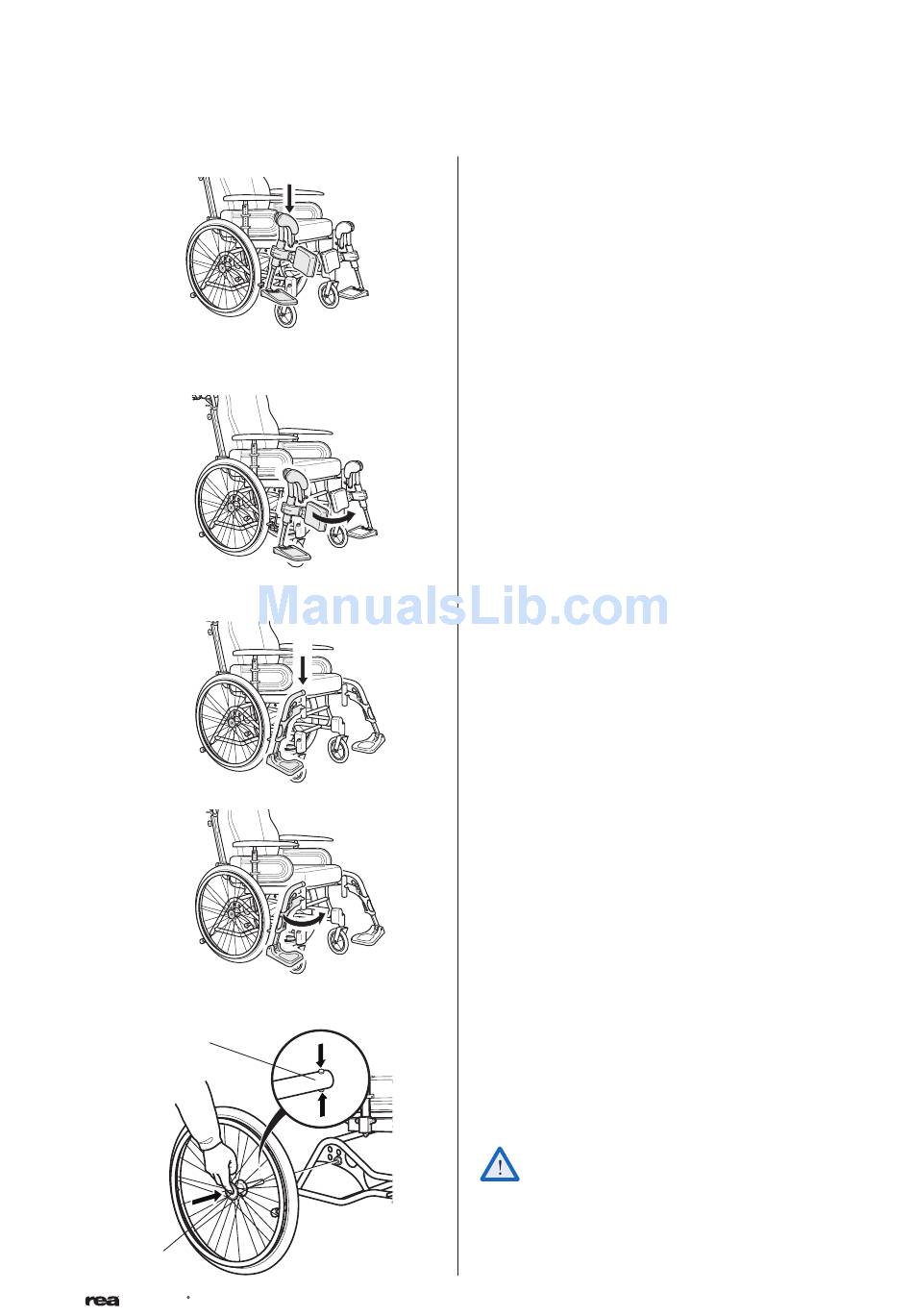

Legrests/footrests
The wheelchair can be equipped with either angle
adjustable legrests or fixed footrests.
3a. Legrests angle adjustable
Attach the legrests by pushing the tube at the
upper part of the legrests down into the tubes
on the wheelchair. You must angle the legrests
outwards when inserting them.
Lock the legrests by turning them inwards. The
legrests are automatically locked so there is no
risk of them coming off the wheelchair.
3b. Legrests fixed
Attach the footrests by pushing the tube at the
upper part of the footrests down into the tubes
on the wheelchair. You must angle the footrests
outwards when inserting them.
Lock the legrests by turning them inwards. The
legrests are automatically locked so there is no
risk of them coming off the wheelchair.
4. Rear wheels
Attach the rear wheels by pressing button (A)
in the centre of the hub whilst simultaneously
sliding the axle (B) into the rear wheel position
attachment of the positioning plate.
It is very important that you check that the
locking pin has actually locked the wheel into
position when the centre button has been
released. Take hold of the wheels and try to
detach them. This should NOT be possible.
