SLIDING SEAT (ACCESSORy)
A
ANGLE ADjUSTABLE LEGRESTS

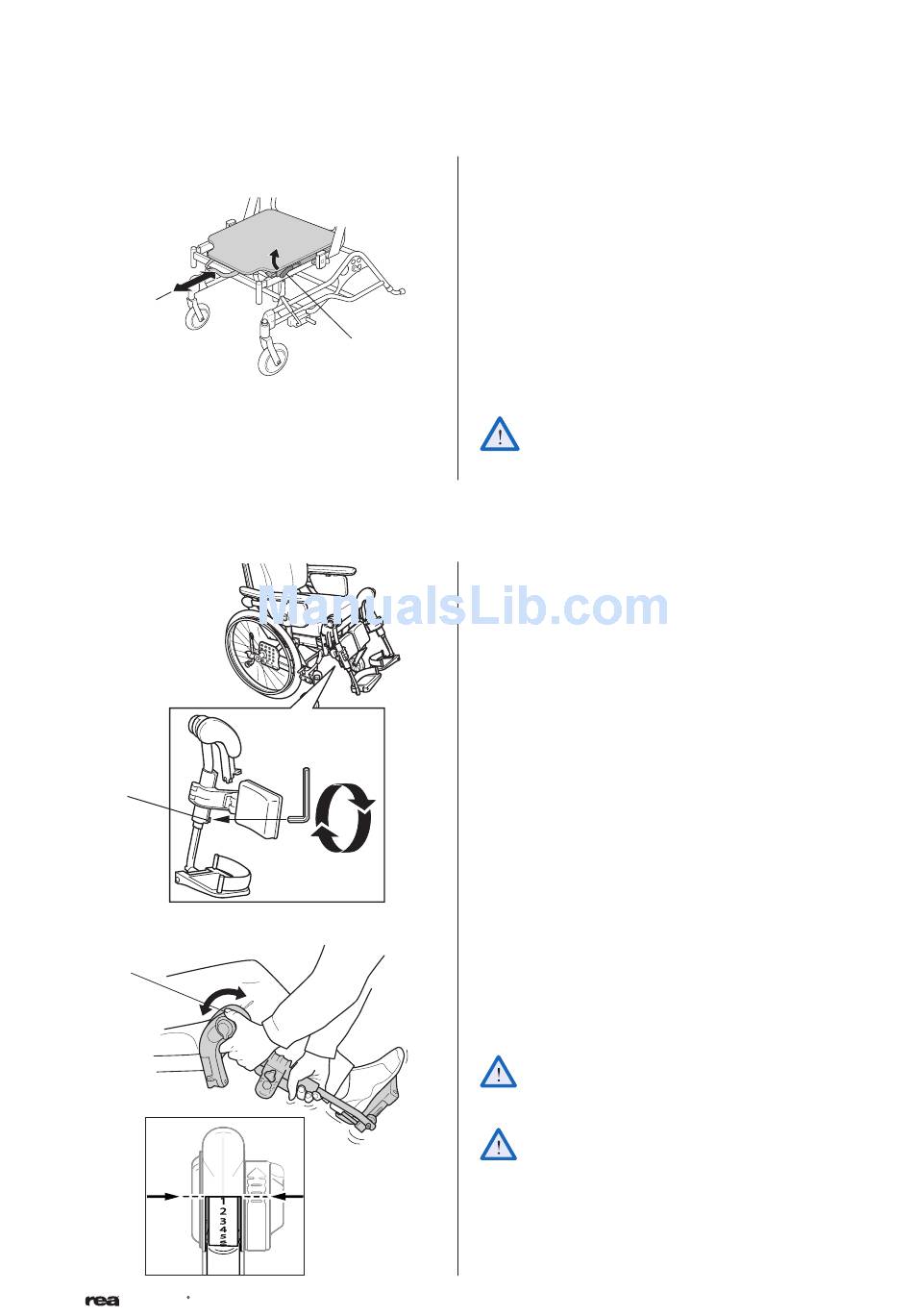

The sliding seat is a great help to the user when
moving into or out of the chair. The user must sit in
the chair when the seat is moved forwards. Pull the
lever (A) upwards at the same time as you pull the
handle (B) and move the seat forwards.
Remember that the sliding seat increases the seat
height by about 3,5 cm. Please observe that the slid-
ing seat is not compatible with the Tall-kit for long
users.
When you adjust the seat only use the handle.
The tip risk increases when the seat is slided
forward.
Angle adjustable legrests support the legs and reduce
pressure. The legrests can be used for bandaged legs,
but not for legs in plaster casts. The legrests must
always be fitted with calf pads, footplates and heel
straps.
It is important to adjust the height and angle of the
legrests to obtain a good seating position.
1. Height adjustment
Loosen screw (A) with an Allen key. Adjust the
legrest into a suitable height and the screw is
caught by one of the recesses on the legrest tube.
Then retighten the screw.
2. Angle adjustment
Pull the lever (B) with one hand while support-
ing the legrest with your other hand. When a
suitable angle is obtained, let go of the lever and
the legrest will look into one of seven preset
positions (C).
Do not place anything heavy, or let children
sit on the legrest. It may cause damage to the
mechanism.
The distance between the lowest part of
the footrest and the ground must be at least
40 mm.
