Applications

4.3 NFPA 72 Central or Remote Station Fire Alarm System

(Protected Premises Unit)

The figure below shows typical wiring diagram for a NFPA 72-1999 Central Station Fire Alarm

System (Protected Premises Unit) or a Remote Station Fire Alarm System (Protected Premises

Unit) using the Universal Digital Alarm Communicator/Transmitter (UDACT) and IFC-3030.

Connect and program the UDACT according to the directions given in The UDACT Instruction

Manual.

NOTE: An NFPA 72-1999 Central Station requires 24 hours of standby power; an NFPA 72-1999

Remote Station requires 60 hours of standby power.

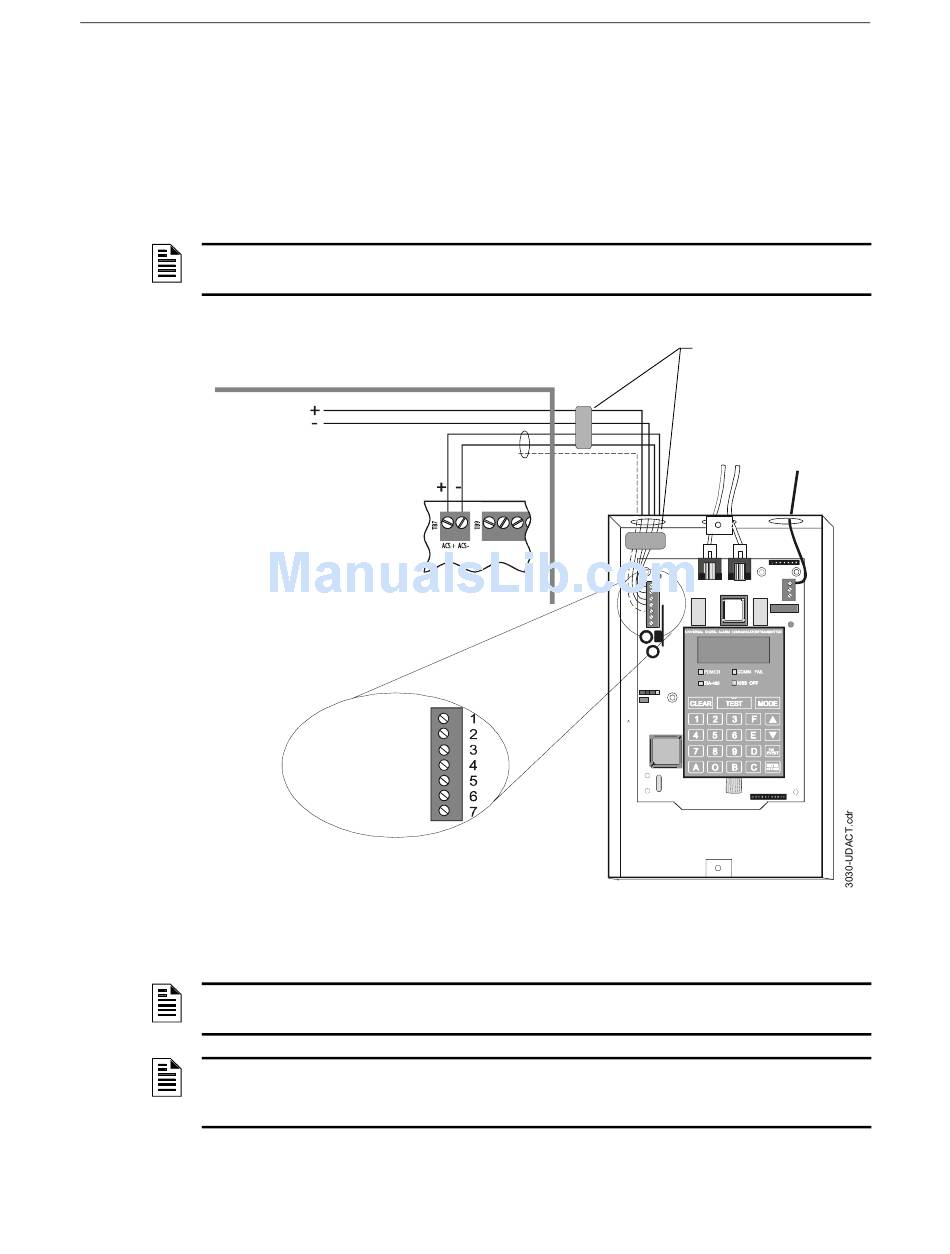

Typical wiring of a UDACT with IFC-3030:

+24 VDC

non-resettable

power from main

or auxiliary power

supply

Supervised and power-limited

EIA-485 and power wiring

NOTE: Install a 120 ohm End-of-Line resistor

(P/N 71244) UDACT TB1 terminals 3 and 4 if

last or only device on EIA-485 line.

Figure 4.2 Typical Wiring Diagram for a Central Station Fire Alarm System

NOTE: This application can also be done with the TM-4 Transmitter; refer to the TM-4

Transmitter Module manual for more details.

NOTE: The following models do not comply with requirements for AC loss delay reporting and

must be used with Central Station Protected Premises systems: AA-30, AA-120, AA-100,

APS-6R, CHG-120.
