Installation
3.9.1 Power Supply Connections
Figure 3.14 illustrates typical connections from the main power supply. Figure 3.15 shows location
of those connections on the bottom of the ICM-4RK and the ICE-4 modules.
Power Harness (71093)
Black wire (–), Blue wire (+)
Note: Lugs must be removed and wires stripped
for connection to the power source.
NOTE: For limitations on the total current available for any group of Notification Appliance
Circuits (NACs), see Section 3.13 "Notification Appliance Circuit Current Limitations" on page 36,
as well as the manual for your system's power supply.
NOTE: ICM-4RK could be connected to a compatible UL/ULC-listed +24V auxiliary power
supply instead (such as APS-6R). Refer to the manual for your auxiliary power supply for
equivalent connections. If an auxiliary power supply is used, maximum current per circuit is 3
Amps, total output limited to the maximum rating of the supply.
b
WARNING:
!
Auxiliary power supply connections to ICM-4RK/ICE-4 must come from a power supply whose
battery terminals are tied back to those on the main power supply. Failure to do so will cause panel
circuit trouble at the control panel and possible equipment damage.
32

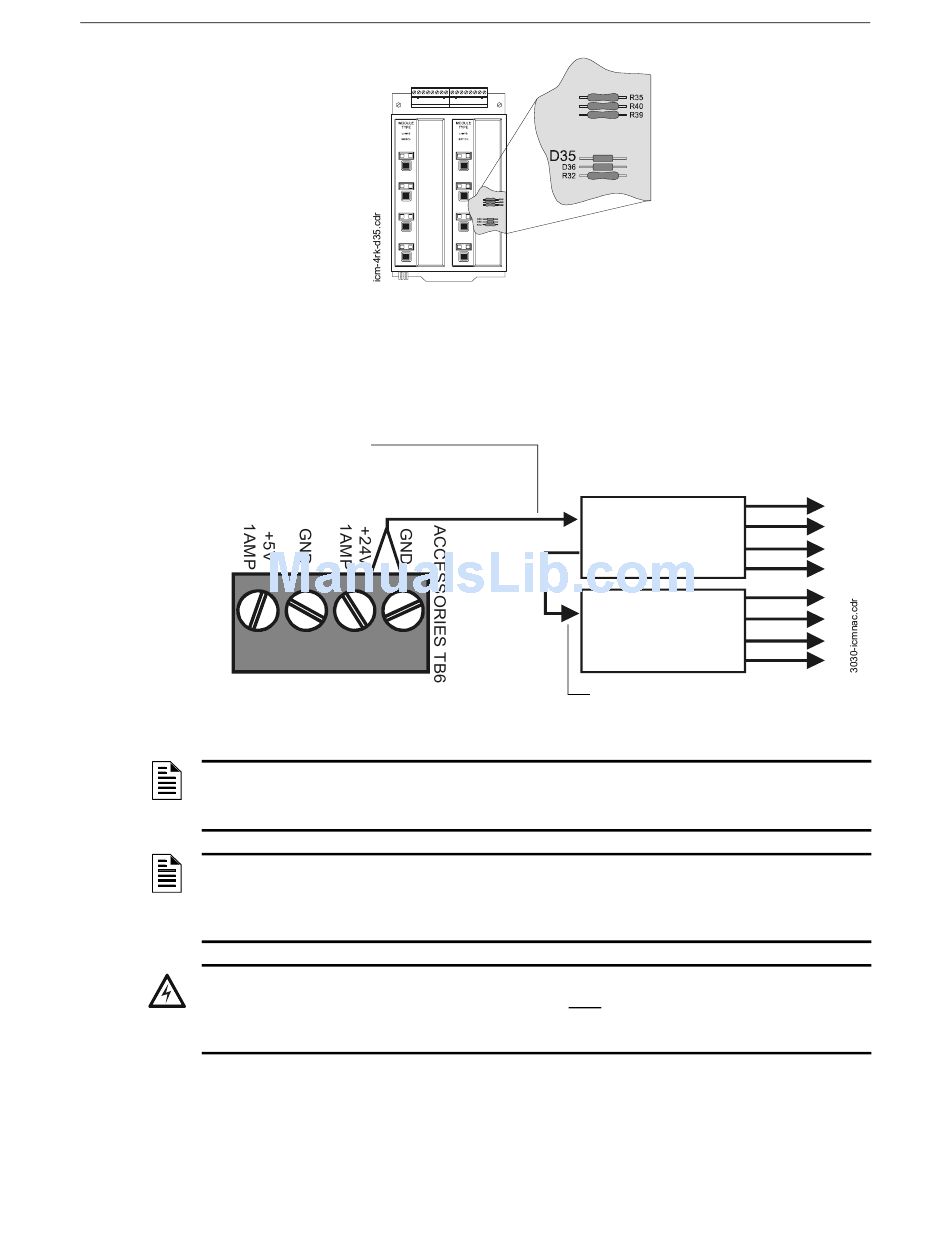

Figure 3.13 Location of D35 on ICM-4RK Circuit Board
AMPS-24/E
Figure 3.14 ICM-4RK/ICE-4 Main Power Supply Connection
Cut D35 on the circuit board to
produce California code.
Eight NACs that share up to 1 A.
See note below.
J5
ICM-4RK
J6
J5
ICE-4
Power Cable P/N 71091
IFC-3030 Installation Manual — P/N 52024:C 08/05/2005
⁄
NACs with ICM-4RK ICE-4
