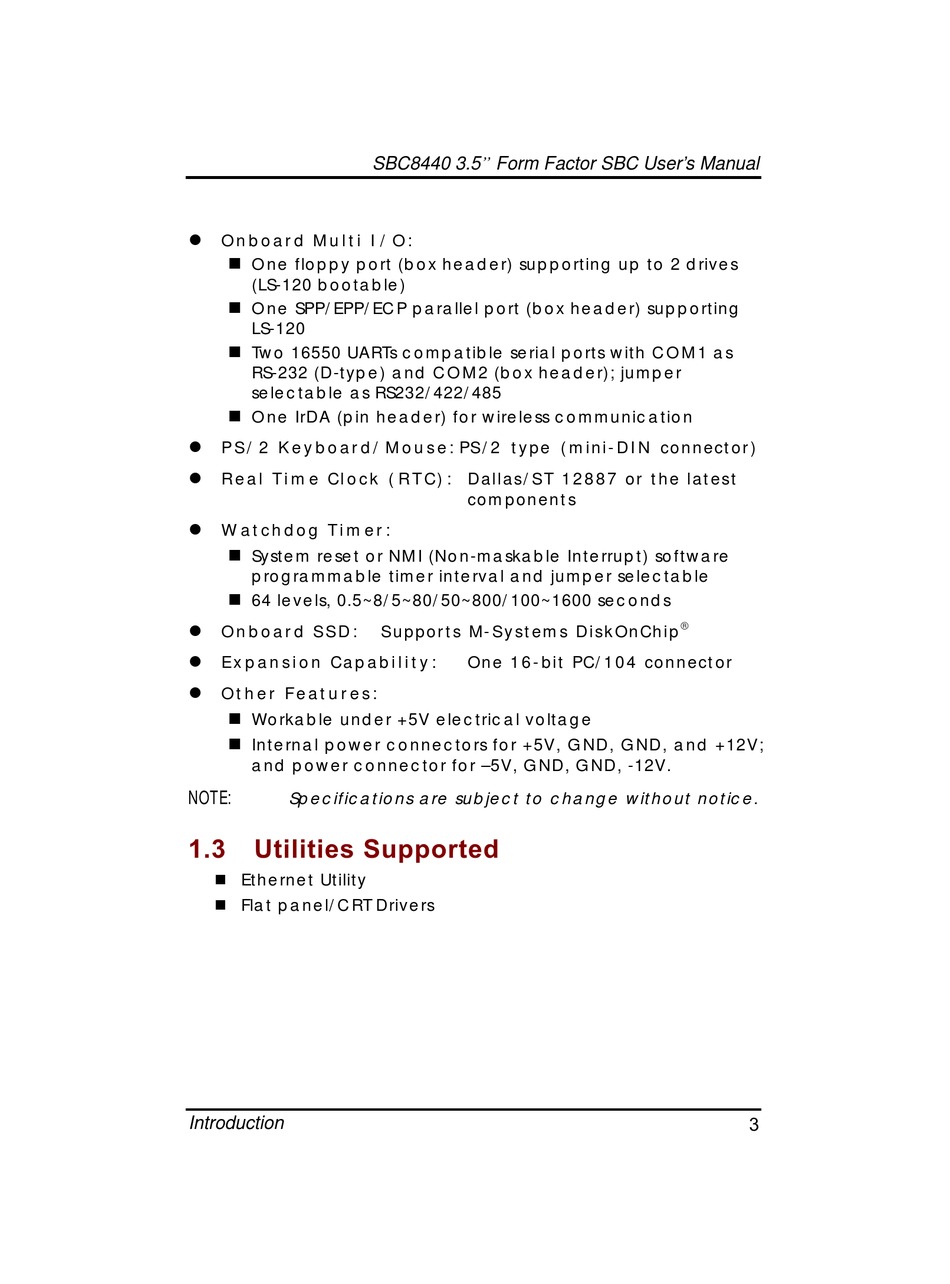

AXIOMTEK SBC8440 User Manual page 9

!" Onboard Multi I/O:
#" One floppy port (box header) supporting up to 2 drives
(LS-120 bootable)
#" One SPP/EPP/ECP parallel port (box header) supporting
LS-120
#" Two 16550 UARTs compatible serial ports with COM1 as
RS-232 (D-type) and COM2 (box header); jumper
selectable as RS232/422/485
#" One IrDA (pin header) for wireless communication
!" PS/2 Keyboard/Mouse: PS/2 type (mini-DIN connector)
!" Real Time Clock (RTC): Dallas/ST 12887 or the latest
Watchdog Timer:
!"
System reset or NMI (Non-maskable Interrupt) software
#"
programmable timer interval and jumper selectable
#" 64 levels, 0.5~8/5~80/50~800/100~1600 seconds
!" Onboard SSD:
!" Expansion Capability:
!" Other Features:
#" Workable under +5V electrical voltage
#" Internal power connectors for +5V, GND, GND, and +12V;
and power connector for –5V, GND, GND, -12V.
NOTE:
Specifications are subject to change without notice.
"
 !   $$
#" Ethernet Utility
#" Flat panel/CRT Drivers
Introduction
SBC8440 3.5
Form Factor SBC User's Manual
components
Supports M-Systems DiskOnChip
One 16-bit PC/104 connector

