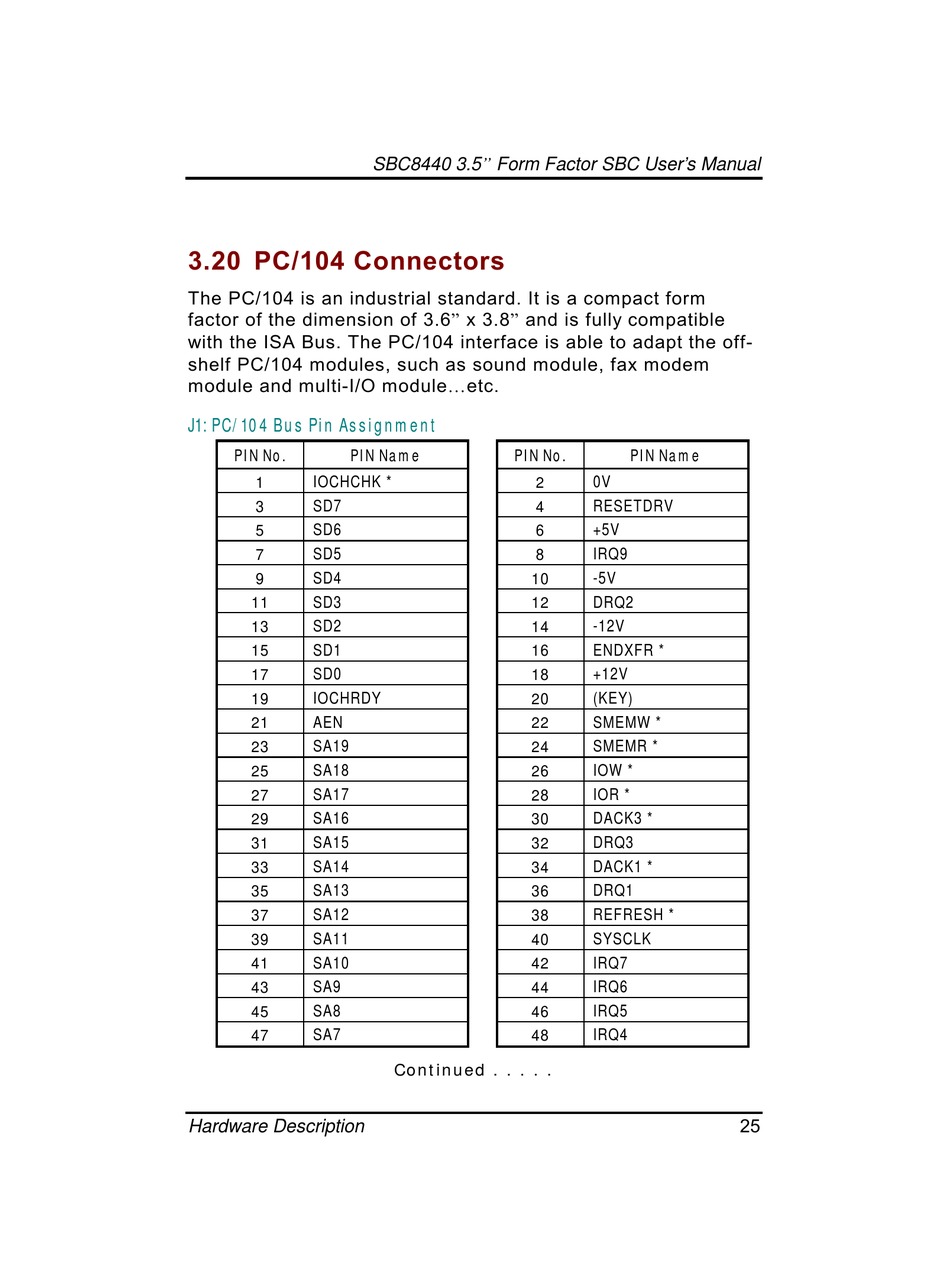

J1: PC/104 Bus Pin Assignment
PIN No. PIN Name
IOCHCHK *
1
SD7
3
SD6
5
SD5
7
SD4
9
SD3
11
SD2
13
SD1
15
SD0
17
IOCHRDY
19
AEN
21
SA19
23
SA18
25
SA17
27
SA16
29
SA15
31
SA14
33
SA13
35
SA12
37
SA11
39
SA10
41
SA9
43
SA8
45
SA7
47
Hardware Description
SBC8440 3.5
Form Factor SBC User's Manual
PIN No.
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
Continued . . . . .
PIN Name
0V
RESETDRV
+5V
IRQ9
-5V
DRQ2
-12V
ENDXFR *
+12V
(KEY)
SMEMW *
SMEMR *
IOW *
IOR *
DACK3 *
DRQ3
DACK1 *
DRQ1
REFRESH *
SYSCLK
IRQ7
IRQ6
IRQ5
IRQ4
1)
