2.6.6 CPU Fan Connector

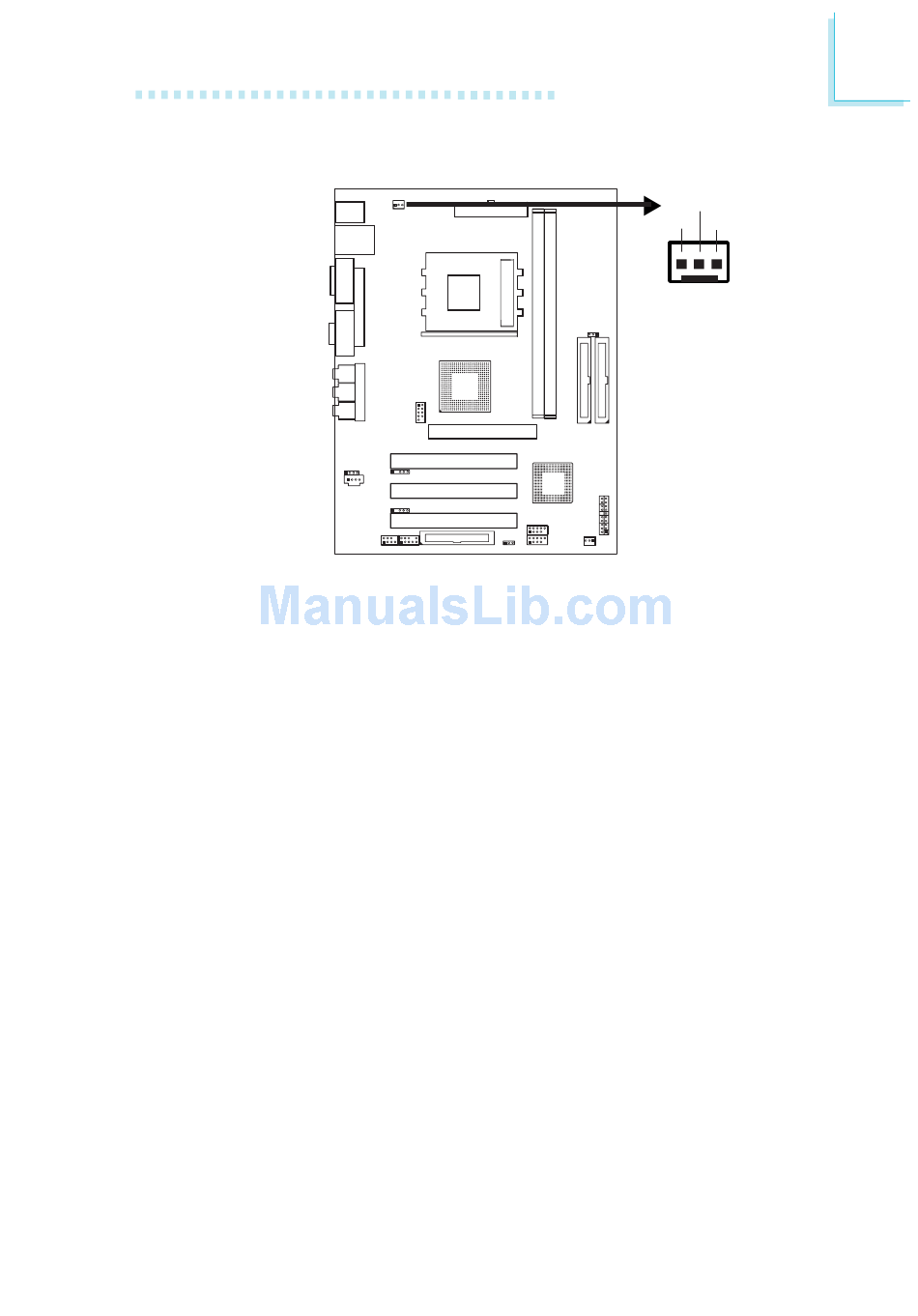

The CPU must be kept cool by using a fan with heatsink. Connect
the CPU fan to the 3-pin fan connector at location J9 of the system
board. The system is capable of monitoring the speed of the CPU
fan.
BIOS Setting
The "PC Health Status" submenu of the BIOS will display the cur-
rent speed of the CPU fan. Refer to chapter 3 for more informa-
tion.
Hardware Installation
10
8 2
7 9
1
+12V
On
Sense
1 3
2
43
