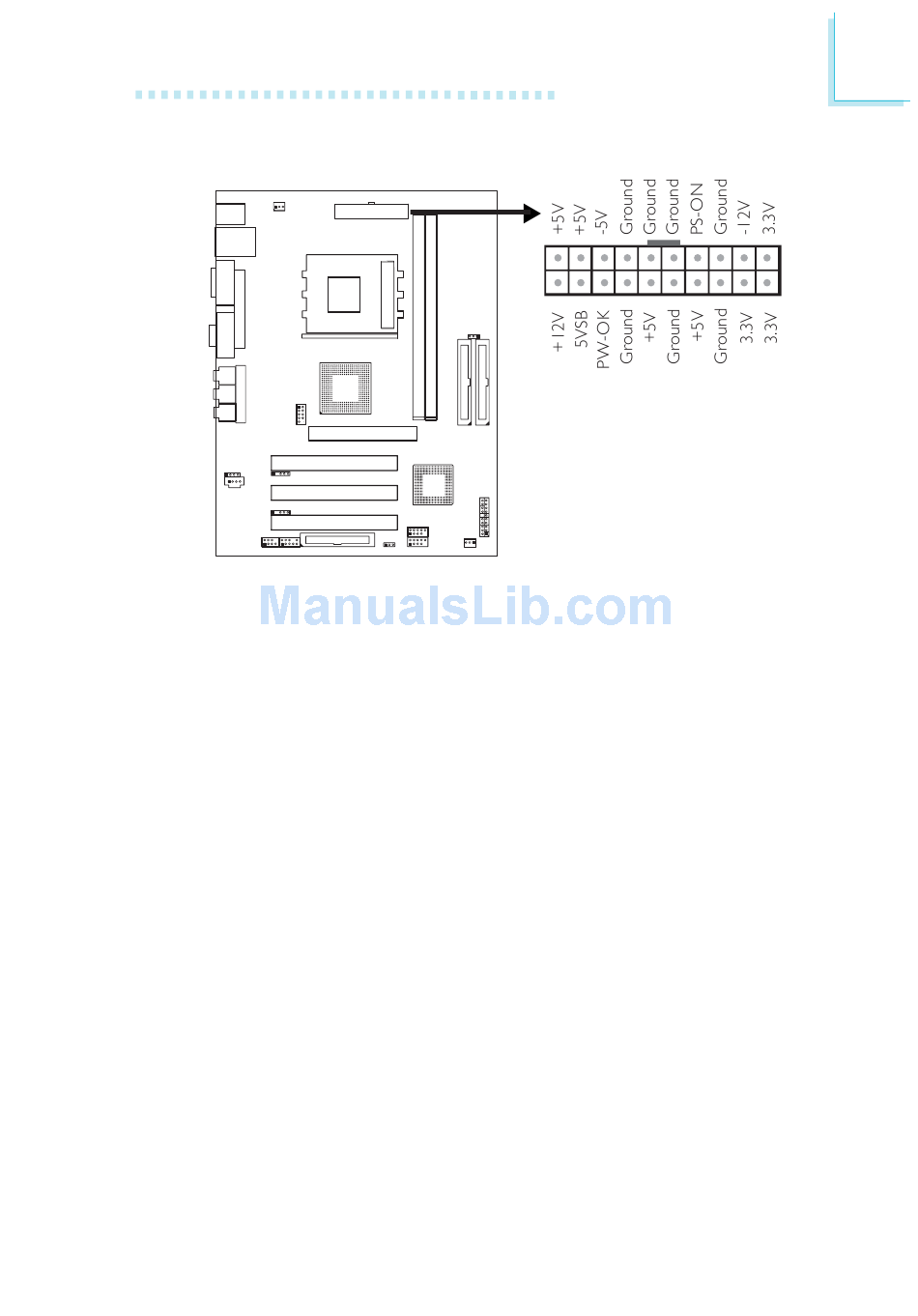

2.6.8 Power Connectors

10
8 2
7 9
1
We recommend that you use a power supply that complies with
the ATX12V Power Supply Design Guide Version 1.1. An ATX12V
power supply has a standard 20-pin ATX main power connector
that must be inserted onto the CN7 connector.
The system board requires a minimum of 250 Watt power supply
to operate. Your system configuration (amount of memory, add-in
cards, peripherals, etc.) may exceed the minimum power require-
ment. To ensure that adequate power is provided, use a 300 Watt
(or greater) power supply.
Hardware Installation
20
10
2
11
1
45
