DFI AZ30-TC User Manual page 34

2
Hardware Installation

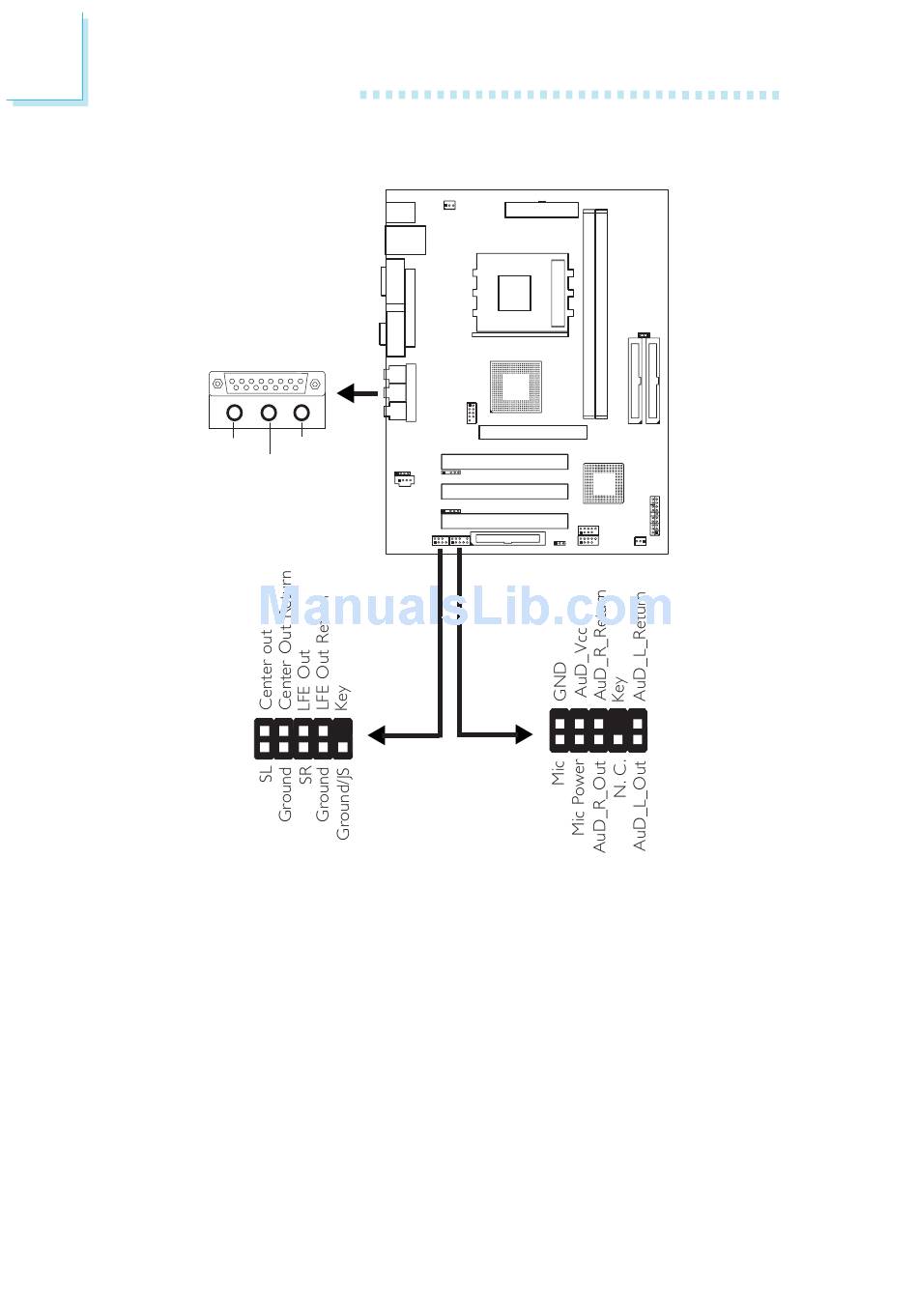

2.5.8 Audio (Audio Jacks, 4-Channel Audio and Front Audio)
Audio Jacks
The system board is equipped with 3 audio jacks. A jack is a one-
hole connecting interface for inserting a plug.
•
Line-out Jack (Lime)
This jack is used to connect external speakers for audio output
from the system board. Using this jack disables the front audio's
line-out function.
34
Line-out Mic-in
Line-in
2
1
9
8 2 10
7 1 9
Front
4CH
audio
audio
2
1
10
9
