DFI AZ30-TC User Manual page 26

2
Hardware Installation
2.5.1 PS/2 Mouse and PS/2 Keyboard Ports

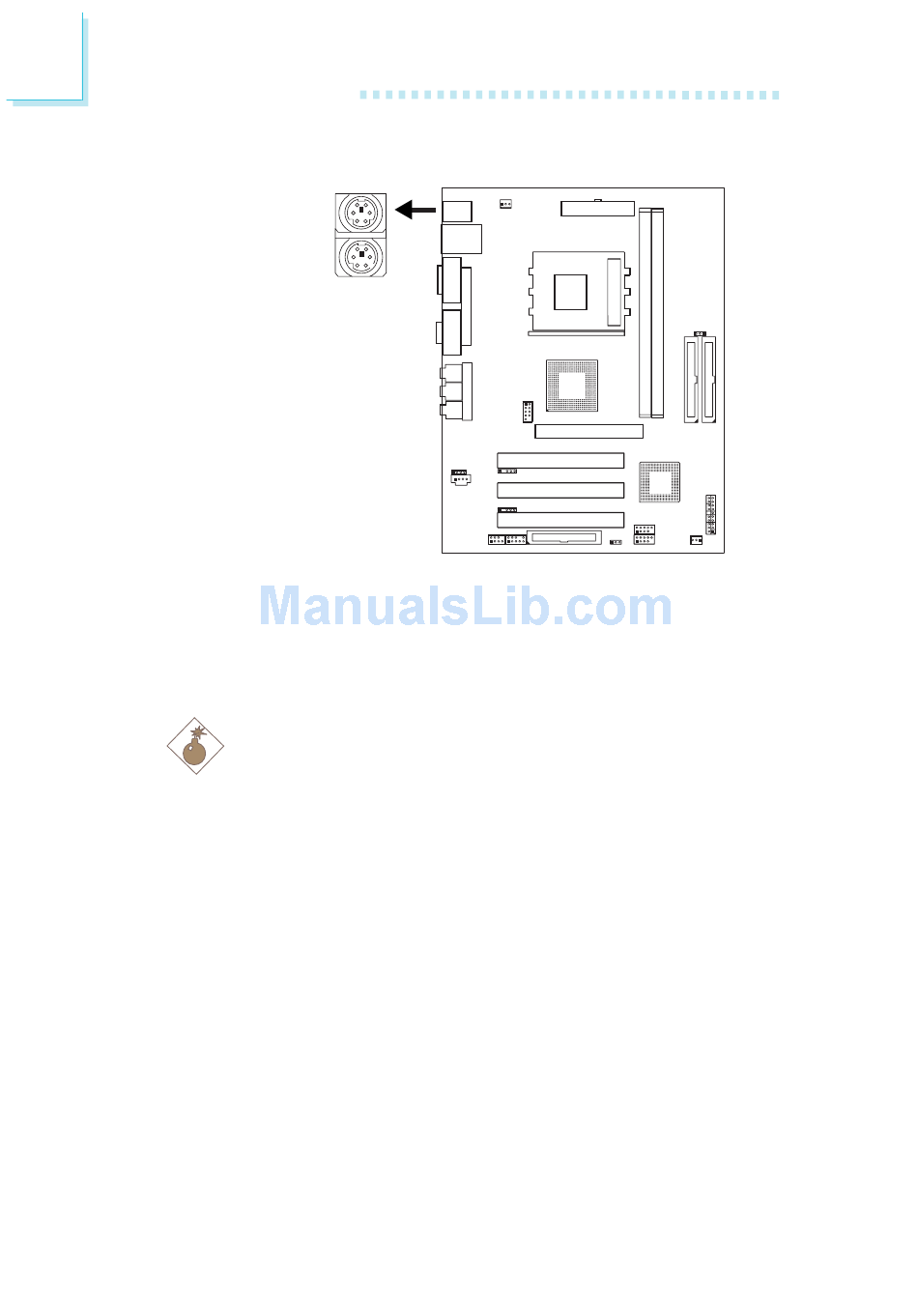

The system board is equipped with an onboard PS/2 mouse
(Green) and PS/2 keyboard (Purple) ports. The PS/2 mouse port
uses IRQ12. If a mouse is not connected to this port, the system
will reserve IRQ12 for other expansion cards.
.
.
.
.
.
.
Wake-On-Keyboard/Mouse
The Wake-On-Keyboard/Mouse function allows you to use the key-
board or mouse to power-on the system. To use this function:
•
BIOS Setting:
Refer to "PS2KB Wakeup Select" ("Wake Up Events" section) in
the Power Management Setup submenu of the BIOS for the
BIOS settings of this function. Refer to chapter 3 for more infor-
mation.
26
PS/2 Mouse
PS/2 Keyboard
Warning:
.
.
Make sure to turn off your computer prior to connecting or
disconnecting a mouse or keyboard. Failure to do so may dam-
age the system board.
8 2 10
7 1 9
