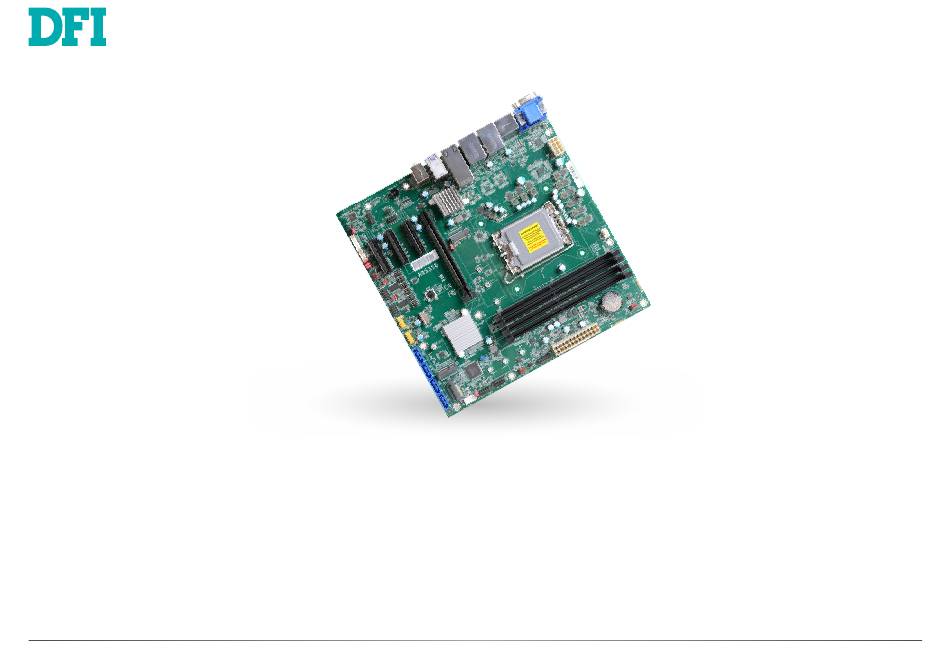

- Page 1 ADS310-R680E/Q670E microATX Industrial Motherboard User’s Manual...
- Page 2 1. The changes or modifications not expressly approved by the party responsible for com- are the properties of the respective owners. pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | ADS310-R680E/Q670E...
-
Page 3: Table Of Contents
Chapter 3 - BIOS Settings ......................32 Overview ..........................32 Main ............................33 Advanced ..........................33 CPU Configuration ......................34 Power & Performance ....................34 PCH-FW Configuration ....................40 Trusted Computing ......................41 NCT6126D Super IO Configuration ................42 NCT6126D HW Monitor ....................43 Serial Port Console Redirection ...................44 User's Manual | ADS310-R680E/Q670E... - Page 4 • To reduce the risk of electric shock, unplug the power cord before removing the sys- tem chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. User's Manual | ADS310-R680E/Q670E...
- Page 5 User's Manual | ADS310-R680E/Q670E DFI reserves the right to change the specifications at any time prior to the product's release. Changes thereafter will be based on the product's revision. Please contact your www.dfi.com...
-
Page 6: Chapter 1 - Introduction
1 x VGA Audio 1 x Line-out 1 x Line-in (opt. by request, MOQ required) 1 x Mic-in User's Manual | ADS310-R680E/Q670E INTERNAL I/O Serial 2 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 2 x USB 3.2 Gen2 Key B box header... - Page 7 770-ADS3101-100G 4 UDIMM 4 24-pin ATX/8-pin ATX 12V Active -5 to 65°C OPTIONAL ITEMS PACKING LIST User's Manual | ADS310-R680E/Q670E 1 ADS310-R680E/Q670E motherboard USB 2.0 port cable (Length: 350/398mm) A81-001066-016G 1 COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G USB 3.2 Gen2 port cable (Length: 350mm)
-
Page 8: Features
Plug and Play peripherals. RTC Timer The Real Time Clock (RTC) installed on the system board allows your system to automatically power-on on the set date and time. User's Manual | ADS310-R680E/Q670E... -
Page 9: Block Diagram
SATA 3.0 SATA 4x S/PDIF Front Audio Realtek SPI BIOS Audio Jack ALC888 SMBus (Line-out/Mic-in/Line-in (opt.)) TCA6408A DIO 8-bit SMBus eSPI Super IO with WDT RS232/422/485 2x Fan Control H/W Monitor Case Open MECHANICAL DRAWING User's Manual | ADS310-R680E/Q670E 159,84... -
Page 10: Chapter 2 - Hardware Installation
PCIE3 (PCIe x4) USB3_5/6 USB2_5/6 TSJP2 JP32 M.2 M Key TSJP7 TSJP4 Front Audio TSJP8 M2CN3 PCIE4 (PCIe x4) M.2 E Key 2230 TSJP6 TSJP3 M2CN2 TSJP1 TSJP5 JP25 JP29/30/28 S/PDIF SYS_FAN1 COM2 COM1 USB2_13 Power USB2_11/12 SATA0(R4)/SATA1(R5)/SATA2(R6)/SATA3(R7) User's Manual | ADS310-R680E/Q670E... -
Page 11: System Memory
Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate. Features • Four 288-pin UDIMM up to 128GB • Dual Channel DDR4 3200MHz (ECC support: R680E only) User's Manual | ADS310-R680E/Q670E... -
Page 12: Removing The Dimm Module
Hold the card by its edges and remove it from the slot. The tabs snap automatically to the edges of the card and lock the card in place. Step 1 Step 1 Step 2 Step 2 Step 3 Step 3 User's Manual | ADS310-R680E/Q670E... -
Page 13: Cpu
Align the 4 screw holes and tighten the heat sink up by inserting screws, DO remember to con- nect the fan cable on the board. (The location of fan connector may vary.) There are 4 screw holes around the CPU for the heat sink to be mounted. User's Manual | ADS310-R680E/Q670E... -
Page 14: Jumper Settings
2. Put a jumper cap on pin 2 and pin 3. Wait for a few seconds and set it back to its de- fault setting, i.e. jumper cap on pin 1 and pin 2. 3. Plug the power cord and power-on the system. „ 1-2 On: Normal (default) „ 2-3 On: Clear CMOS Data User's Manual | ADS310-R680E/Q670E... -
Page 15: Dio Power & Voltage - Jp28/29/30
JP28 „ 1-2 On: 5VDU (default) „ 2-3 On: 5V „ 1-2 On: „ 2-3 On: Control by BIOS (default) Wake up disable JP29 (DIO0~3) JP30 (DIO4~7) „ 1-2 On: 5V_DIO (default) „ 2-3 On: GND User's Manual | ADS310-R680E/Q670E... -
Page 16: Connector Power Control - Jp31/32
JP31, JP32 are used to control the power of M2CN4 and M2CN3. TSJP1 and TSJP5 are used to determine the power of COM1/COM2. „ 1-2 On: „ 2-3 On: 3V3(default) 3V3DU „ 1-3, 2-4 On: „ 3-5, 4-6 On: RS232 Standard (default) RS232 with Power User's Manual | ADS310-R680E/Q670E... -
Page 17: Selection For Com1 / Com2 - Tsjp4,3,2 / Tsjp8,7,6
„ 3-5, 4-6 On: RS232 (default) RS422 RS485 TSJP4,3,2 and TSJP8,7,6 are used to determine the signal type of COM1/COM2. TSJP2(COM1), TSJP6(COM2) „ 1-3, 4-6 On: „ 3-5, 4-6 On: „ 3-5, 2-4 On: RS232 (default) RS422 RS485 User's Manual | ADS310-R680E/Q670E... -
Page 18: At/Atx Select - Jp26
PCIE4 (PCIe x4) M.2 E Key 2230 TSJP6 TSJP3 M2CN2 TSJP1 TSJP5 JP25 JP29/30/28 S/PDIF SYS_FAN1 COM2 COM1 USB2_13 Power USB2_11/12 SATA0(R4)/SATA1(R5)/SATA2(R6)/SATA3(R7) JP26 switches the AT/ATX mode. „ 1-2 On: „ 2-3 On: AT Mode(default) ATX Mode User's Manual | ADS310-R680E/Q670E... -
Page 19: Rear I/O Ports
• RJ45 LAN 1/2 • 1 HDMI port • 1 VGA port • 10G LAN 3/4 • 4 USB 3.2 Gen 1 ports • 1 Line-in jack (optional) • 1 Line-out jack • 1 Mic-in jack User's Manual | ADS310-R680E/Q670E... -
Page 20: Usb Ports
S3 (STR - Suspend To RAM) state. • 4 x USB 3.2 Gen 1 rear ports (USB 7/8/9/10) • 2 x USB 2.0 internal ports, box headers (USB 11/12) • 1 x USB 2.0 internal ports, (USB 13) User's Manual | ADS310-R680E/Q670E... -
Page 21: Graphics Interfaces
The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable connector to the VGA port. After you plug the monitor’s cable connector into the VGA port, gen- tly tighten the cable screws to hold the connector in place. User's Manual | ADS310-R680E/Q670E... -
Page 22: Lan Ports
Mic-in Jack (Pink) This jack is used to connect an external microphone. Front Audio The front audio connector allows you to connect to the second line-out and mic-in jacks that are at the front panel of your system. User's Manual | ADS310-R680E/Q670E... -
Page 23: Internal I/O Connectors
• 4 Serial ATA 3.0 ports with data transfer rate up to 6Gb/s D_IOA3 • Integrated Advanced Host Controller Interface (AHCI) controller D_IOA4 • Support RAID 0, RAID 1, RAID 5, RAID 10 D_IOA5 D_IOA6 D_IOA7 User's Manual | ADS310-R680E/Q670E... -
Page 24: Cooling Fan Connectors
Insufficient power supplied to the system may result in instability or malfunction of the add-in boards and peripherals. Calculating the system’s approximate power Control usage is important to ensure that the power supply meets the system’s consump- tion requirements. User's Manual | ADS310-R680E/Q670E... -
Page 25: Front Panel
Power On Suspend) state, it will blink at 1-second intervals. When the system is in the S3 (STR - Suspend To RAM) state, it will blink at 4-second intervals. Power Button This button is used to switch the system's power on or off . User's Manual | ADS310-R680E/Q670E... -
Page 26: Com1
COM1 USB2_13 Power Power USB2_11/12 SATA0(R4)/SATA1(R5)/SATA2(R6)/SATA3(R7) USB2_11/12 SATA0(R4)/SATA1(R5)/SATA2(R6)/SATA3(R7) Pin Assignment Pin Assignment Pin Assignment Assignment X_MDCD1- MSIN1- COM X_MDCD2- MSIN2- COM MSO1- COM MDTR1- COM MSO2- COM MDTR2- COM MDSR1- MDSR2- MRTS1- MCTS1- MRTS2- MCTS2- X_MRI1- X_MRI2- User's Manual | ADS310-R680E/Q670E... -
Page 27: Front Audio
COM1 USB2_13 Power Power USB2_11/12 SATA0(R4)/SATA1(R5)/SATA2(R6)/SATA3(R7) USB2_11/12 SATA0(R4)/SATA1(R5)/SATA2(R6)/SATA3(R7) Pin Assignment Pin Assignment Pin Assignment Pin Assignment MIC2-L A_GND LED_SPEED_2500# LED_SPEED_1000# GBE_LED_LINK_ MIC2-R 3V3DU ACT# LED_ LED_ LINE2-R MIC2-JD SPEED_2500#_2 SPEED_1000#_2 GBE_LED_LINK_ A_GND 3V3DU ACT#_2 LINE2-L LINE2-JD User's Manual | ADS310-R680E/Q670E... -
Page 28: Usb 3.2 Gen2 Key B
COM1 USB2_13 Power Power USB2_11/12 SATA0(R4)/SATA1(R5)/SATA2(R6)/SATA3(R7) USB2_11/12 SATA0(R4)/SATA1(R5)/SATA2(R6)/SATA3(R7) Pin Assignment Assignment USB3_TX5_DP USB3_TX6_DN Pin Assignment Assignment USB3_TX5_DN USB3_TX6_DP PS2_KCLK PS2_MCLK PS2_KDAT PS2_MDAT USB3_RX5_DP USB3_RX6_DN USB3_RX5_DN USB3_RX6_DP PS/2 POWER PS/2 POWER USBP_C_5P USBP_C_6P USBP_C_5N USBP_C_6N SBV3 SBV3 User's Manual | ADS310-R680E/Q670E... -
Page 29: Usb 2.0 (Usb2 11/12/13)
„ SMBus „ USB 2.0 11/12 „ USB 2.0 13 Pin Assignment Pin Assignment Pin Assignment Pin Assignment Pin Assignment Pin Assignment 3V3DU SBV6 SBV6 SBV6 SBV6 SMB_CLK SMB_DATA USBP_C_11N USBP_C_12N USBP_C_13N SMB_ALERT- USBP_C_11P USBP_C_12P USBP_C_13P User's Manual | ADS310-R680E/Q670E... -
Page 30: Expansion Slots
Install PCI Express cards such as network cards or other expansion cards M.2 Socket The M.2 socket is the Next Generation Form Factor (NGFF) which is designed to support mul- tiple modules and make the M.2 more suitable in application for solid-state storage. User's Manual | ADS310-R680E/Q670E... -
Page 31: Battery
• There exists explosion hazard if the battery is incorrectly installed. the board when it’s correctly mounted. • Replace only with the same or equivalent type recommended by the manufacturer. • Dispose of used batteries according to local ordinances. User's Manual | ADS310-R680E/Q670E... -
Page 32: Chapter 3 - Bios Settings
“Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously. User's Manual | ADS310-R680E/Q670E... -
Page 33: Main
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | ADS310-R680E/Q670E... -
Page 34: Cpu Configuration
Some of the fields may not be available when the features are not supported by C states the equipped CPU. Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and nothing is executing. User's Manual | ADS310-R680E/Q670E... - Page 35 PSYS PMax power, defined in 1/8 Watt increments. Range 0-8191. For a PMax of 125W, enter 1000. 0 = AUTO. Uses BIOS VR mailbox command OxB. Min Voltage Override Min Voltage override. Enable to override minimum voltage for runtime and for C8. User's Manual | ADS310-R680E/Q670E...
- Page 36 Chapter 3 BIOS SETTINGS Advanced Acoustic Noise Settings Power and Performance Slow Slew Rate for IA Domain Set VR IA Slow Slew Rate for Deep Package C State ramp time; Slow slew rate equals to Fast Aptio Setup - AMI divided by number, the number is 2, 4, 8, 16 to slow down the slew rate to help minimize acous- Advanced tic noise...
- Page 37 PS3/4 Enable/Disable. 0 - Disabled, 1 - Enabled. Uses BIOS VR mailbox command 0x3 IMON Slope IMON Slope defined in 1/100 increments. Range is 0-200. For a 1.25 slope, enter 125. 0 = AUTO. Uses BIOS VR mailbox command 0X4. User's Manual | ADS310-R680E/Q670E...
- Page 38 PS3/4 Enable/Disable. 0 - Disabled, 1 - Enabled. Uses BIOS VR mailbox command 0x3 IMON Slope IMON Slope defined in 1/100 increments. Range is 0-200. For a 1.25 slope, enter 125. 0 = AUTO. Uses BIOS VR mailbox command 0X4. User's Manual | ADS310-R680E/Q670E...
- Page 39 Version 2.22.1284. Copyright (C) 2022 AMI RFI Frequency Set desired RFI frequency, in increments of 100KHz. (For a frequency of 100.6MHz, enter 1006.) FIVR Spread Spectrum Enable or Disable the FIVR Spread Spectrum RFI Spread Spectrum Set the Spread Spectrum User's Manual | ADS310-R680E/Q670E...
-
Page 40: Pch-Fw Configuration
When disabled, AMT BIOS features are no longer supported and user is no longer able to ac- cess MEBx Setup. This option does not disable manageability features in FW. ME Unconfig on RTC Clear When disabled, ME will not be unconfigured on RTC Clear. Firmware Update Configuration ► Configurate firmware update. User's Manual | ADS310-R680E/Q670E... -
Page 41: Trusted Computing
ESC: Exit Version 2.22.1284. Copyright (C) 2022 AMI Security Device Support This field is used to enable or disable BIOS support for the security device such as an TPM 2.0 to achieve hardware-level security via cryptographic keys. User's Manual | ADS310-R680E/Q670E... -
Page 42: Nct6126D Super Io Configuration
The sub-menus are detailed in following sections. Enable or disable the current serial COM port. RS485 Auto Flow Enable or disable RS485 auto flow. This field is only available for COM ports that support RS485 mode. User's Manual | ADS310-R680E/Q670E... -
Page 43: Nct6126D Hw Monitor
Fix Fan Speed Count Set the fan speed, the value ranging from 1-100%, 100% being full speed. The fans will al- ways operate at the specified speed regardless of gauged temperatures. Case Open Enable or diasble case open detection. User's Manual | ADS310-R680E/Q670E... -
Page 44: Serial Port Console Redirection
Select parity bits: None, Even, Odd, Mark or Space. Stop Bits Select stop bits: 1 bit or 2 bits. Flow Control Select flow control type: None or Hardware RTS/CTS. VT-UTF8 Combo Key Support Enable or disable VT-UTF8 Combination Key Support for ANSI/VT100 terminals. User's Manual | ADS310-R680E/Q670E... -
Page 45: Acpi Steeings
The system automatically powers on after power failure. S5 State The system enter soft-off state after power failure. Power-on signal input is required to power up the system. Last State The system returns to the last state right before power failure. User's Manual | ADS310-R680E/Q670E... -
Page 46: Usb Configuration
Maximum time the device will take before it properly reports itself to the Host Controller. 'Auto' uses default value: for a Root port it is 100 ms, for a Hub port the delat is taken from Hub descriptor. User's Manual | ADS310-R680E/Q670E... -
Page 47: Network Stack Configuration
Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | ADS310-R680E/Q670E... -
Page 48: Usb Power Control
Server CA Configuration ► Switch USB Power between 5V_Dual and 5V. • Enroll Cert Press <Enter> to enroll cert. • Delete Cert Press <Enter> to delete cert. Client Cert Configuration ► Press <Enter> to configure Client Cert Configuration. User's Manual | ADS310-R680E/Q670E... -
Page 49: Intel(R) Ehternet Controller X550
Enables power on of the system via LAN. Note that configuring Wake on LAN in the op- eration system does not change the value of this setting, but does override the behavior of Wake on LAN is OS controlled power states. Blink LEDs Blink LEDs for a duration up to 15 seconds. User's Manual | ADS310-R680E/Q670E... -
Page 50: Chipset
Version 2.22.1284. Copyright (C) 2022 AMI Please select a submenu and press Enter. The submenus are detailed in the following pages. VMD setup menu ► VMD Configuration settings. PCI Express Configuration ► PCI Express Configuration settings. VT-d Disable or enable VT-d. User's Manual | ADS310-R680E/Q670E... - Page 51 Intel Rapid Recovery Technology Enable or disable Intel Rapid Recovery Technology. RRT volumes can span internal and eSATA drives Enable or disable RRT volumes can span internal and eSATA drives. Intel(R) Optane(TM) Memory Enable or disable Intel(R) Optane(TM) Memory. User's Manual | ADS310-R680E/Q670E...
-
Page 52: Sata Configuration
Enable or disable this field to detect non-compliance PCIe devices in the PEG. This field may not appear when the port does not support Non-compliant device detection. SATA Configuration ► See next page. HD Audio Configuration ► Enable or disable HD Audio. User's Manual | ADS310-R680E/Q670E... -
Page 53: Security
Administrator Password will be required when entering the BIOS. User Password Set the user password. To clear the password, input nothing and press enter when a new pass- word is asked. User Password will be required when powering up the system. User's Manual | ADS310-R680E/Q670E... -
Page 54: Boot
Select this option to save BIOS configuration settings to a USB flash device. ► Restore Setting from file This field will appear only when a USB flash device is detected. Select this field to restore set- ting from the USB flash device. User's Manual | ADS310-R680E/Q670E... -
Page 55: Updating The Bios
When the BIOS IC needs to be replaced, you have to populate it properly onto the system board after the EEPROM programmer has been burned and follow the technical person's instructions to confirm that the MAC address should be burned or not. User's Manual | ADS310-R680E/Q670E...
