Irda Connector - DFI AZ30-TC User Manual

2
Hardware Installation

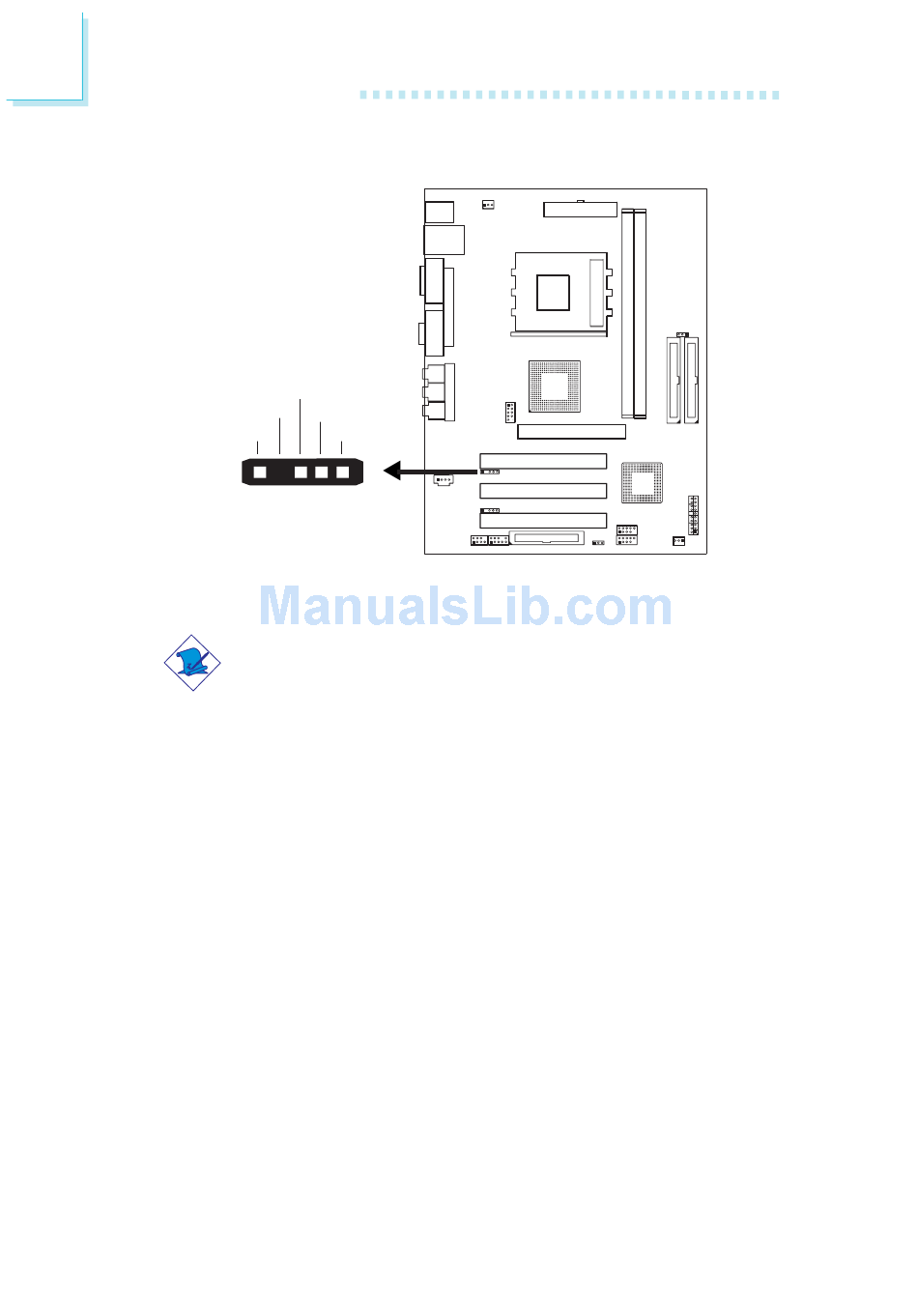

2.6.5 IrDA Connector

Connect your IrDA cable to connector J6 on the system board.
BIOS Setting
Set "UART Mode Select" ("Super IO Device" section) in the Inte-
grated Peripherals submenu of the BIOS to the type of IrDA stand-
ard supported by your device.
Driver Installation
You may need to install the proper drivers in your operating system
to use the IrDA function. Refer to your operating system's manual
or documentation for more information.
42
IRRX
N. C. Ground
VCC
IRTX
1 5
Note:
The sequence of the pin functions on some IrDA cable may be
reversed from the pin function defined on the system board.
Make sure to connect the cable to the IrDA connector according
to their pin functions.
10
8 2
7 9
