Hardware Installation
2.4.2 Jumper Settings for Selecting the CPU's Front Side
Bus

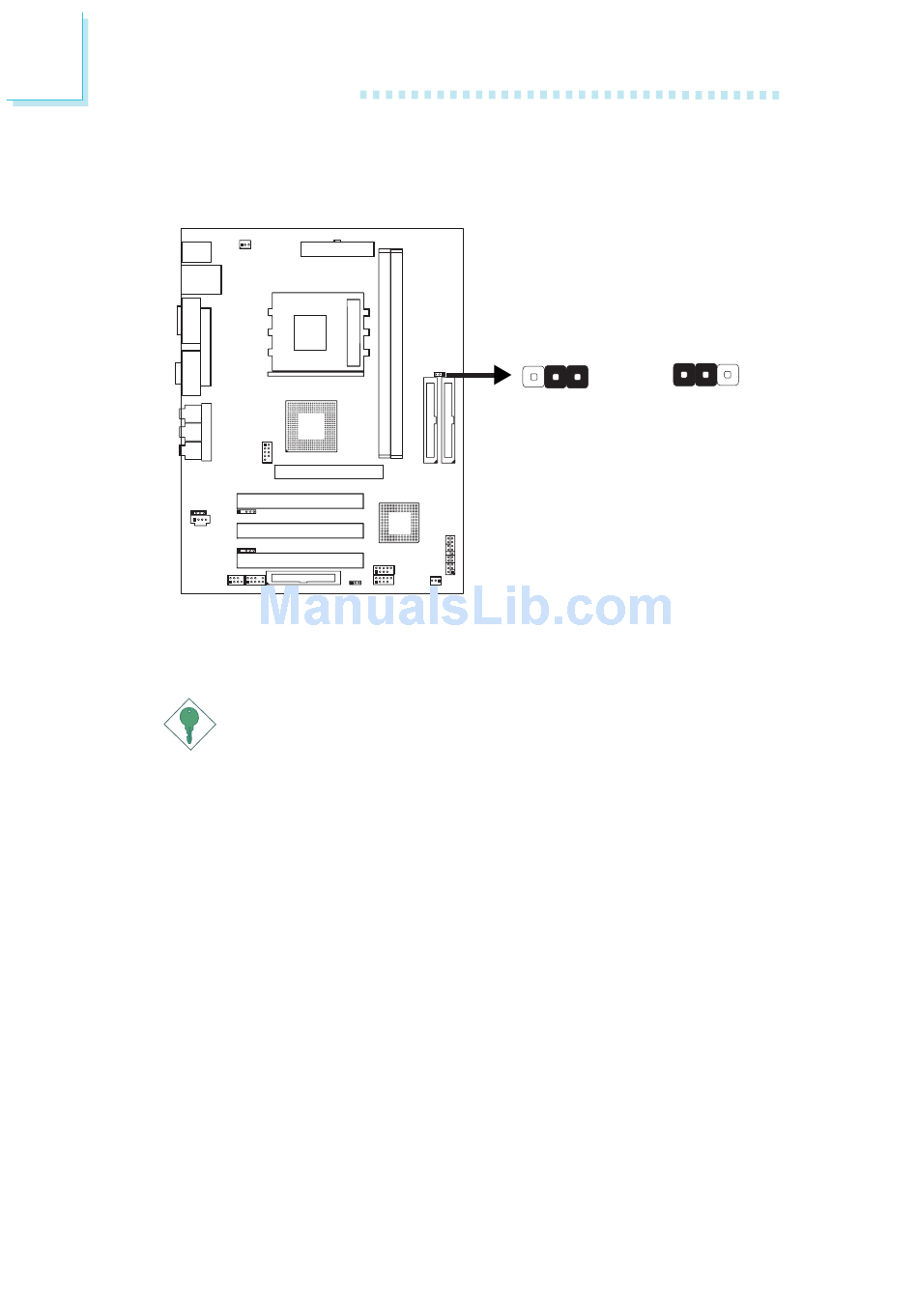

JP4 is used to select the front side bus of the CPU installed on the
system board.
24
8
2
10
7
1
9
Important:
•
Overclocking may result to the CPU's or system's instability
and are not guaranteed to provide better system perform-
ance. If you are unable to boot your system due to
overclocking, make sure to set the jumper back to its default
setting.
•
To ensure proper boot up and operation of your system, you
must power-off the system then turn off the power supply's
switch or unplug the AC power cord prior to altering the
setting.
3
2
1
JP4
1-2 On: 133MHz
3
2
1
2-3 On: 100MHz
(default)
