4-1-1
IC IC IC IC- - - - F110 / IC F110 / IC F110 / IC F110 / IC- - - - F121, IC F121, IC- - - - F210 / IC F121, IC F121, IC F210 / IC- - - - F221 F210 / IC F210 / IC

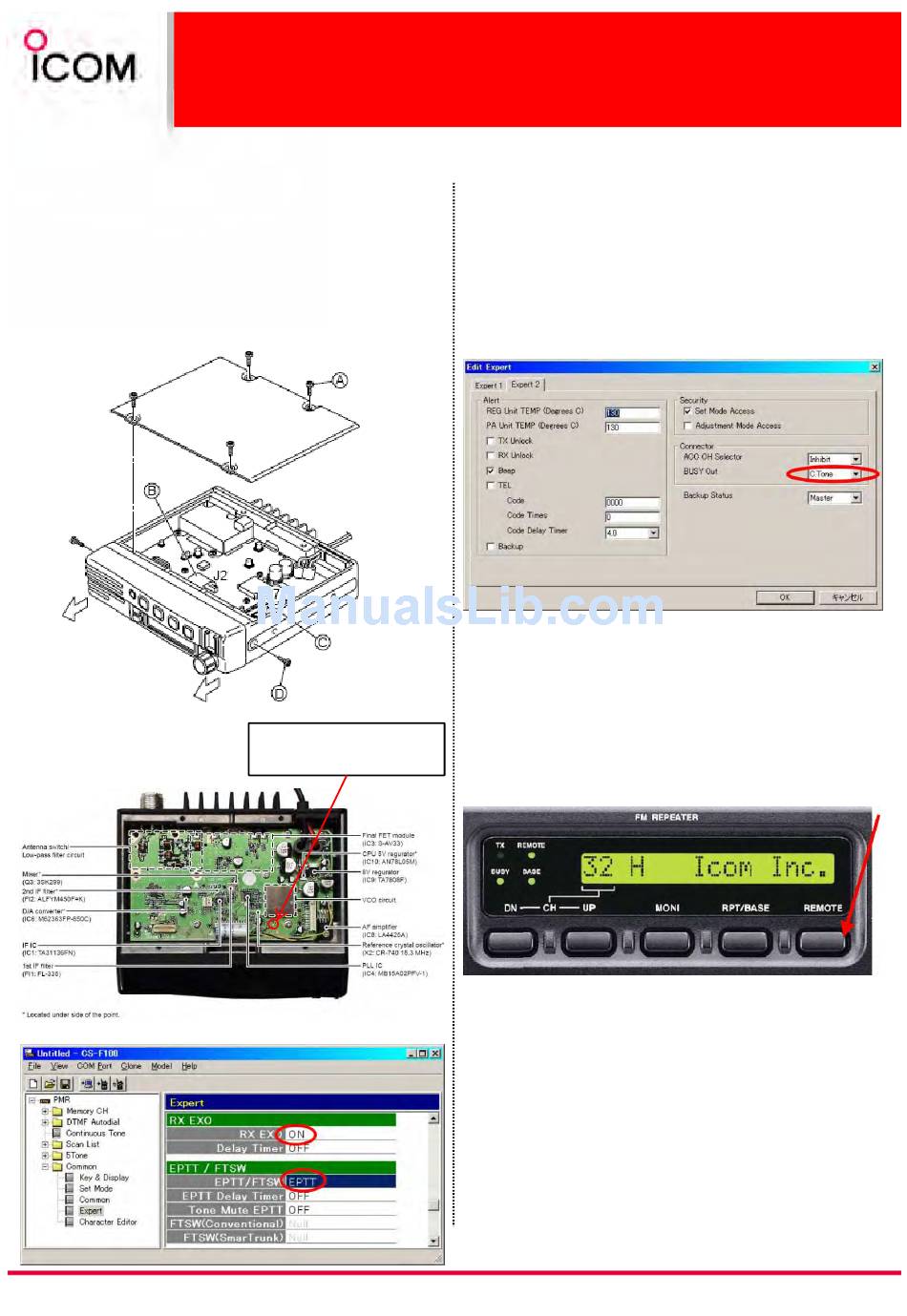

Opening the case Opening the case Opening the case Opening the case
➀ Unscrew 4 screws A, and remove the bottom cover.
➁ Disconnect the flat cable B from J2.
➂ Disconnect the cable C from J7.
➃ Unscrew 2 screws D, and remove the front unit.

Hardware / Software Setup

F221 F221 F221
Make soldering bridge
at the point "F".
IC IC IC IC- - - - FR3000/IC FR3000/IC- - - - FR3100, IC FR3000/IC FR3000/IC FR3100, IC- - - - FR4000/IC FR3100, IC FR3100, IC
1. Software setting (CS-FR3000)
If repeater is operated as "Closed repeater" which
requires CTCSS to access the repeater, it is
recommended to program the setting of the ACC
connector as follows. This is effective to prevent
unwanted relaying by interference or noise.
2. Repeater setting
Press [REMOTE] key on the front panel to activate the
remote function. If this is turned OFF, relaying
operation does not work. This setting cannot be
programmed by cloning, therefore this must be set
manually.
FR4000/IC- - - - FR4100 FR4000/IC FR4000/IC FR4100 FR4100 FR4100
