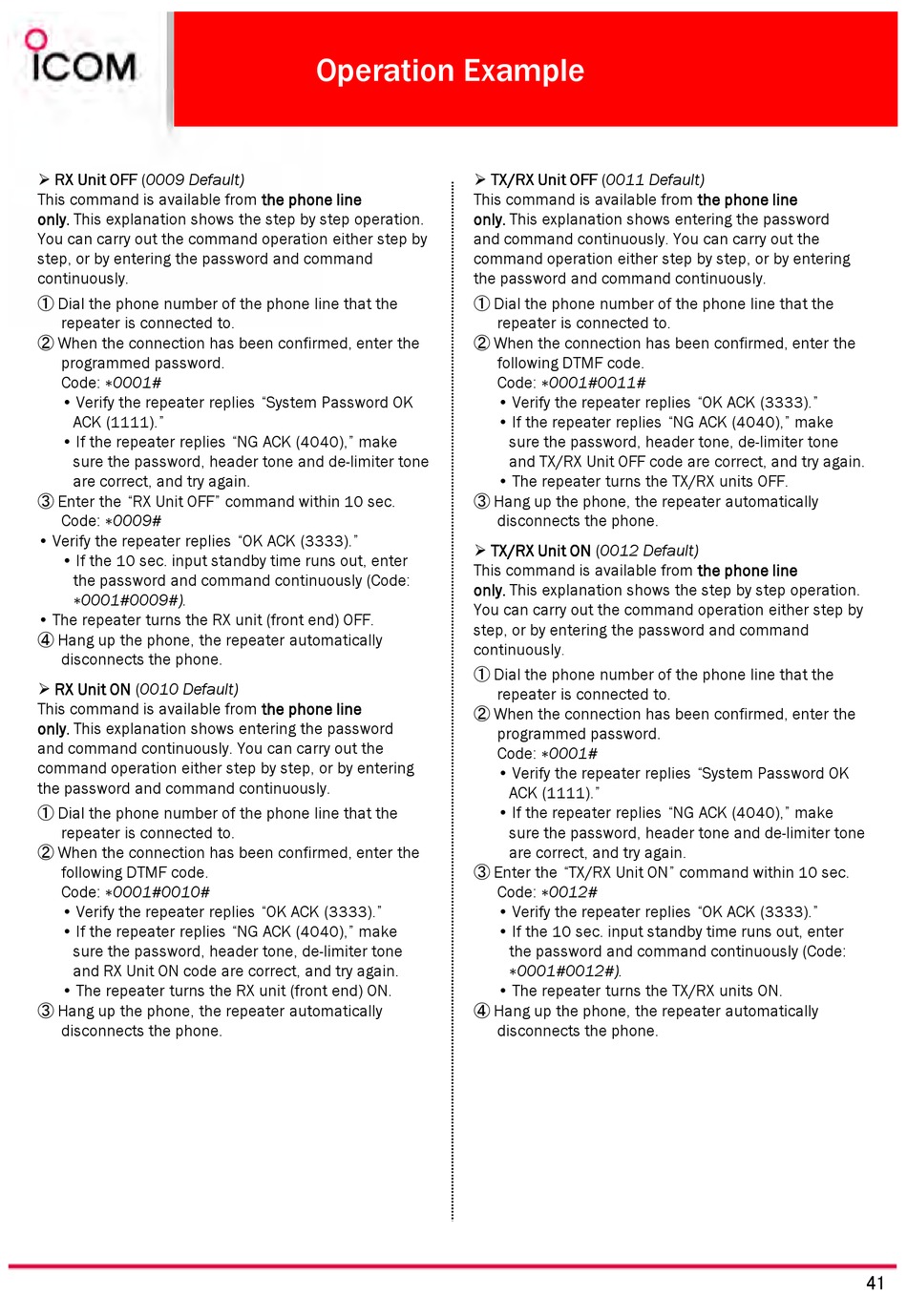

Icom IC-FR3000 Series Sales Handbook page 41

RX Unit OFF RX Unit OFF (0009 Default) RX Unit OFF RX Unit OFF
This command is available from the phone line
only. only. This explanation shows the step by step operation. only. only.
You can carry out the command operation either step by
step, or by entering the password and command
continuously.
① Dial the phone number of the phone line that the
repeater is connected to.
② When the connection has been confirmed, enter the
programmed password.
Code: ∗0001#
• Verify the repeater replies "System Password OK
ACK (1111)."
• If the repeater replies "NG ACK (4040)," make
sure the password, header tone and de-limiter tone
are correct, and try again.
③ Enter the "RX Unit OFF" command within 10 sec.
Code: ∗0009#
• Verify the repeater replies "OK ACK (3333)."
• If the 10 sec. input standby time runs out, enter
the password and command continuously (Code:
∗0001#0009#).
• The repeater turns the RX unit (front end) OFF.
④ Hang up the phone, the repeater automatically
disconnects the phone. disconnects the phone.
RX Unit ON (0010 Default) RX Unit ON
RX Unit ON RX Unit ON
This command is available from the phone line
only. This explanation shows entering the password only. only. only.
and command continuously. You can carry out the
command operation either step by step, or by entering
the password and command continuously.
① Dial the phone number of the phone line that the
repeater is connected to.
② When the connection has been confirmed, enter the
following DTMF code.
Code: ∗0001#0010#
• Verify the repeater replies "OK ACK (3333)."
• If the repeater replies "NG ACK (4040)," make
sure the password, header tone, de-limiter tone
and RX Unit ON code are correct, and try again.
• The repeater turns the RX unit (front end) ON.
③ Hang up the phone, the repeater automatically
disconnects the phone.
Operation Example
the phone line the phone line the phone line
the phone line the phone line the phone line
TX/RX Unit OFF (0011 Default) TX/RX Unit OFF TX/RX Unit OFF TX/RX Unit OFF
This command is available from the phone line
only. only. only. only. This explanation shows entering the password
and command continuously. You can carry out the
command operation either step by step, or by entering
the password and command continuously.
① Dial the phone number of the phone line that the
repeater is connected to.
② When the connection has been confirmed, enter the
following DTMF code.
Code: ∗0001#0011#
• Verify the repeater replies "OK ACK (3333)."
• If the repeater replies "NG ACK (4040)," make
sure the password, header tone, de-limiter tone
and TX/RX Unit OFF code are correct, and try again.
• The repeater turns the TX/RX units OFF.
③ Hang up the phone, the repeater automatically
disconnects the phone.
TX/RX Unit ON (0012 Default) TX/RX Unit ON
TX/RX Unit ON TX/RX Unit ON
This command is available from the phone line
only. only. only. only. This explanation shows the step by step operation.
You can carry out the command operation either step by
step, or by entering the password and command
continuously. continuously.
① Dial the phone number of the phone line that the
repeater is connected to.
② When the connection has been confirmed, enter the
programmed password.
Code: ∗0001#
• Verify the repeater replies "System Password OK
ACK (1111)."
• If the repeater replies "NG ACK (4040)," make
sure the password, header tone and de-limiter tone
are correct, and try again.
③ Enter the "TX/RX Unit ON" command within 10 sec.
Code: ∗0012#
• Verify the repeater replies "OK ACK (3333)."
• If the 10 sec. input standby time runs out, enter
the password and command continuously (Code:
∗0001#0012#).
• The repeater turns the TX/RX units ON.
④ Hang up the phone, the repeater automatically
disconnects the phone.
the phone line the phone line the phone line
the phone line
the phone line the phone line
