4
4-1

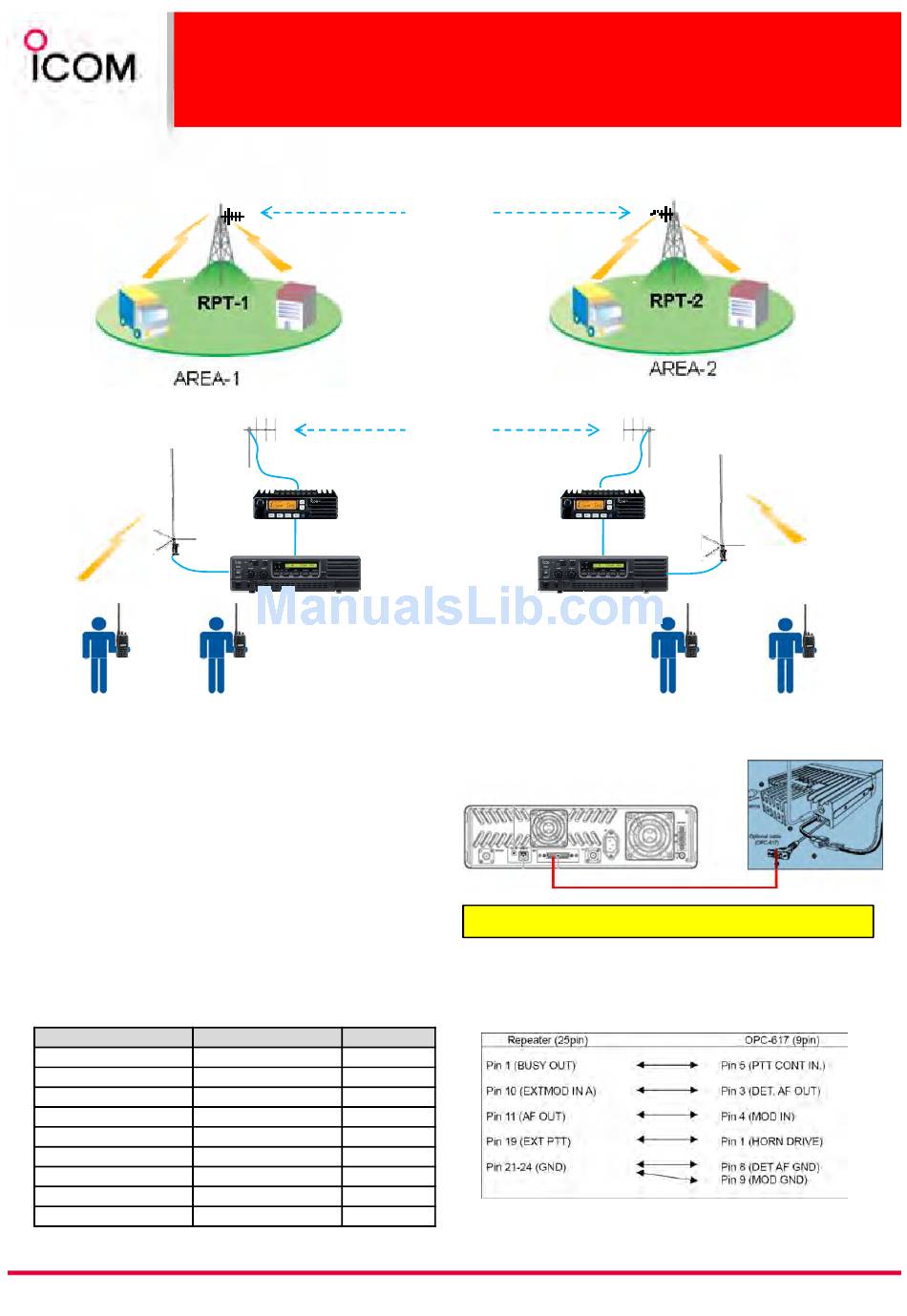

Basic Repeater Linking System
Basic Repeater Linking System
Basic Repeater Linking System
Basic Repeater Linking System
Tx = f
1
Rx = f
2
Tx = f
2
Rx = f
Rx = f
1
1
UHF H/H
A repeater extends communications service area and it
is very useful for two-way communications. Everyone
thinks that the service area should be as wide as
possible such as a cellular phone system. Now the
service area can be extended with Icom repeaters!
This is a basic plan to upgrade the repeater site to a link
system. This plan is suitable for linking two or more
repeater sites. When a subscriber transmits, the
repeater re-transmits a received signal. At the same
time, the received signal is sent to another repeater site,
through a VHF mobile radio. These VHF radios work as
link radios between repeater sites.
System requirements (One site)
System requirements (One site)
System requirements (One site)
System requirements (One site)
Descriptions
UHF Repeater
UHF Antenna
Duplexer
VHF Mobile Radio
VHF Antenna
Power Supply
Duplexer
ACC Cable
Interface Cable

Applications

Repeater Linking System - 1

Linking interface
IC-FR4000
Model Number
Quantity
IC-FR4000
IC-F111
OPC-617
25p to 9p
Link VHF
Link VHF
Linking interface
IC-FR4000
Connection example
Connection example
Connection example
Connection example
Connect two repeaters by interface cable (25p to 9p).
These interface cables are not sold as Icom accessories,
therefore please assemble the interface cable by
yourself. The connection diagram is as follows;
Tx = f
3
Rx = f
4
Tx = f
4
Rx = f
Rx = f
3
3
UHF H/H
53
