Phone Line to Repeater Connection for Phone Patch and Remote Control Function Phone Line to Repeater Connection for Phone Patch and Remote Control Function Phone Line to Repeater Connection for Phone Patch and Remote Control Function Phone Line to Repeater Connection for Phone Patch and Remote Control Function
The IC-FR3000/FR4000 repeater can be connected to
the telephone line. Phone Patch function allows
communication to a transceiver from a telephone line,
or connection to a telephone line from a transceiver.
During the Phone Patch operation, the voice
communication is simplex. (The mute control is
activated from the transceiver's continuous tone SQL.)
Tx = f
1
Rx = f
2
Tx = f
2
Rx = f
1
UHF H/H
Connection Example between Phone Patch Interface and Repeater Connection Example between Phone Patch Interface and Repeater Connection Example between Phone Patch Interface and Repeater Connection Example between Phone Patch Interface and Repeater
Mic
Output Output
Phn
■ Operation from the phone line Operation from the phone line Operation from the phone line Operation from the phone line
TX Start (0005 Default) TX Start TX Start TX Start
Step by step operation from the phone line.
① Dial the phone number of the phone line that the
repeater is connected to.
② When the connection has been confirmed, enter the
programmed password.
Code: ∗0001#
• Verify the repeater replies "System Password OK
ACK (1111)."
• If the repeater replies "NG ACK (4040)," make
sure the password, header tone and de-limiter tone
are correct, and try again.
③ Enter the "TX Start" command within 10 sec.
Code: ∗0005#
• Verify the repeater replies "OK ACK (3333)."
• If the 10 sec. input standby time runs out, enter
the password and command continuously (Code:
∗0001#0005#).

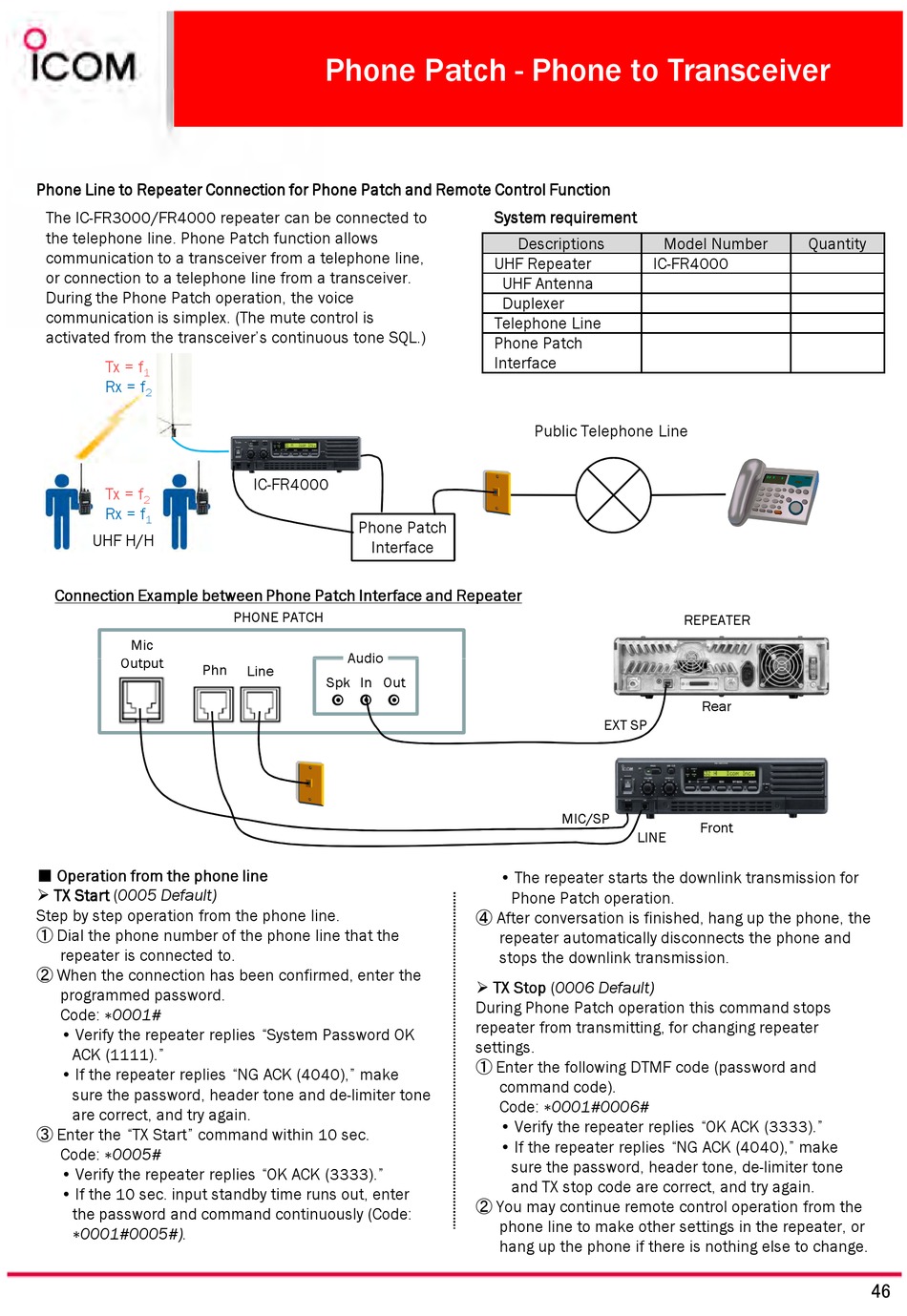

Phone Patch - Phone to Transceiver
IC-FR4000

Phone Patch

Interface
PHONE PATCH
Audio Audio
Line
Spk In Out
System requirement System requirement System requirement System requirement
Descriptions
UHF Repeater
UHF Antenna
Duplexer
Telephone Line
Phone Patch
Interface
Public Telephone Line
EXT SP
MIC/SP
LINE
• The repeater starts the downlink transmission for
Phone Patch operation.
④ After conversation is finished, hang up the phone, the
repeater automatically disconnects the phone and
stops the downlink transmission.
TX Stop TX Stop (0006 Default) TX Stop TX Stop
During Phone Patch operation this command stops
repeater from transmitting, for changing repeater
settings.
① Enter the following DTMF code (password and
command code).
Code: ∗0001#0006#
• Verify the repeater replies "OK ACK (3333)."
• If the repeater replies "NG ACK (4040)," make
sure the password, header tone, de-limiter tone
and TX stop code are correct, and try again.
② You may continue remote control operation from the
phone line to make other settings in the repeater, or
hang up the phone if there is nothing else to change.
Model Number Quantity
IC-FR4000
REPEATER
Rear
Front
46
