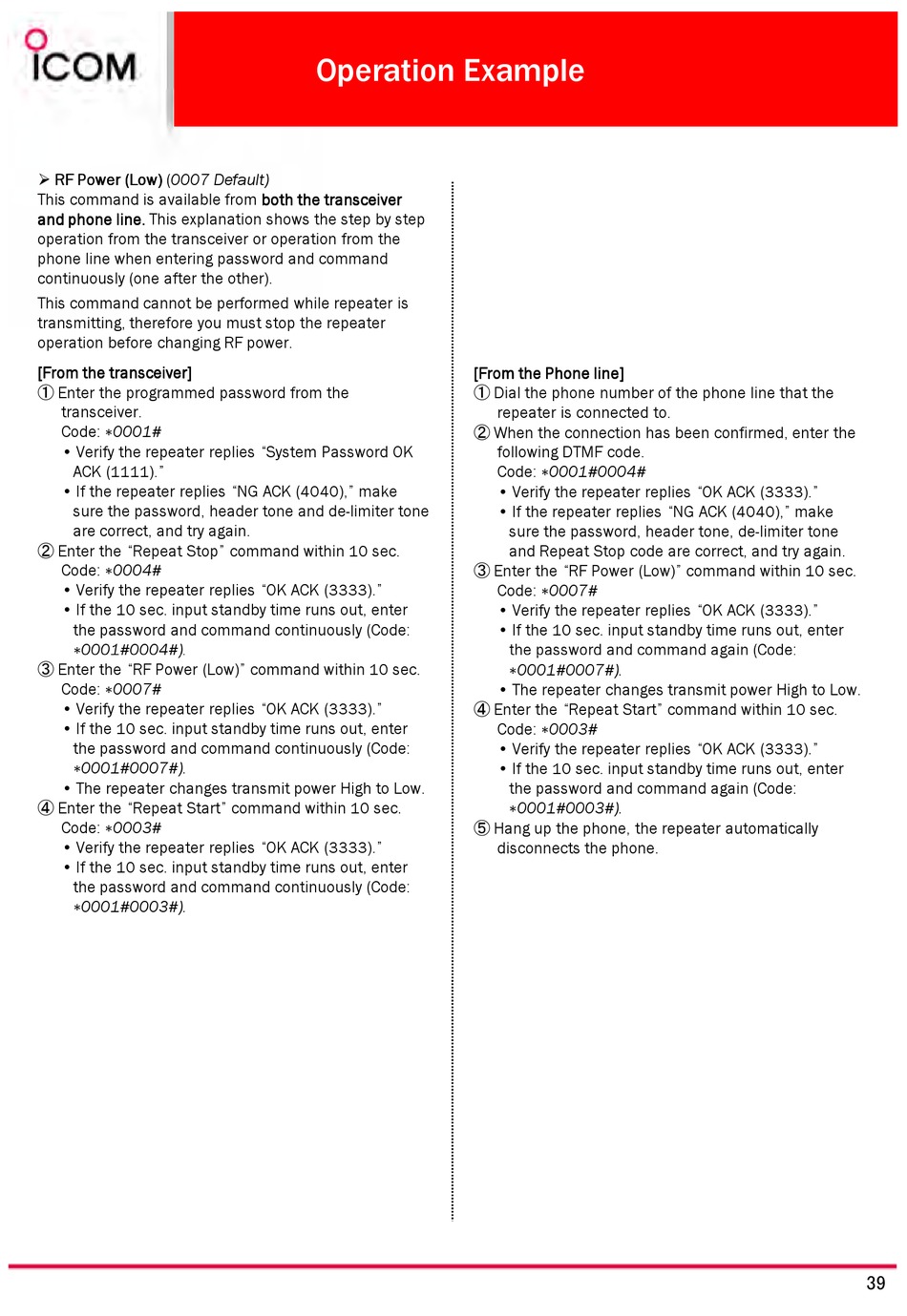

RF Power (Low) RF Power (Low) (0007 Default) RF Power (Low) RF Power (Low)
This command is available from both the transceiver
and phone line. and phone line. This explanation shows the step by step and phone line. and phone line.
operation from the transceiver or operation from the
phone line when entering password and command
continuously (one after the other).
This command cannot be performed while repeater is
transmitting, therefore you must stop the repeater
operation before changing RF power.
[From the transceiver] [From the transceiver] [From the transceiver] [From the transceiver]
① Enter the programmed password from the
transceiver.
Code: ∗0001#
• Verify the repeater replies "System Password OK
ACK (1111)."
• If the repeater replies "NG ACK (4040)," make
sure the password, header tone and de-limiter tone
are correct, and try again.
② Enter the "Repeat Stop" command within 10 sec.
Code: ∗0004#
• Verify the repeater replies "OK ACK (3333)."
• If the 10 sec. input standby time runs out, enter
the password and command continuously (Code:
∗0001#0004#). ∗0001#0004#).
③ Enter the "RF Power (Low)" command within 10 sec.
Code: ∗ 0007#
∗
• Verify the repeater replies "OK ACK (3333)."
• If the 10 sec. input standby time runs out, enter
the password and command continuously (Code:
∗0001#0007#).
• The repeater changes transmit power High to Low.
④ Enter the "Repeat Start" command within 10 sec.
Code: ∗0003#
• Verify the repeater replies "OK ACK (3333)."
• If the 10 sec. input standby time runs out, enter
the password and command continuously (Code:
∗0001#0003#).
Operation Example
both the transceiver both the transceiver both the transceiver
[From the Phone line] [From the Phone line]
[From the Phone line] [From the Phone line]
① Dial the phone number of the phone line that the
repeater is connected to.
② When the connection has been confirmed, enter the
following DTMF code.
Code: ∗0001#0004#
• Verify the repeater replies "OK ACK (3333)."
• If the repeater replies "NG ACK (4040)," make
sure the password, header tone, de-limiter tone
and Repeat Stop code are correct, and try again.
③ Enter the "RF Power (Low)" command within 10 sec.
Code: ∗0007#
• Verify the repeater replies "OK ACK (3333)."
• If the 10 sec. input standby time runs out, enter
the password and command again (Code: the password and command again (Code:
∗ 0001#0007#).
∗
• The repeater changes transmit power High to Low.
④ Enter the "Repeat Start" command within 10 sec.
Code: ∗0003#
• Verify the repeater replies "OK ACK (3333)."
• If the 10 sec. input standby time runs out, enter
the password and command again (Code:
∗0001#0003#).
⑤ Hang up the phone, the repeater automatically
disconnects the phone.
