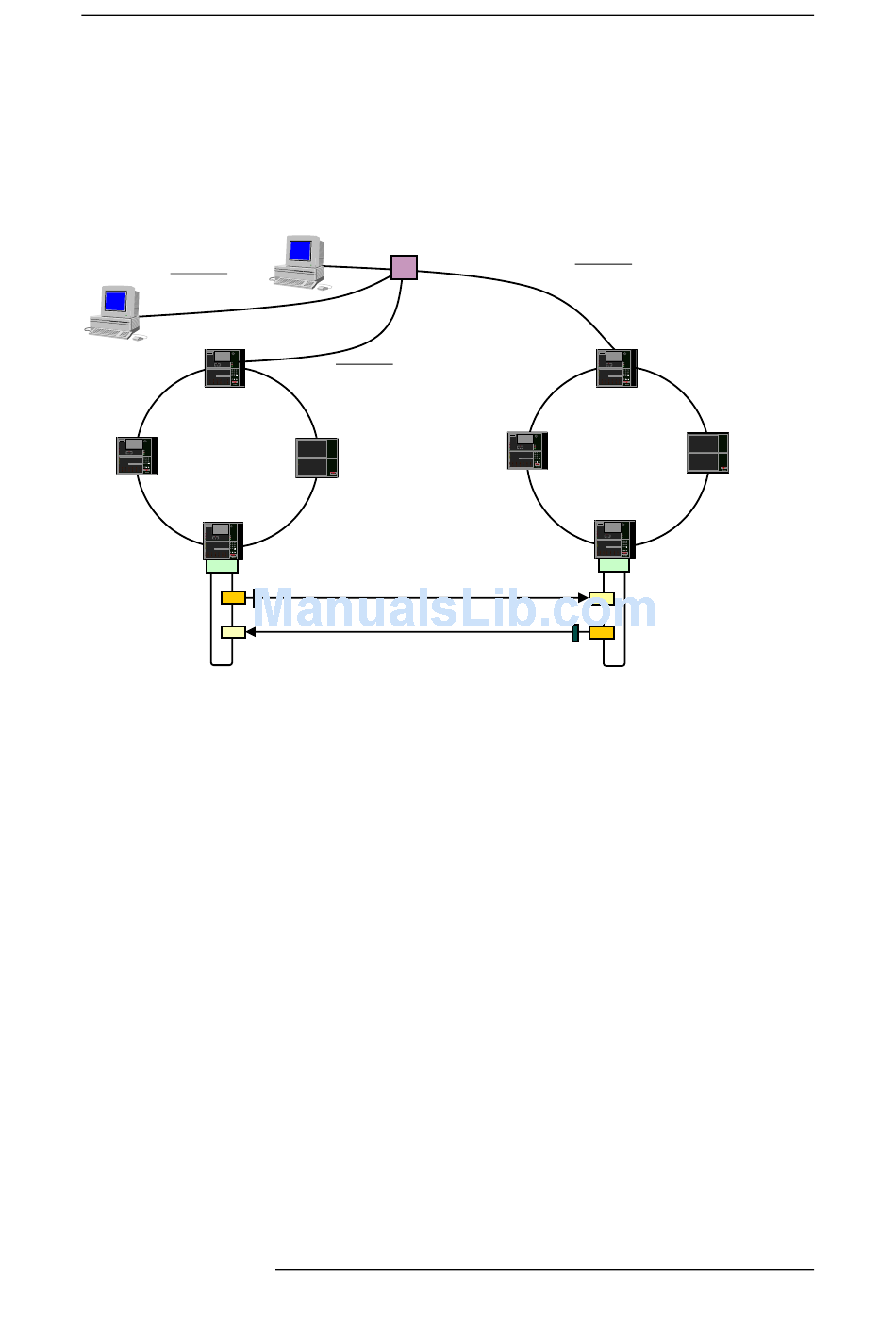

5.3.2 Application with Twisted Pair Cabling

Alternative 2
Twisted Pair Cable
Maximum 90m
AutroMaster 5000
A L A R M
(slave)
Gene ra l Alarm
Fire Ext Activated
Silence Buzzer
Fire Vent Activated
Fire Brigade Msg More Ala rms Silence Sounders
Reset
Power
Prewarning 1 2 3
Early Warning
4 5 6
Fault
System Fault 7 8 9
Function D isabled
C 0
Test
?
S elf Verify
BS-320
AUTROLON
A L A R M
Gene ra l Alarm
Fire Ext Activated
Silence Buzzer RING 1
Fire Vent Activated Silence Sounders
Fire Brigade Msg More Ala rms
Reset
Power
Prewarning 1 2 3
Early Warning
4 5 6
Fault
System Fault 7 8 9
Function D isabled
C 0
Test
?
Self Verify
BS-320
A L A R M
Gene ra l Alarm
Fire Ext Activated
Silence Buzzer
Fire Vent Activated
Fire Brigade Msg More Ala rms Silence Sounders
Power Reset
Prewarning 1 2 3
Early Warning 4 5 6
Fault
System Fault 7 8 9
Function D isabled
0
Test C
?
Self Verify
BSD-310
BN-310
Detection
Loop
BN-300
AutroMaster 5000
(master)
Twisted
HUB
Pair
Cable
Alternative 2
Twisted Pair Cable
Maximum 90m
Power
Fault
Self Verify
BC-320
BS-320
Alarm, Fault Warning
2K End Resistance
Note:
Make sure that connections are galvanically isolated.
