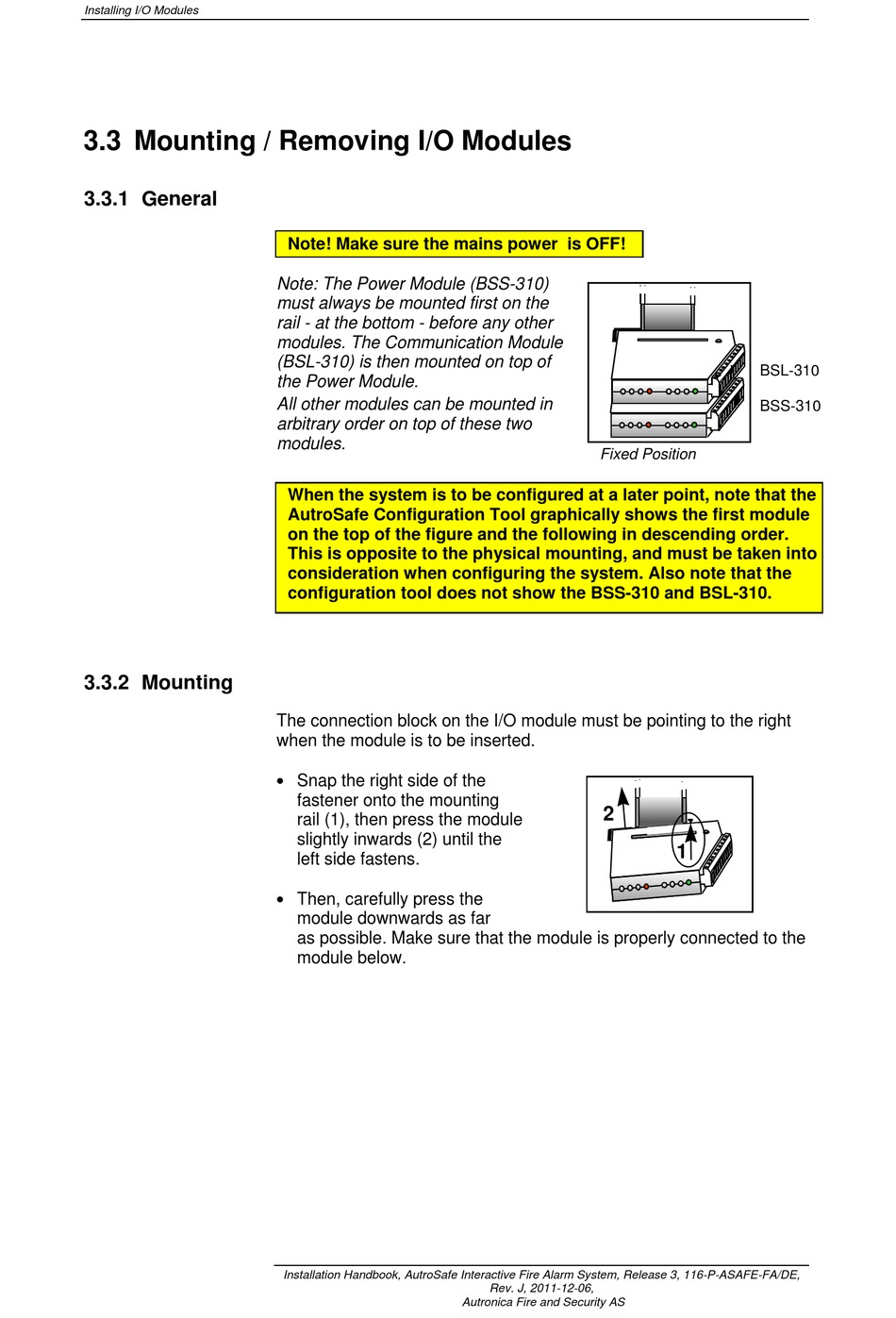

Installing I/O Modules

3.3 Mounting / Removing I/O Modules

3.3.1 General

3.3.2 Mounting

Note! Make sure the mains power is OFF!
Note: The Power Module (BSS-310)
must always be mounted first on the
rail - at the bottom - before any other
modules. The Communication Module
(BSL-310) is then mounted on top of
the Power Module.
All other modules can be mounted in
arbitrary order on top of these two
modules.
When the system is to be configured at a later point, note that the
AutroSafe Configuration Tool graphically shows the first module
on the top of the figure and the following in descending order.
This is opposite to the physical mounting, and must be taken into
consideration when configuring the system. Also note that the
configuration tool does not show the BSS-310 and BSL-310.
The connection block on the I/O module must be pointing to the right
when the module is to be inserted.
 Snap the right side of the
fastener onto the mounting
rail (1), then press the module
slightly inwards (2) until the
left side fastens.
 Then, carefully press the
module downwards as far
as possible. Make sure that the module is properly connected to the
module below.
