Installing I/O Modules

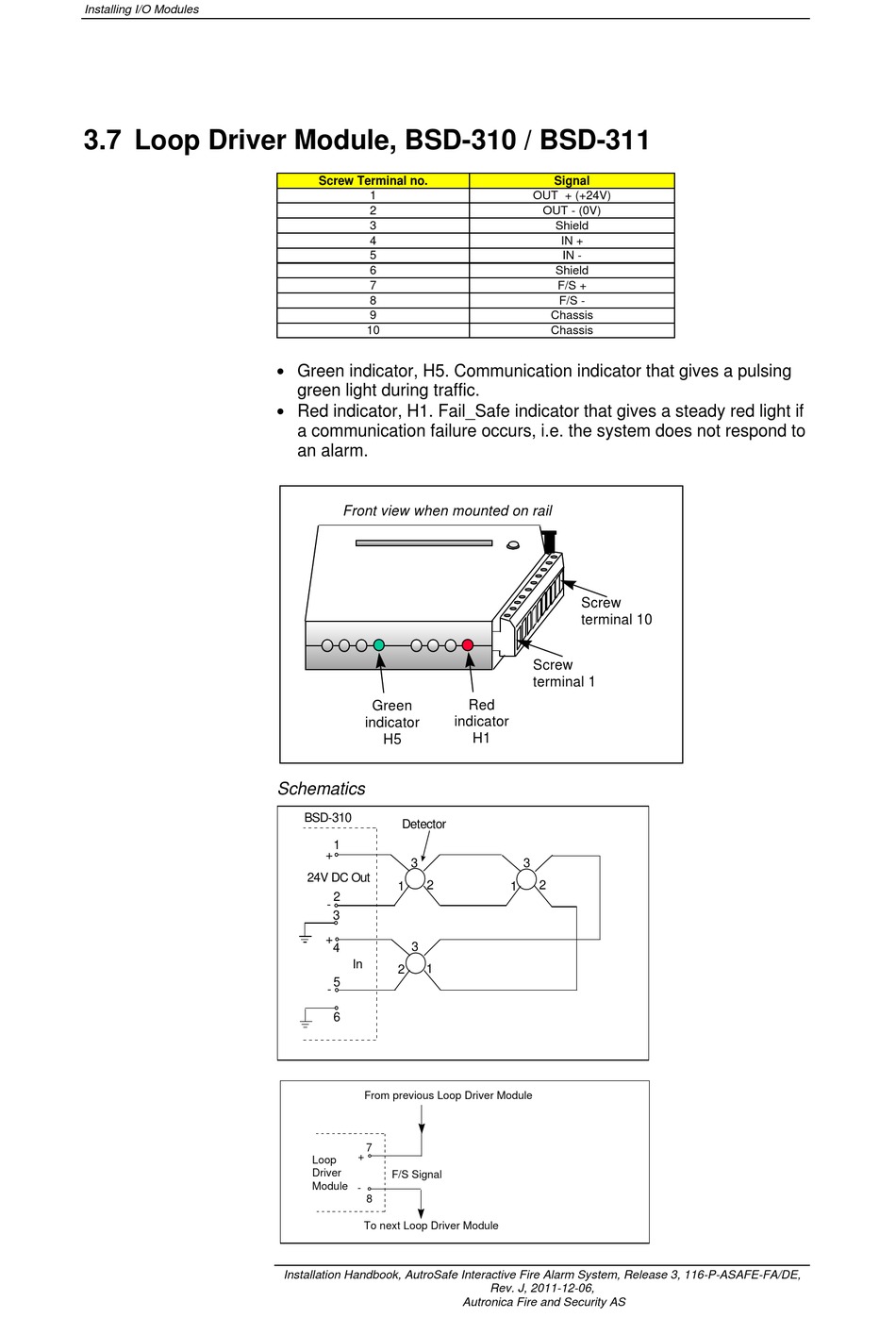

3.7 Loop Driver Module, BSD-310 / BSD-311

Screw Terminal no.
1
2
3
4
5
6
7
8
9
10
 Green indicator, H5. Communication indicator that gives a pulsing
green light during traffic.
 Red indicator, H1. Fail_Safe indicator that gives a steady red light if
a communication failure occurs, i.e. the system does not respond to
an alarm.
Front view when mounted on rail
Green
indicator
H5
Schematics
BSD-310
Detector
1
+
3
24V DC Out
2
1
2
-
3
+
3
4
In
1
2
5
-
6
From previous Loop Driver Module
7
+
Loop
Driver
F/S Signal
Module
-
8
To next Loop Driver Module
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,
Signal
OUT + (+24V)
OUT - (0V)
Shield
IN +
IN -
Shield
F/S +
F/S -
Chassis
Chassis
Screw
terminal 10
Screw
terminal 1
Red
indicator
H1
3
2
1
Rev. J, 2011-12-06,
Autronica Fire and Security AS
