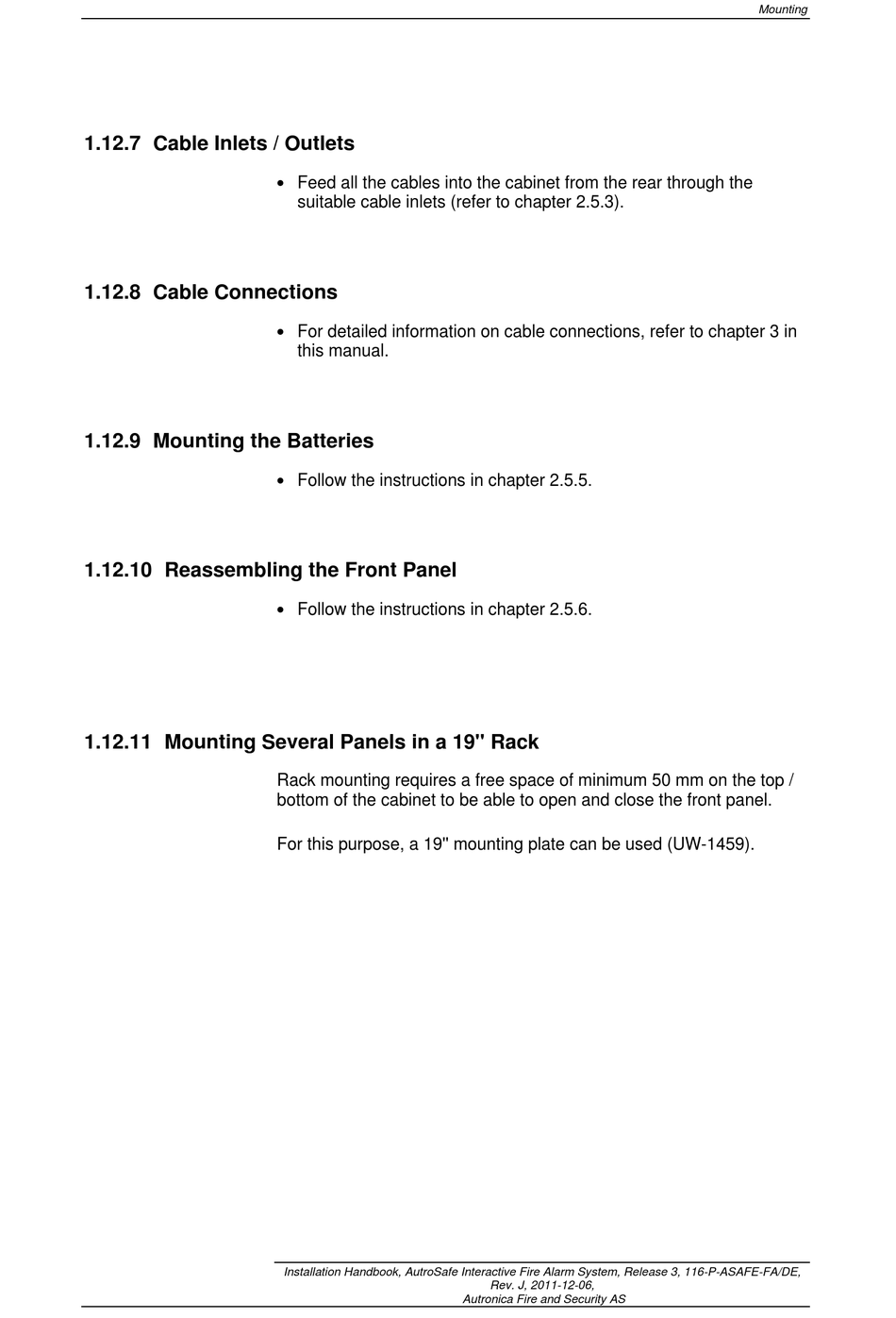

1.12.7 Cable Inlets / Outlets
1.12.8 Cable Connections
1.12.9 Mounting the Batteries
1.12.10 Reassembling the Front Panel
1.12.11 Mounting Several Panels in a 19'' Rack
Feed all the cables into the cabinet from the rear through the
suitable cable inlets (refer to chapter 2.5.3).
For detailed information on cable connections, refer to chapter 3 in
this manual.
Follow the instructions in chapter 2.5.5.
Follow the instructions in chapter 2.5.6.
Rack mounting requires a free space of minimum 50 mm on the top /
bottom of the cabinet to be able to open and close the front panel.
For this purpose, a 19'' mounting plate can be used (UW-1459).
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
Mounting
