Mounting

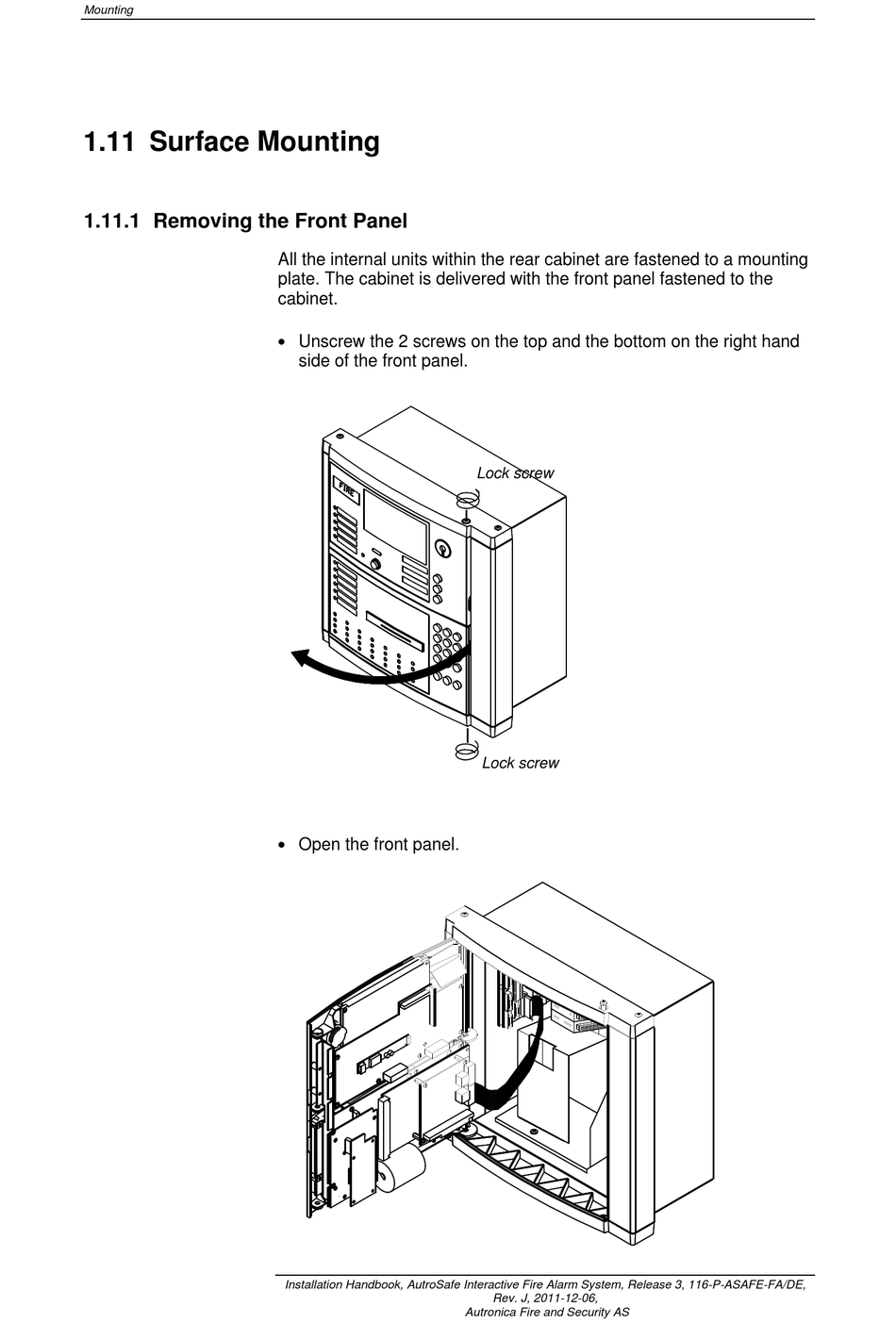

1.11 Surface Mounting
1.11.1 Removing the Front Panel
All the internal units within the rear cabinet are fastened to a mounting
plate. The cabinet is delivered with the front panel fastened to the
cabinet.
Unscrew the 2 screws on the top and the bottom on the right hand
side of the front panel.
Open the front panel.
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,
Lock screw
Lock screw
Rev. J, 2011-12-06,
Autronica Fire and Security AS
