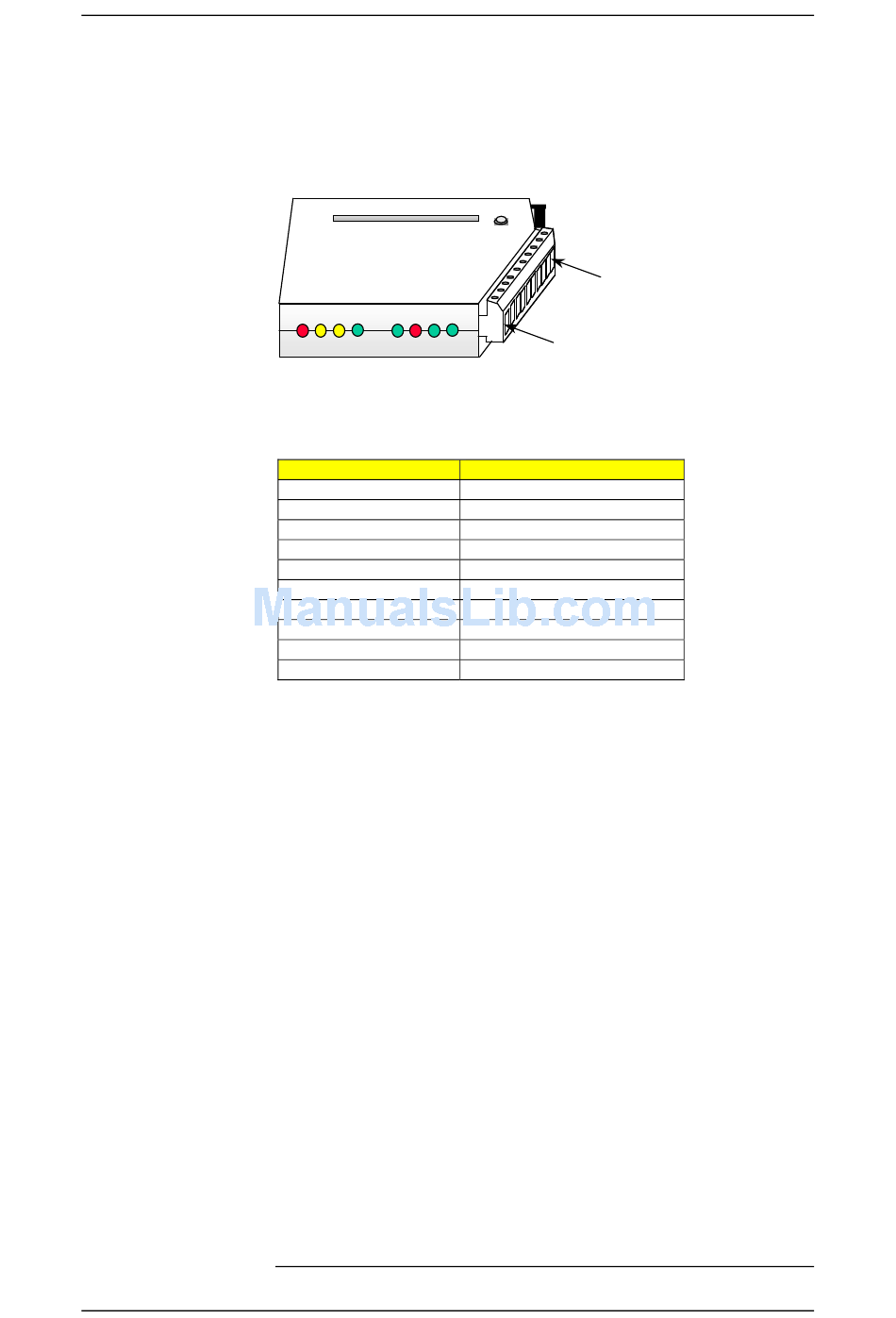

4.4 Connections to the AUTROLON Booster BSL-325
Front view when mounted on rail
Indicators
H8 H7 H6 H5
H4 H3 H2 H1
The BSL-325 module has the following connections:
Screw Terminal no.
1
2
3
4
5
6
7
8
9
10
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,
Screw
terminal 10
Screw
terminal 1
Signal
LON A (polarity independent)
LON A (polarity independent)
Shield LON A
LON B (polarity independent)
LON B (polarity independent)
Shield LON B
Do NOT connect
Do NOT connect
+24 VDC Supply
0 VDC Supply
Rev. J, 2011-12-06,
Autronica Fire and Security AS
