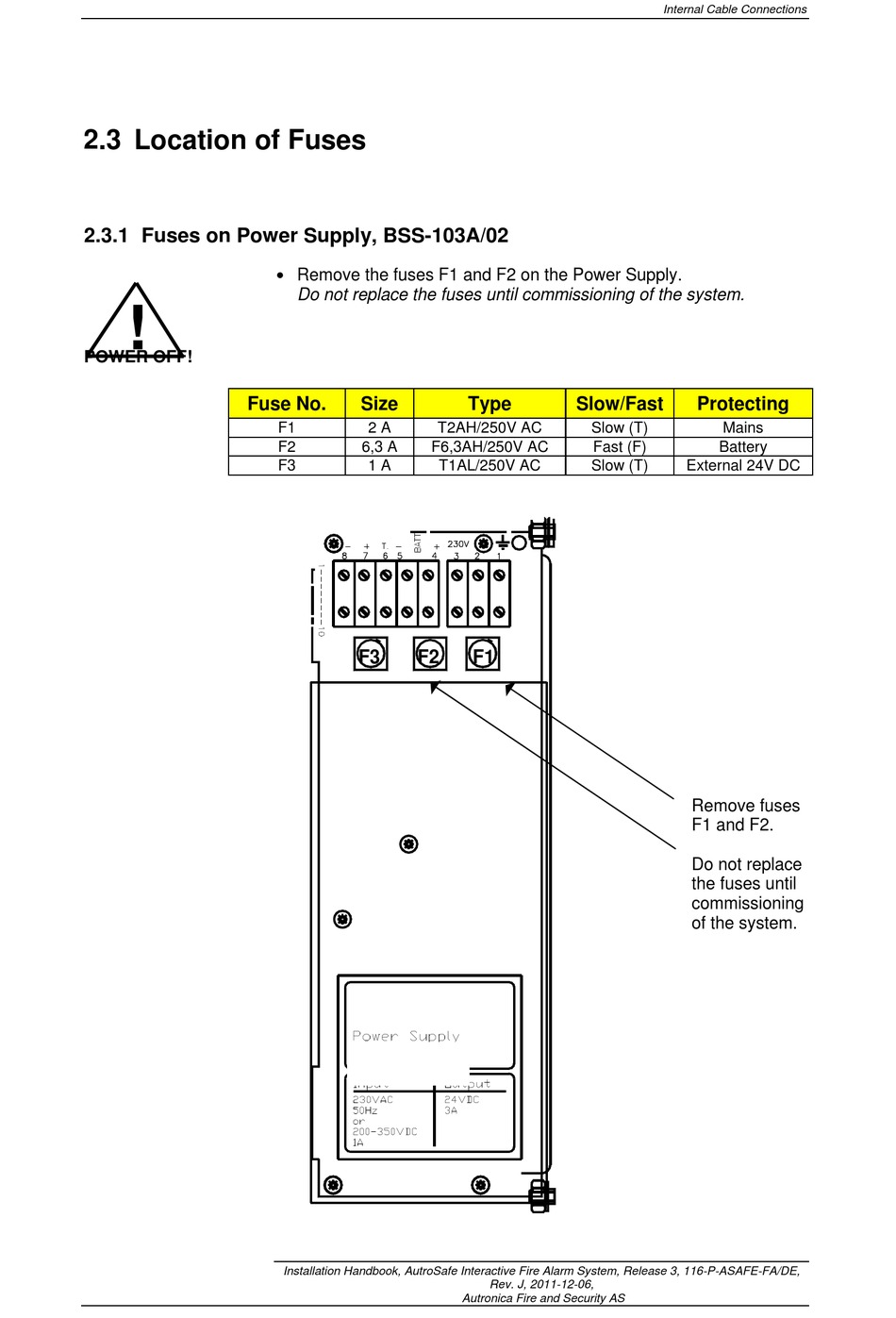

2.3 Location of Fuses

2.3.1 Fuses on Power Supply, BSS-103A/02

!
POWER OFF!
Fuse No.
 Remove the fuses F1 and F2 on the Power Supply.
Do not replace the fuses until commissioning of the system.
Size
F1 2 A T2AH/250V AC
F2 6,3 A F6,3AH/250V AC
F3 1 A T1AL/250V AC
F3 F2
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,
Type Slow/Fast
Slow (T)
Fast (F)
Slow (T)
F1
Rev. J, 2011-12-06,
Autronica Fire and Security AS
Internal Cable Connections
Protecting
Mains
Battery
External 24V DC
Remove fuses
F1 and F2.
Do not replace
the fuses until
commissioning
of the system.
