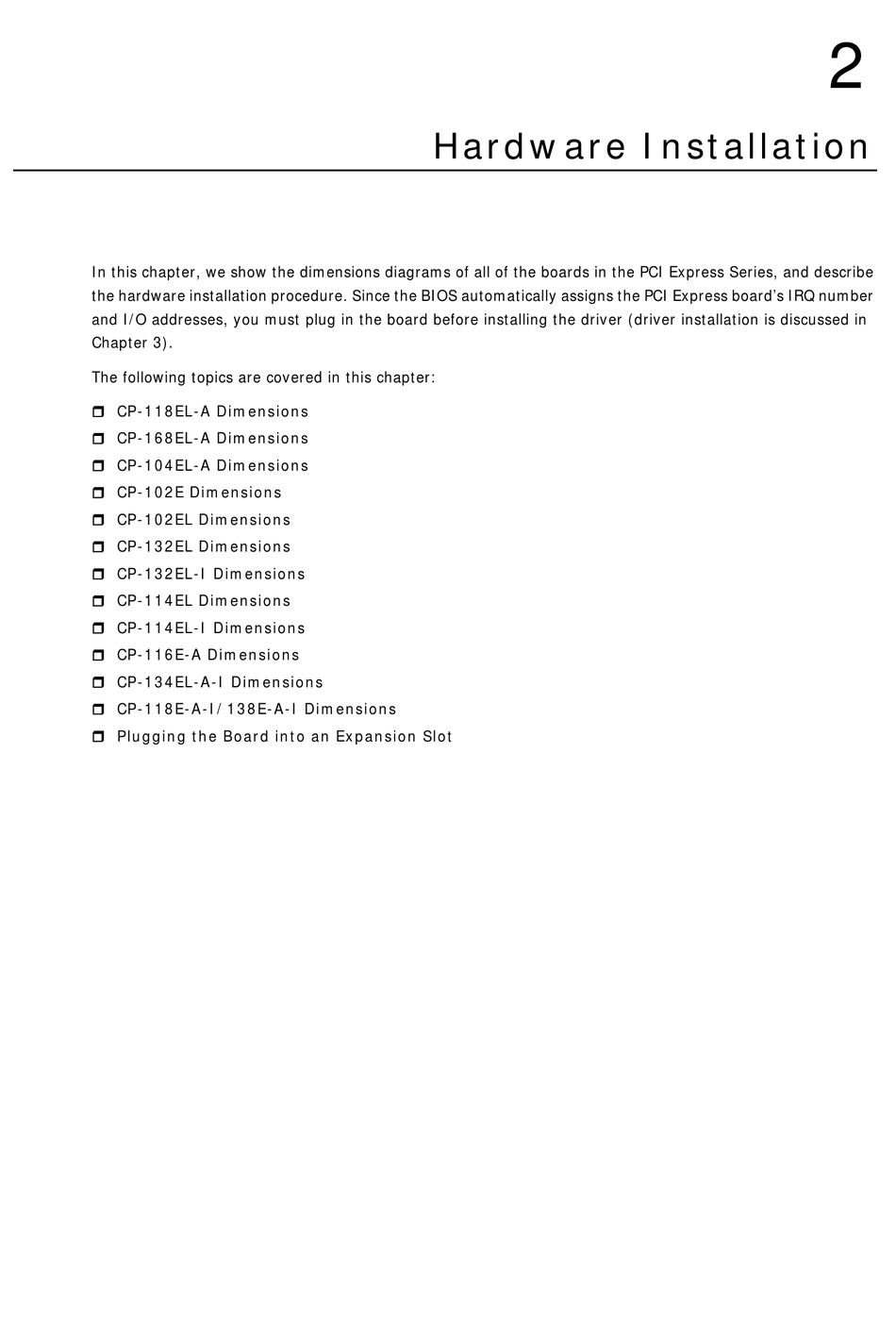

Hardware Installation

2.
In this chapter, we show the dimensions diagrams of all of the boards in the PCI Express Series, and describe
the hardware installation procedure. Since the BIOS automatically assigns the PCI Express board's IRQ number
and I/O addresses, you must plug in the board before installing the driver (driver installation is discussed in
Chapter 3).
The following topics are covered in this chapter:
 CP-118EL-A Dimensions
 CP-168EL-A Dimensions
 CP-104EL-A Dimensions
 CP-102E Dimensions
 CP-102EL Dimensions
 CP-132EL Dimensions
 CP-132EL-I Dimensions
 CP-114EL Dimensions
 CP-114EL-I Dimensions
 CP-116E-A Dimensions
 CP-134EL-A-I Dimensions
 CP-118E-A-I/138E-A-I Dimensions
 Plugging the Board into an Expansion Slot
