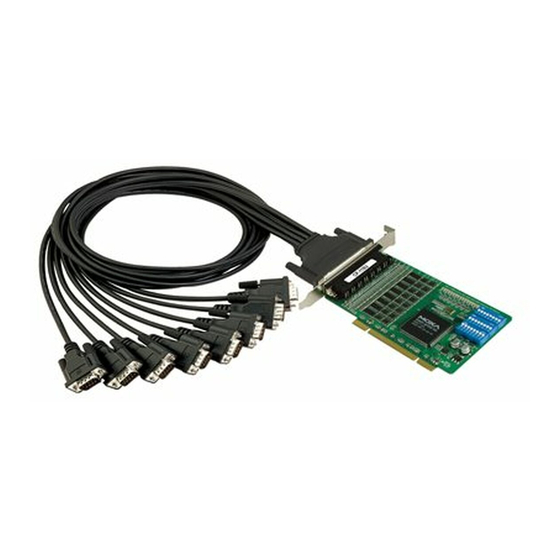

Universal pci board multiport serial board for pci and pci-x bus
Hide thumbs Also See for CP-118-U-I-T:
Table of Contents

Advertisement

Quick Links

Download this manual
Universal PCI Board User's Manual
Multiport Serial Board for PCI and PCI-X Bus
Sixth Edition, April 2009
www.moxa.com/product
© 2009 Moxa Inc. All rights reserved.
Reproduction without permission is prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-118-U-I-T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxa Technologies CP-118-U-I-T

Summary of Contents for Moxa Technologies CP-118-U-I-T

  • Page 1 Universal PCI Board User’s Manual Multiport Serial Board for PCI and PCI-X Bus Sixth Edition, April 2009 www.moxa.com/product © 2009 Moxa Inc. All rights reserved. Reproduction without permission is prohibited.
  • Page 2 Universal PCI Board User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright © 2009 Moxa Inc. All rights reserved. Reproduction without permission is prohibited.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Introduction ....................1-1 Overview ..........................1-2 Applications........................1-4 Package Checklist......................... 1-5 Product Features ........................1-5 Product Specifications ......................1-6 Installation Guide ......................... 1-8 Chapter 2 Hardware Installation ................2-1 Overview ..........................2-2 Configuring the Board and Dimension................. 2-2 Plugging the Board into an Expansion Slot ................
  • Page 4 Configuring the Ports ......................6-6 Removing the Board......................6-8 Updating the Driver......................6-8 Removing the Driver ......................6-9 Chapter 7 Driver Installation: Windows 95/98/ME............7-1 Overview ..........................7-2 Installing the Driver......................7-3 Windows 95........................7-3 Windows 98 and ME ....................7-5 Configuring the Ports ......................
  • Page 5 DB44 (Female): RS-422, RS-485 (4-wire)..............11-6 DB44 (Female): RS-485 (2-wire) ................11-6 CP-118U ..........................11-7 DB62 (Female): RS-232 ..................... 11-7 DB62 (Female): RS-422, RS-485 (4-wire)..............11-8 DB62 (Female): RS-485 (2-wire) ................11-9 CP-118U-I ...........................11-9 DB78 (Female): RS-232 ..................... 11-9 DB78 (Female): RS-422, RS-485 (4-wire)............... 11-10 DB78 (Female): RS-485 (2-wire) ................

  • Page 6: Chapter 1 Introduction

    Introduction Chapter 1 The following topics are covered in this chapter: Overview Applications Package Checklist Product Features Product Specifications Installation Guide...

  • Page 7: Overview

    8 Ports CP-118U: 8 ports, RS-232/422/485 CP-118U-T: 8 ports, RS-232/422/485, wide temperature 8 ports, RS-232/422/485, 2KV optical isolation CP-118U-I: CP-118-U-I-T: 8 ports, RS-232/422/485, 2KV optical isolation, wide temperature CP-138U: 8 ports, RS-422/485 CP-138-T: 8 ports, RS-422/485, wide temperature CP-138-I: 8 ports, RS-422/485, 2KV optical isolation, wide temperature...
  • Page 8 Universal PCI Board User’s Manual Introduction 2 Ports 2 ports, RS-232/422/485, low profile CP-112UL: CP-112UL-T: 2 ports, RS-232/422/485, low profile, wide temperature CP-112UL-I: 2 ports, RS-232/422/485, low profile, 2KV optical isolation CP-112UL-I-T: 2 ports, RS-232/422/485, low profile, 2KV optical isolation CP-132UL: 2 ports, RS-422/485, low profile 2 ports, RS-422/485, low profile, wide temperature...

  • Page 9: Applications

    Universal PCI Board User’s Manual Introduction ESD and Isolation Protection Certain models include TVSS (Transient Voltage Surge Suppressor) technology to help prevent damage due to lightning or high potential voltage. Optical isolation (2000V) and embedded protection (max. ESD of 16 KV, max. EFT of 2 KV) are also available with certain models. These features help provide protection in critical or harsh factory-type environments.

  • Page 10: Package Checklist

    Universal PCI Board User’s Manual Introduction Package Checklist UPCI boards are shipped with the following items: 1 Moxa UPCI multiport serial board Low profile bracket (low profile models only) Document & Software CD Quick Installation Guide 5-year Product Warranty statement NOTE: Notify your sales representative if any of the above items is missing or damaged.

  • Page 11: Product Specifications

    Universal PCI Board User’s Manual Introduction Product Specifications Hardware I/O Controller: MU860 (compatible with 16C550C) Connector Type: CP-118U-I: Female DB78 CP-118U: Female DB62 CP-138U-I: Female DB78 CP-138U: Female DB62 CP-168U : Female DB62 CP-114UL/ CP-114UL-I: Female DB44 CP-134U/CP-134U-I : Female DB44 CP-104UL : Female DB44 CP-104JU :...
  • Page 12 Universal PCI Board User’s Manual Introduction No. of Ports: 8 Ports: CP-118U/CP-118U-I CP-138U/CP-138U-I CP-1168U 4 Ports: CP-114UL/CP-114UL-I CP-134U/CP-134U-I CP-104UL/CP-104JU POS-104UL: 2 Ports: CP-112UL/CP-112UL-I CP-132UL/CP-132UL-I CP-102UL CP-102U/CP-102UF Max. No. of Boards: Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND 4-wire RS-485:...

  • Page 13: Installation Guide

    Universal PCI Board User’s Manual Introduction Driver Support: Windows 2000 Windows XP/2003/Vista/2008 (x86 & x64) Linux 2.4 Linux 2.6 (x86 & x64) Complete driver support information is available at www.moxa.com in the Download center. Power Output: 5V/12V (POS-104UL only) Power and Environment Operating Temperature: 0 to 55°C (32 to 131°F) Operating Humidity:...

  • Page 14: Chapter 2 Hardware Installation

    Hardware Installation Chapter 2 The following topics are covered in this chapter: Overview Configuring the Board and Dimension CP-118U/CP-118-I CP-138U/ CP-138U-I CP-168U CP-114UL/ CP-114UL-I CP-134U /CP-134U-I CP-104UL CP-104JU POS-104UL CP-112UL /CP-112UL-I CP-132UL /CP-132UL-I CP-102UL CP-102U CP-102UF Plugging the Board into an Expansion Slot...

  • Page 15: Overview

    Universal PCI Board User’s Manual Hardware Installation Overview This chapter explains the hardware installation procedure in detail. Since the BIOS automatically assigns the IRQ number and I/O addresses, you will need to install the board before you install the drivers. You can install up to 4 UPCI boards in one system, as long as sufficient I/O address and IRQ number resources are available.
  • Page 16 Universal PCI Board User’s Manual Hardware Installation Onboard termination resistors can be activated individually for each serial port using jumpers JP1 through JP8. JP1 corresponds to serial port 1. Short the jumper pins to activate the termination resistor; leave the jumper pins open to bypass the termination resistor. The onboard DIP switches, S1, S2, and S3, are used to select RS-232, RS-422, or RS-485 mode for each serial port.
  • Page 17 Universal PCI Board User’s Manual Hardware Installation CP-138U/ CP-138U-I Onboard termination resistors can be activated individually for each serial port using jumpers JP1 through JP8. JP1 corresponds to serial port 1. Short the jumper pins to activate the termination resistor; leave the jumper pins open to bypass the termination resistor.
  • Page 18 Universal PCI Board User’s Manual Hardware Installation The onboard DIP switches, S1 and S2, are used to select RS-422 or RS-485 mode for each serial port. There are 8 switches on each bank corresponding to the 8 serial ports. S2 selects between RS-422 and RS-485;...
  • Page 19 Universal PCI Board User’s Manual Hardware Installation 4 Ports CP-114UL/ CP-114UL-I 120 mm 121 mm 64.4 mm 41.7 mm 120 mm (4.72 in) 121 mm (4.76 in) 64.4 mm (2.53 in) 41.7 mm (1.64 in)
  • Page 20 Universal PCI Board User’s Manual Hardware Installation Onboard termination resistors can be activated individually for each serial port using jumpers JP1 through JP4. JP1 corresponds to serial port 1. Short the jumper pins to activate the termination resistor; leave the jumper pins open to bypass the termination resistor. The onboard DIP switches, S1, S2, and S3, are used to select RS-232, RS-422, or RS-485 mode for each serial port.
  • Page 21 Universal PCI Board User’s Manual Hardware Installation Onboard termination resistors can be activated individually for each serial port using jumpers JP1 through JP4. JP1 corresponds to serial port 1. Short the jumper pins to activate the termination resistor; leave the jumper pins open to bypass the termination resistor. The onboard DIP switches, S1 and S2, are used to select RS-422 or RS-485 mode for each serial port.
  • Page 22 Universal PCI Board User’s Manual Hardware Installation CP-104UL This board does not require configuration. CP-104JU This board does not require configuration.
  • Page 23 Universal PCI Board User’s Manual Hardware Installation POS-104UL Step b Step a Port 1 Port 2 Port 3 Port 4 The onboard jumpers are used to specify the pin 9 power signal for each serial port. Step a The top row of jumper pins selects the source of 12V power; the bottom row of jumper pins selects the source of 5V power: Bus power External power...
  • Page 24 Universal PCI Board User’s Manual Hardware Installation CP-112UL /CP-112UL-I Onboard termination resistors can be activated individually for each serial port using jumpers JP1 and JP2. JP1 corresponds to serial port 1. Short the jumper pins to activate the termination resistor; leave the jumper pins open to bypass the termination resistor.
  • Page 25 Universal PCI Board User’s Manual Hardware Installation CP-132UL /CP-132UL-I Onboard termination resistors can be activated individually for each serial port using jumpers JP1 and JP2. JP1 corresponds to serial port 1. Short the jumper pins to activate the termination resistor; leave the jumper pins open to bypass the termination resistor.
  • Page 26 Universal PCI Board User’s Manual Hardware Installation CP-102UL This board does not require configuration. CP-102U COM1 COM2 This board does not require configuration. 2-13...
  • Page 27 Universal PCI Board User’s Manual Hardware Installation CP-102UF 120 mm (4.72 in) P1 P2 CP-102UF Normal Ring Port 1 Port 2 16 mm (0.63 in) 41.7 mm (1.64 in) The onboard DIP switches are used to configure the CP-102UF for “Ring mode” or “Normal”. When using the CP-102UF board, your PC can be included as one node of a fiber ring formed using Moxa’s own TCF-142 serial-to-fiber converter.

  • Page 28: Plugging The Board Into An Expansion Slot

    Universal PCI Board User’s Manual Hardware Installation Plugging the Board into an Expansion Slot ATTENTION Safety First! To avoid damaging your system and board, make sure your PC’s power is turned off before installing your Universal PCI Board. Step 1: Power off the PC. Step 2: Shut off the power to any peripheral devices and remove the PC’s cover.

  • Page 29: Driver Installation: Windows Vista/2008

    Driver Installation: Windows Vista/2008 Chapter 3 The following topics are covered in this chapter: Overview Installing the Driver Installing the Ports Verifying the Installation Configuring the Ports Disabling the Board Uninstalling the Board...

  • Page 30: Overview

    Universal PCI Board User’s Manual Driver Installation: Windows Vista/2008 Overview This chapter explains how to install, configure, update, and remove the board drivers for Windows Vista. The following models are supported: 2 Ports 4 Ports 8 Ports CP-112UL/ CP-112UL-I CP-114UL / CP-114UL-I CP-118U / CP-118U-I CP-132UL / CP-132UL-I CP-134U / CP-134U-I...

  • Page 31: Installing The Driver

    Universal PCI Board User’s Manual Driver Installation: Windows Vista/2008 Installing the Driver The following instructions show how to install the driver for the first time under Windows Vista. You will need to plug the board in an available PCI or PCI-X slot first, before installing the driver. The installation procedure for Windows 2008 is similar.
  • Page 32 Universal PCI Board User’s Manual Driver Installation: Windows Vista/2008 Select I don’t have the disc. Show me other options. Select Browse my computer for driver software (advanced).
  • Page 33 Universal PCI Board User’s Manual Driver Installation: Windows Vista/2008 Click Browse and select the appropriate directory on the Document & Software CD for the driver. Drivers for all operating systems are located under the product folder in the \Software directory (e.g., under \CP-118U Series\Software).

  • Page 34: Installing The Ports

    Universal PCI Board User’s Manual Driver Installation: Windows Vista/2008 After the drivers have been installed, click Close to exit the wizard. Installing the Ports After the board and drivers have been installed, an installation wizard will guide you through installation of the newly added serial ports, starting with port 0. 1.
  • Page 35 Universal PCI Board User’s Manual Driver Installation: Windows Vista/2008 Select Browse my computer for driver software (advanced). Click Browse and select the appropriate directory on the Document & Software CD for the driver. Drivers for all operating systems are located under the product folder in the \Software directory (e.g., under \CP-118U Series\Software).
  • Page 36 Universal PCI Board User’s Manual Driver Installation: Windows Vista/2008 If you receive a warning message stating that the Windows can’t verify the publisher of the software, select Install this driver software anyway. After the drivers have been installed, click Close to exit the wizard. The other serial ports will automatically install in the background.

  • Page 37: Verifying The Installation

    Universal PCI Board User’s Manual Driver Installation: Windows Vista/2008 Verifying the Installation You can use Windows Device Manager to verify proper installation. 1. Under My Computer, click System Properties. In the System window, click Device Manager.
  • Page 38 Universal PCI Board User’s Manual Driver Installation: Windows Vista/2008 In the Device Manager window, you should see the UPCI board under Multi-port serial adapters (CP-118U in this example). You should also see Moxa communication ports under Ports (COM & LPT). If you see any special marks, such as a question mark or an exclamation mark, next to the Moxa items, the installation of your module or serial ports was not successful.

  • Page 39: Configuring The Ports

    Universal PCI Board User’s Manual Driver Installation: Windows Vista/2008 Configuring the Ports After the board and serial port drivers are installed, the board’s Properties window will appear. The system will map the ports automatically. You may be prompted to take care of port configuration if other Moxa boards have been installed.

  • Page 40: Disabling The Board

    Universal PCI Board User’s Manual Driver Installation: Windows Vista/2008 Disabling the Board 1. Right-click My Computer and select Properties in the context menu. In the System window, click Device Manager. In Device Manager, right-click the UPCI board under Multi-port serial adapters and select Disable in the context menu.

  • Page 41: Uninstalling The Board

    Universal PCI Board User’s Manual Driver Installation: Windows Vista/2008 Uninstalling the Board 1. Right-click My Computer and select Properties in the context menu. In the System window, click Device Manager. Right-click the UPCI board under Multi-port serial adapters (CP-118U in this example) and select Uninstall in the context menu.

  • Page 42: Driver Installation: Windows Xp/2003

    Driver Installation: Windows XP/2003 Chapter 4 The following topics are covered in this chapter: Overview Installing the Driver Installing the Ports Verifying the Installation Configuring the Ports Using PComm Using Event Log Disabling the Board Uninstalling the Board...

  • Page 43: Overview

    Universal PCI Board User’s Manual Driver Installation: Windows XP/2003 Overview This chapter explains how to install, configure, update, and remove the board drivers for Windows XP/2003. The following models are supported: 2 Ports 4 Ports 8 Ports CP-112UL/ CP-112UL-I CP-114UL / CP-114UL-I CP-118U / CP-118U-I CP-132UL / CP-132UL-I CP-134U / CP-134U-I...

  • Page 44: Installing The Driver

    Universal PCI Board User’s Manual Driver Installation: Windows XP/2003 Installing the Driver The following instructions show how to install the driver for the first time under Windows XP. The same procedure is used for Windows 2003. You will need to plug the board in an available PCI or PCI-X slot first, before installing the driver.
  • Page 45 Universal PCI Board User’s Manual Driver Installation: Windows XP/2003 Select Install from a list or specific location (Advanced) and click Next to continue. Select Search for the best driver in these locations and Include this location in the search. Click Browse and select the appropriate directory on the Document & Software CD for the driver.
  • Page 46 Universal PCI Board User’s Manual Driver Installation: Windows XP/2003 If you see a warning that the software has not passed Windows Logo testing, click Continue Anyway. Windows will install the drivers. When the installation is complete, click Finish.

  • Page 47: Installing The Ports

    Universal PCI Board User’s Manual Driver Installation: Windows XP/2003 Installing the Ports After the board and drivers have been installed, an installation wizard will guide you through installation of the newly added serial ports, starting with port 0. 1. When prompted to connect to Windows Update, select No, not this time and click Next to continue.
  • Page 48 Universal PCI Board User’s Manual Driver Installation: Windows XP/2003 Select Install from a list or specific location (Advanced) and click Next to continue. 2. Select Search for the best driver in these locations and Include this location in the search. Click Browse and select the appropriate directory on the Document &...
  • Page 49 Universal PCI Board User’s Manual Driver Installation: Windows XP/2003 If you see a warning that the software has not passed Windows Logo testing, click Continue Anyway. After the drivers for the serial port have been installed, click Finish to close the wizard. Repeat this process for the remaining serial ports.

  • Page 50: Verifying The Installation

    Universal PCI Board User’s Manual Driver Installation: Windows XP/2003 Verifying the Installation You can use Windows Device Manager to verify proper installation of the board. 1. Right-click My Computer and select Properties in the context menu.
  • Page 51 Universal PCI Board User’s Manual Driver Installation: Windows XP/2003 In the Hardware tab, click Device Manager. 4-10...
  • Page 52 Universal PCI Board User’s Manual Driver Installation: Windows XP/2003 In the Device Manager window, you should see your UPCI board under Multi-port serial adapters (CP-118U in this example). You should also see Moxa communication ports under Ports (COM & LPT). If you see any special marks, such as a question mark or an exclamation mark, next to the Moxa items, the installation of the board was not successful.

  • Page 53: Configuring The Ports

    Universal PCI Board User’s Manual Driver Installation: Windows XP/2003 Configuring the Ports After the board and serial port drivers are installed, the board’s Properties window will appear. The system will map the ports automatically. You may be prompted to take care of port configuration if other Moxa boards have been installed.

  • Page 54: Using Pcomm

    Universal PCI Board User’s Manual Driver Installation: Windows XP/2003 Using PComm PComm Diagnostic is a useful program for checking the board’s status. It provides internal and external testing of IRQ, TxD/RxD, UART, CTS/RTS, DTR/DSR, and other items. You can use PComm Diagnostic to verify that the module and serial ports are working properly.

  • Page 55: Uninstalling The Board

    Universal PCI Board User’s Manual Driver Installation: Windows XP/2003 In the Hardware tab, click Device Manager. In Device Manager, right-click the UPCI board under Multi-port serial adapters and select Disable in the context menu. This will disable the board. Uninstalling the Board 1.
  • Page 56 Universal PCI Board User’s Manual Driver Installation: Windows XP/2003 In the Hardware tab, click Device Manager. Right-click the UPCI board under Multi-port serial adapters (CP-118U in this example) and select Uninstall in the context menu. A confirmation dialog will appear. Click OK to uninstall the device. 4-15...

  • Page 57: Driver Installation: Windows 2000

    Driver Installation: Windows 2000 Chapter 5 The following topics are covered in this chapter: Overview Installing the Driver Installing the Ports Verifying the Installation Configuring the Ports Using PComm Using Event Log Disabling the Board Uninstalling the Board...

  • Page 58: Overview

    Universal PCI Board User’s Manual Driver Installation: Windows 2000 Overview This chapter explains how to install, configure, update, and remove the board drivers for Windows 2000. The following models are supported: 2 Ports 4 Ports 8 Ports CP-112UL/ CP-112UL-I CP-114UL / CP-114UL-I CP-118U / CP-118U-I CP-132UL / CP-132UL-I CP-134U / CP-134U-I...

  • Page 59: Installing The Driver

    Universal PCI Board User’s Manual Driver Installation: Windows 2000 Installing the Driver The following instructions show how to install the driver for the first time under Windows 2000. You will need to plug the board in an available PCI or PCI-X slot first, before installing the driver. ATTENTION The following steps will not be necessary if a Moxa UPCI board was already installed on your computer.
  • Page 60 Universal PCI Board User’s Manual Driver Installation: Windows 2000 Select Search for a suitable driver for my device (recommended) and click Next to continue. Select Specify a location and click Next to continue.
  • Page 61 Universal PCI Board User’s Manual Driver Installation: Windows 2000 Click Browse and select the appropriate directory on the Document & Software CD for the driver. Drivers for all operating systems are located under the product folder in the \Software directory (e.g., under \CP-118U Series\Software). Select the \Windows 2K folder and click Next to continue.
  • Page 62 Universal PCI Board User’s Manual Driver Installation: Windows 2000 If you see a warning that the digital signature has not been found, click Yes to proceed. Windows will install the drivers. When the installation is complete, click Finish.

  • Page 63: Installing The Ports

    Universal PCI Board User’s Manual Driver Installation: Windows 2000 Installing the Ports After the board and drivers have been installed, an installation wizard will guide you through installation of the newly added serial ports, starting with port 0. 1. When the installation wizard opens, click Next to proceed. Select Search for a suitable driver for my device (recommended) and click Next to continue.
  • Page 64 Universal PCI Board User’s Manual Driver Installation: Windows 2000 Select Specify a location and click Next to continue. Click Browse and select the appropriate directory on the Document & Software CD for the driver. Drivers for all operating systems are located under the product folder in the \Software directory (e.g., under \CP-118U Series\Software).
  • Page 65 Universal PCI Board User’s Manual Driver Installation: Windows 2000 After the wizard has located the driver files, click Next to proceed. After the drivers have been installed, click Finish to exit the wizard. The other serial ports will automatically install in the background.

  • Page 66: Verifying The Installation

    Universal PCI Board User’s Manual Driver Installation: Windows 2000 Verifying the Installation You can use Windows Device Manager to verify proper installation of the board. 1. Right-click My Computer and select Properties in the context menu. In the Hardware tab, click Device Manager. In the Device Manager window, you should see your UPCI board under Multi-port serial adapters (CP-118U in this example).

  • Page 67: Configuring The Ports

    Universal PCI Board User’s Manual Driver Installation: Windows 2000 If you see any special marks, such as a question mark or an exclamation mark, next to the Moxa items, the installation of the board was not successful. Examine the Windows event log for details.
  • Page 68 Universal PCI Board User’s Manual Driver Installation: Windows 2000 Under Port Number, select a COM number to assign to the serial port. Select Auto Enumerating COM Number to map subsequent ports in numerical order. For example, if COM 3 is assigned to Port 1, then COM 4 will be automatically assigned to Port 2. Select an Rx FIFO Trigger and Tx FIFO Size.

  • Page 69: Using Pcomm

    Universal PCI Board User’s Manual Driver Installation: Windows 2000 Using PComm PComm Diagnostic is a useful program for checking the board’s status. It provides internal and external testing of IRQ, TxD/RxD, UART, CTS/RTS, DTR/DSR, and other items. You can use PComm Diagnostic to verify that the module and serial ports are working properly.

  • Page 70: Uninstalling The Board

    Universal PCI Board User’s Manual Driver Installation: Windows 2000 In the Hardware tab, click Device Manager. In Device Manager, right-click the UPCI board under Multi-port serial adapters and select Disable in the context menu. This will disable the board. Uninstalling the Board 1.
  • Page 71 Universal PCI Board User’s Manual Driver Installation: Windows 2000 In the Hardware tab, click Device Manager. Right-click the UPCI board under Multi-port serial adapters (CP-118U in this example) and select Uninstall in the context menu. At the warning prompt, click OK to uninstall the device. 5-15...

  • Page 72: Driver Installation: Windows Nt

    Driver Installation: Windows NT Chapter 6 The following topics are covered in this chapter: Overview Installing the Driver Configuring the Ports Removing the Board Updating the Driver Removing the Driver...

  • Page 73: Overview

    Universal PCI Board User’s Manual Driver Installation: Windows NT Overview This chapter explains how to install, configure, update, and remove the board drivers for Windows NT. The following models are supported: 2 Ports 4 Ports 8 Ports CP-112UL/ CP-112UL-I CP-114UL / CP-114UL-I CP-118U / CP-118U-I CP-132UL / CP-132UL-I CP-134U / CP-134U-I...

  • Page 74: Installing The Driver

    Universal PCI Board User’s Manual Driver Installation: Windows NT Installing the Driver You will need to plug the board in an available PCI or PCI-X slot first, before installing the driver. Note that these instructions use the CP-168U as an example. The procedure for installing all models is the same.
  • Page 75 Universal PCI Board User’s Manual Driver Installation: Windows NT When prompted, select your board model (Smartio/Industio Family multiport board in this example) and click OK. After the files have been installed, a configuration panel will open. This is where boards are installed, configured, and removed.
  • Page 76 Universal PCI Board User’s Manual Driver Installation: Windows NT The board will now appear in the configuration panel (CP-168U Series in this example). Click OK to return to the Network applet. After that, click OK again to exit the Network applet Restart the PC.
  • Page 77 Universal PCI Board User’s Manual Driver Installation: Windows NT Configuring the Ports 1. In Windows Control Panel, open the Network applet. In the Adapters tab, UPCI boards will appear as a type of Moxa adapter (Moxa Smartio/Industio Family Adapter in this example). Select the Moxa adapter and click Properties…...
  • Page 78 Universal PCI Board User’s Manual Driver Installation: Windows NT Select a port to configure and click Port Setting. Under Port Number, select a COM number to assign to the serial port. Select Auto Enumerating COM Number to map subsequent ports in numerical order. For example, if COM 3 is assigned to Port 1, then COM 4 will be automatically assigned to Port 2.

  • Page 79: Removing The Board

    Universal PCI Board User’s Manual Driver Installation: Windows NT Click OK to approve the settings for the selected port. Continue in the same way to configure the other ports. When you have finished setting up the ports, click OK to close the Properties window and apply the new port settings.

  • Page 80: Removing The Driver

    Universal PCI Board User’s Manual Driver Installation: Windows NT Removing the Driver 1. In Windows Control Panel, open the Network applet. In the Adapters tab, UPCI boards will appear as a type of Moxa adapter (Moxa Smartio/Industio Family Adapter in this example). Select the Moxa adapter and click Remove.

  • Page 81: Driver Installation: Windows 95/98/Me

    Driver Installation: Windows 95/98/ME Chapter 7 The following topics are covered in this chapter: Overview Installing the Driver Windows 95 Windows 98 and ME Configuring the Ports Updating the Driver Removing the Driver...

  • Page 82: Overview

    Universal PCI Board User’s Manual Driver Installation: Windows 95/98/ME Overview This chapter explains how to install, configure, update, and remove the board drivers for Windows 95/98/ME. The following models are supported: 2 Ports 4 Ports 8 Ports CP-112UL/ CP-112UL-I CP-114UL / CP-114UL-I CP-118U / CP-118U-I CP-132UL / CP-132UL-I CP-134U / CP-134U-I...

  • Page 83: Installing The Driver

    Universal PCI Board User’s Manual Driver Installation: Windows 95/98/ME Installing the Driver The following instructions show how to install the driver for the first time under Windows 95/98/ME. You will need to plug the board in an available PCI or PCI-X slot first, before installing the driver. ATTENTION The following steps will not be necessary if a Moxa UPCI board was already installed on your computer.
  • Page 84 Universal PCI Board User’s Manual Driver Installation: Windows 95/98/ME Click Browse and select the appropriate directory on the Document & Software CD for the driver. Drivers for all operating systems are located under the product folder in the \Software directory (e.g., under \CP-168U \Software). Select the \Win9x folder and click OK to continue. After Windows finds the drivers, click Finish.

  • Page 85: Windows 98 And Me

    Universal PCI Board User’s Manual Driver Installation: Windows 95/98/ME Windows 98 and ME 1. After the board is physically installed and the PC boots up, Windows will automatically detect the new board and the Found New Hardware Wizard window will open. Click Next to continue. Select Display a list...
  • Page 86 Universal PCI Board User’s Manual Driver Installation: Windows 95/98/ME Select Other Devices and click Next. Select Have Disk… Click Browse and select the appropriate directory on the Document & Software CD for the driver. Drivers for all operating systems are located under the product folder in the \Software directory (e.g., under \CP-168U \Software).

  • Page 87: Configuring The Ports

    Universal PCI Board User’s Manual Driver Installation: Windows 95/98/ME After Windows installs the drivers, click Finish. Configuring the Ports You may configure the COM ports after the board and drivers have been installed. 1. In the Windows Control Panel, open the System applet.
  • Page 88 Universal PCI Board User’s Manual Driver Installation: Windows 95/98/ME In the Device Manager tab, expand the Moxa Smartio/Industio multiport board category by clicking the “+” sign next to it. Select the desired board (CP-168U in this example) and click Properties. 2.
  • Page 89 Universal PCI Board User’s Manual Driver Installation: Windows 95/98/ME Under Port Number, select a COM number to assign to the serial port. Select Auto Enumerating COM Number to map subsequent ports in numerical order. For example, if COM 3 is assigned to Port 1, then COM 4 will be automatically assigned to Port 2. Select an Rx FIFO Trigger and Tx FIFO Size.

  • Page 90: Updating The Driver

    Universal PCI Board User’s Manual Driver Installation: Windows 95/98/ME Updating the Driver You may configure the COM ports after the board and drivers have been installed. 1. In the Windows Control Panel, open the System applet. In the Device Manager tab, expand the Moxa Smartio/Industio multiport board category by clicking the “+”...
  • Page 91 Universal PCI Board User’s Manual Driver Installation: Windows 95/98/ME In the Driver tab, click Update Driver..Select the appropriate model (CP-168U in this example) and click Have Disk... When prompted, select the appropriate directory on the Document & Software CD for the driver. Drivers for all operating systems are located under the product folder in the \Software directory (e.g., under \CP-118U Series\Software).

  • Page 92: Removing The Driver

    Universal PCI Board User’s Manual Driver Installation: Windows 95/98/ME Removing the Driver 1. In the Windows Control Panel, open the Add/Remove Programs applet. On the Install/Uninstall tab, select Moxa Smartio/Industio Driver and click Add/Remove. When prompted, click Yes to confirm that you want to remove the driver. After the driver has been removed, click OK to return to the Add/Remove Programs applet.

  • Page 93: Driver Installation: Windows Ce

    Driver Installation: Windows CE Chapter 8 The following topics are covered in this chapter: Windows CE 5.0 Installing the Driver Windows CE 6.0 Installation...

  • Page 94: Windows Ce 5.0

    Universal PCI Board User’s Manual Driver Installation: Windows CE 5.0 Windows CE 5.0 In this section, we explain how to install Moxa Universal PCI boards under WinCE 5.0. These instructions are intended for users who are familiar with the Windows CE Platform Builder 5.0 Toolkit, and would like to install one or more Moxa Tech products.
  • Page 95 Universal PCI Board User’s Manual Driver Installation: Windows CE 5.0 2. Enter a Name for Workspace and press Next. 3. When you see Board Support Packages, Design Template, Applications & Media, Networking & Communications, OBEX Server, select what you need to build your own environment.
  • Page 96 Universal PCI Board User’s Manual Driver Installation: Windows CE 5.0...
  • Page 97 Universal PCI Board User’s Manual Driver Installation: Windows CE 5.0...
  • Page 98 Universal PCI Board User’s Manual Driver Installation: Windows CE 5.0 Open Manage Catalog Items (File Manage Catalog Items). In the Catalog (View Catalog), browse to \Third Party\Device Drivers\ MOXA Smartio/Industio-PCI, PC/104-Plus. Right-click on the driver Prefix COM or Prefix MXU you would like to include and choose Add to OS Design.
  • Page 99 Universal PCI Board User’s Manual Driver Installation: Windows CE 5.0 After adding Moxa Tech drivers into your OS Design, a new project is automatically added to your workspace. The project name is mxserce5. The project can be accessed from File View (View File View).

  • Page 100: Windows Ce 6.0 Installation

    Universal PCI Board User’s Manual Driver Installation: Windows CE 5.0 Finally, copy your image file to the target Host. Note: If you have created a Windows CE Platform Builder in the development environment, you can skip steps 2, 3, and 4. Windows CE 6.0 Installation The following procedure explains how to install the CP-102U multiport serial board driver under WinCE 6.0.
  • Page 101 Universal PCI Board User’s Manual Driver Installation: Windows CE 5.0 3. The CE 6.0 OS Design Wizard will start. Click “Next” to get the Board Support Packages page and select CEPC: x86. Click “Next” to continue.
  • Page 102 Universal PCI Board User’s Manual Driver Installation: Windows CE 5.0 4. On the Design Templates page select your environment, PDA Device for example. Click “Next” to continue. 8-10...
  • Page 103 Universal PCI Board User’s Manual Driver Installation: Windows CE 5.0 5. On the Design Template Variants page select your environment, Mobile Handheld for example. Click “Next” to continue. 6. On the Application & Media page select your environment, .NET Compact Framework 2.0, ActiveSync, and Quarter VGA Resources-Portrait Mode for example.
  • Page 104 Universal PCI Board User’s Manual Driver Installation: Windows CE 5.0 7. On the Networking & Communication page select your environment, TCP/IPv6 Support for example. Click “Next” to continue. 8. When the OS Design Project Wizard Complete screen appears, click “Finish.” The catalog notification will pop up.
  • Page 105 Universal PCI Board User’s Manual Driver Installation: Windows CE 5.0 9. Open the project you created. Click Project on top of the screen, and select Add Existing Subproject. Specify the PCI MSB Mxser driver location with the subproject file “mxserce6.pbpxml.” 8-13...
  • Page 106 Universal PCI Board User’s Manual Driver Installation: Windows CE 5.0 10. After the subproject is added, you may configure the “mxserce6.reg” registry file with the location [HKEY_LOCAL_MACHINE\Drivers\BuiltIn\PCI\Template\MOXAPCICOM]. 11. Configuring FIFO and index: Setting the FIFO registry value to 1 enables the FIFO function and 0 disables it.
  • Page 107 Universal PCI Board User’s Manual Driver Installation: Windows CE 5.0 12. Open Build and select Advanced Build Commands and choose Build Sysgen. This operation will take you a few minutes. 13. After building sysgen, select Build and choose Make Run-Time Image to create the WinCE OS image.

  • Page 108: Driver Installation: Non Windows

    Driver Installation: Non Windows Chapter 9 The following topics are covered in this chapter: Overview Installing the Driver Setting up the Driver Loading the Driver Unloading the Driver Linux (32-bit/64-bit)

  • Page 109: Overview

    Universal PCI Board User’s Manual Driver Installation: Non Windows Overview This chapter explains how to install, configure, update, and remove the board drivers for non Windows operating systems. Before installing the software, be sure to install the hardware first. For details on installing the hardware, please refer to Chapter 2.

  • Page 110: Setting Up The Driver

    Universal PCI Board User’s Manual Driver Installation: Non Windows Setting up the Driver The following instructions are not intended to illustrate every function of the setup program. For more detailed information, please refer to the help files by pressing F1 in the setup program. 1.
  • Page 111 Universal PCI Board User’s Manual Driver Installation: Non Windows The settings for each port will be displayed. Verify the settings and make any necessary changes.

  • Page 112: Loading The Driver

    Universal PCI Board User’s Manual Driver Installation: Non Windows Port number: This is the port ID of each port. Application software will refer to a port by its port number (ID). Port numbers must be unique; duplicate port numbers are not allowed. The port number can range from 0 to 255 as long as it does not overlap with another port.

  • Page 113: Unloading The Driver

    Universal PCI Board User’s Manual Driver Installation: Non Windows Unloading the Driver To unload or release the driver from memory, enter DP-DRV /Q at the DOS prompt. Linux (32-bit/64-bit) The Linux drivers support the following models: CP-102U CP-114UL CP-132UL-I CP-138U-I CP-102UL CP-118U CP-134U...

  • Page 114: Sco

    Universal PCI Board User’s Manual Driver Installation: Non Windows SCO OpenServer 5 SCO OpenServer 6 SCO UnixWare 7 Follow the steps given in this section to install the SCO OpenServer 5/6 & SCO UnixWare 7 driver. The installation procedures for SCO UnixWare 7 and SCO OpenServer 5/6 are similar. 1.
  • Page 115 Universal PCI Board User’s Manual Driver Installation: Non Windows 5. After rebooting computer, key in “moxaadm”, you will see MAIN MENU, select Basic Configuration. MAIN MENU Basic Configuration Advanced Configuration Interface Configuration Port Monitoring Terminal Emulation Driver Removal Exit 6. When you see the following screen, press Enter to select the MOXA Multiport Serial Board you installed by port and by model.

  • Page 116: Serial Programming Tools

    Serial Programming Tools Chapter 10 The following topics are covered in this chapter: Overview Serial Programming Library PComm Utilities Installation PComm Diagnostic PComm Monitor PComm Terminal Emulator...

  • Page 117: Overview

    Universal PCI Board User’s Manual Serial Programming Tools Overview Moxa provides Windows serial programming libraries and troubleshooting utilities that are easy to use and powerful. You can use these tools to reduce software development time. The serial communication library is useful for developing applications for data communications, remote access, data acquisition, and industrial control.

  • Page 118: Pcomm Monitor

    Universal PCI Board User’s Manual Serial Programming Tools To run the Diagnostic program, go to Start Program PComm Lite Diagnostic. PComm Monitor PComm Monitor is designed for Moxa boards in Windows NT only. It allows you to monitor data transmission of selected Moxa COM ports. It monitors data transmission, throughput, and line status at regular intervals.

  • Page 119: Pcomm Terminal Emulator

    Universal PCI Board User’s Manual Serial Programming Tools PComm Terminal Emulator PComm Terminal Emulator can be used to connect to a serial port to verify that data transmission is functioning correctly. It supports multiple windows and both VT100 and ANSI terminal types. You can interactively transfer data, periodically send patterns, and transfer files using ASCII, XMODEM, YMODEM, ZMODEM, and KERMIT protocols.

  • Page 120: Chapter 11 Pin Assignments

    Pin Assignments Chapter 11 The following topics are covered in this chapter: Overview CP-102U CP-102UL CP-104JU CP-104UL CP-114UL CP-118U CP-118U-I CP-132UL, CP-132UL-I CP-134U, CP-134U-I CP-138U CP-138U-I CP-168U POS-104UL CP-102UF Serial Connectors...

  • Page 121: Overview

    Universal PCI Board User’s Manual Pin Assignments Overview This chapter provides the pin assignments for each Moxa UPCI multiport serial board, as well as the pin assignments for the optional accessories. Except for the CP-102U and CP-102UF, which have two built-in DB9 (male) serial connectors and an ST type fiber connector, respectively, Moxa’s UPCI boards do not have built-in serial port connectors.

  • Page 122: Cp-102U

    Universal PCI Board User’s Manual Pin Assignments CP-102U This board supports RS-232 only. Model Board Connector Supported Accessories Serial Connectors CP-102U 2×DB9 (male) DB9 (Male): RS-232 Signal CP-102UL This board supports RS-232 only. Model Board Connector Supported Accessories Serial Connectors CP-102UL DB25 (female) CBL-M25M9x2-50...

  • Page 123: 8-Pin Rj45: Rs-232

    Universal PCI Board User’s Manual Pin Assignments CP-104JU This board supports RS-232 only. Model Board Connector Supported Accessories Serial Connectors CBL-RJ45M9-150 4×DB9 (male) CP-104JU RJ45 CBL-RJ45M25-150 4×DB25 (male) 8-pin RJ45: RS-232 Signal CP-104UL This board supports RS-232 only. Model Board Connector Supported Accessories Serial Connectors CBL-M44M9x4-50...

  • Page 124: Db44 (Female): Rs-232

    Universal PCI Board User’s Manual Pin Assignments DB44 (Female): RS-232 Signal Signal Signal TxD3 CTS3 DCD3 RxD3 DTR3 RTS3 DSR3 TxD2 CTS2 DCD2 RxD2 DTR2 RTS2 DSR2 TxD1 CTS1 DCD1 RxD1 DTR1 RTS1 DSR1 DCD0 TxD0 CTS0 RxD0 DTR0 RTS0 DSR0 CP-114UL This board supports RS-232, RS-422, and RS-485 (both 2 and 4-wire).

  • Page 125: Db44 (Female): Rs-422, Rs-485 (4-Wire)

    Universal PCI Board User’s Manual Pin Assignments DB44 (Female): RS-422, RS-485 (4-wire) Signal Signal Signal RxD3+(B) TxD3-(A) TxD3+(B) RxD3-(A) RxD2+(B) TxD2-(A) TxD2+(B) RxD2-(A) RxD1+(B) TxD1-(A) TxD1+(B) RxD1-(A) TxD0-(A) RxD0+(B) RxD0-(A) RxD0-(A) DB44 (Female): RS-485 (2-wire) Signal Signal Signal Data3+(B) Data3-(A) Data2+(B) Data2-(A) Data1+(B)

  • Page 126: Db62 (Female): Rs-232

    Universal PCI Board User’s Manual Pin Assignments CP-118U Port 6 Port 3 Port 8 Port 7 Port 5 Port 4 Port 2 Port 1 This board supports RS-232, RS-422, and RS-485 (both 2 and 4-wire). Model Board Connector Supported Accessories Serial Connectors OPT8-M9 8×DB9 (male)

  • Page 127: Db62 (Female): Rs-422, Rs-485 (4-Wire)

    Universal PCI Board User’s Manual Pin Assignments DB62 (Female): RS-422, RS-485 (4-wire) Signal Signal Signal RxD0+(B) TxD0+(B) RxD0-(A) TxD1+(B) TxD0-(A) RxD1+(B) TxD1-(A) RxD1-(A) RxD2+(B) TxD2+(B) RxD2-(A) TxD3+(B) TxD2-(A) RxD3+(B) TxD3-(A) RxD3-(A) TxD4+(B) RxD4+(B) TxD4-(A) RxD4-(A) RxD5+(B) TxD5+(B) RxD5-(A) TxD6+(B) TxD5-(A) RxD6+(B) TxD6-(A) RxD6-(A)

  • Page 128: Db62 (Female): Rs-485 (2-Wire)

    Universal PCI Board User’s Manual Pin Assignments DB62 (Female): RS-485 (2-wire) Signal Signal Signal Data0+(B) Data0-(A) Data1+(B) Data1-(A) Data2+(B) Data2-(A) Data3+(B) Data3-(A) Data4+(B) Data4-(A) Data5+(B) Data5-(A) Data6+(B) Data6-(A) Data7+(B) Data7-(A) CP-118U-I This board supports RS-232, RS-422, and RS-485 (both 2 and 4-wire). Model Board Connector Supported Accessories...

  • Page 129: Db78 (Female): Rs-422, Rs-485 (4-Wire)

    Universal PCI Board User’s Manual Pin Assignments Signal Signal Signal GND7 DTR5 CTS2 TxD7 RTS4 DSR2 DTR4 CTS1 GND6 DSR1 TxD6 RTS3 GND5 DTR3 CTS0 TxD5 RTS2 DSR0 DTR2 DCD7 GND4 RxD7 TxD4 RTS1 DCD6 GND3 DTR1 RxD6 TxD3 RTS0 DTR0 DCD5 GND2...

  • Page 130: Db78 (Female): Rs-485 (2-Wire)

    Universal PCI Board User’s Manual Pin Assignments Signal Signal Signal GND2 TxD5+(B) RxD2+(B) TxD4-(A) GND1 TxD4+(B) RxD1+(B) TxD3-(A) GND0 TxD3+(B) RxD0+(B) TxD2-(A) TxD2+(B) RxD7-(A) TxD1-(A) RxD6-(A) TxD1+(B) TxD0-(A) TxD0+(B) DB78 (Female): RS-485 (2-wire) Signal Signal Signal GND7 Data2+(B) Data4-(A) Data7+(B) GND1 Data1+(B) GND6...

  • Page 131: Db25 (Female): Rs-485 (4-Wire)

    Universal PCI Board User’s Manual Pin Assignments Signal Signal CTS1-(A) TxD1-(A) RxD1-(A) GND1 RTS1-(A) CTS1+(B) RTS1+(B) TxD1+(B) RxD1+(B) CTS0-(A) TxD0-(A) RxD0-(A) GND0 RTS0-(A) CTS0+(B) RTS0+(B) TxD0+(B) RxD0+(B) DB25 (Female): RS-485 (4-wire) Signal Signal TxD1-(A) RxD1-(A) GND1 TxD1+(B) RxD1+(B) TxD0-(A) RxD0-(A) GND0 TxD0+(B) RxD0+(B)

  • Page 132: Cp-134U, Cp-134U-I

    Universal PCI Board User’s Manual Pin Assignments Signal Signal Data1-(A) GND1 Data1+(B) Data0-(A) GND0 Data0+(B) CP-134U, CP-134U-I These boards support RS-422 and RS-485 (both 2 and 4-wire). Ports 1 and 2 also support RS-232. Model Board Connector Supported Accessories Serial Connectors CP-134U CBL-M44M9x4-50 4×DB9 (male)

  • Page 133: Db44 (Female): Rs-485 (4-Wire)

    Universal PCI Board User’s Manual Pin Assignments Signal Signal Signal RXD3+(B) CTS3+(B) TXD3-(A) TXD3+(B) RXD3-(A) CTS3-(A) RTS3+(B) RTS3-(A) GND3 RXD2+(B) CTS2+(B) TXD2-(A) TXD2+(B) RXD2-(A) CTS2-(A) RTS2+(B) RTS2-(A) GND2 RXD1+(B) CTS1+(B) TXD1-(A) TXD1+(B) RXD1-(A) CTS1-(A) RTS1+(B) RTS1-(A) GND1 TXD0-(A) RXD0+(B) CTS0+(B) CTS0-(A) TXD0+(B) RXD0-(A)

  • Page 134: Db62 (Female): Rs-422, Rs-485 (4-Wire)

    Universal PCI Board User’s Manual Pin Assignments Signal Signal Signal Data2+(B) Data2-(A) GND2 Data1+(B) Data1-(A) GND1 Data0+(B) Data0-(A) GND0 CP-138U This board supports RS-422 and RS-485 (both 2 and 4-wire). Model Board Connector Supported Accessories Serial Connectors OPT8-M9 8×DB9 (male) CBL-M62M9x8-100 (OPT8D) OPT8B CP-138U...

  • Page 135: Db62 (Female): Rs-485 (2-Wire)

    Universal PCI Board User’s Manual Pin Assignments Signal Signal Signal TxD6-(A) RxD6-(A) TxD7+(B) RxD7+(B) TxD7-(A) RxD7-(A) DB62 (Female): RS-485 (2-wire) Signal Signal Signal Data0+(B) Data0-(A) Data1+(B) Data1-(A) Data2+(B) Data2-(A) Data3+(B) Data3-(A) Data4+(B) Data4-(A) Data5+(B) Data5-(A) Data6+(B) Data6-(A) Data7+(B) Data7-(A) CP-138U-I This board supports RS-422 and RS-485 (both 2 and 4-wire).

  • Page 136: Db78 (Female): Rs-485 (2-Wire)

    Universal PCI Board User’s Manual Pin Assignments Signal Signal Signal GND7 RxD5-(A) RxD7+(B) RxD4-(A) GND6 RxD6+(B) GND5 RxD3-(A) RxD5+(B) RxD2-(A) TxD7-(A) GND4 TxD7+(B) RxD4+(B) TxD6-(A) GND3 RxD1-(A) TxD6+(B) RxD3+(B) RxD0-(A) TxD5-(A) GND2 TxD5+(B) RxD2+(B) TxD4-(A) GND1 TxD4+(B) RxD1+(B) TxD3-(A) GND0 TxD3+(B) RxD0+(B) TxD2-(A)

  • Page 137: Db62 (Female): Rs-232

    Universal PCI Board User’s Manual Pin Assignments Signal Signal Signal GND2 CP-168U This board supports RS-232. With the OPT8F or OPT8Z accessory, it can support RS-422. With the OPT8K or OPT8I accessory, it can support RS-422 and RS-485 (both 2 and 4-wire). Model Board Connector Supported Accessories...

  • Page 138: Db44 (Female): Rs-232

    Universal PCI Board User’s Manual Pin Assignments Model Board Connector Supported Accessories Serial Connectors POS-104UL DB44 (female) CBL-M44M9x4-50(POS) 4×DB9 (male) DB44 (Female): RS-232 Signal Signal Signal TxD3 CTS3 DCD3 RxD3 DTR3 RTS3 DSR3 5V/12V/RI3 TxD2 CTS2 DCD2 RxD2 DTR2 RTS2 DSR2 5V/12V/RI2 TxD1...

  • Page 139: Db25 (Male)

    Universal PCI Board User’s Manual Pin Assignments Accessory Board Connector Serial Connectors CBL-M44M9x4-50 DB44 (female) 4×DB9 (male) CBL-M44M9x4-50(POS) DB44 (female) 4×DB9 (male) CBL-RJ45M9-150 RJ45 4×DB9 (male) OPT8-M9 DB62 (female) 8×DB9 (male) CBL-M62M9x8-100 (OPT8D) CBL-M78M9x8-100 DB78 (female) 8×DB9 (male) The pin assignments for the DB9 (male) serial connector are shown below. There are different pin assignments depending on the serial interface that your board is configured for.

  • Page 140: Db25 (Female)

    Universal PCI Board User’s Manual Pin Assignments The pin assignments for the DB25 (male) serial connector are shown below. There are different pin assignments depending on the serial interface that your board is configured for. RS-422 RS-232 RS-485 (2W) RS-485 (4W) RxD+(B) Data+(B) TxD+(B)

  • Page 141: Rj45

    Universal PCI Board User’s Manual Pin Assignments RS-422 RS-485 (2W) RS-485 (4W) RxD+(B) Data+(B) TxD+(B) RxD-(A) Data-(A) TxD-(A) RJ45 The following accessories provide RJ45 serial connectors for your UPCI board: Accessory Board Connector Serial Connectors OPT8-RJ45 DB62 (female) 8×RJ45 The pin assignments for the RJ45 serial connector are shown below. Only RS-232 is supported. The OPT8-RJ45 accessory should only be used with the CP-118U in RS-232 mode or with the CP-168U.

This manual is also suitable for:

Cp-118u-tCp-118uCp-118u-iCp-138uCp-114ulCp-168u ... Show all

Table of Contents
