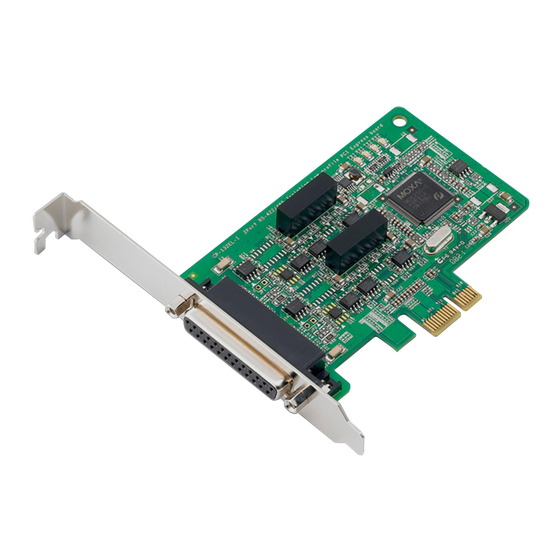

Pci express multiport serial board
Hide thumbs Also See for CP-132EL:
1
2
3
4
5
6

Advertisement

Table of Contents

See also: User Manual
CP-132EL/CP-132EL-I

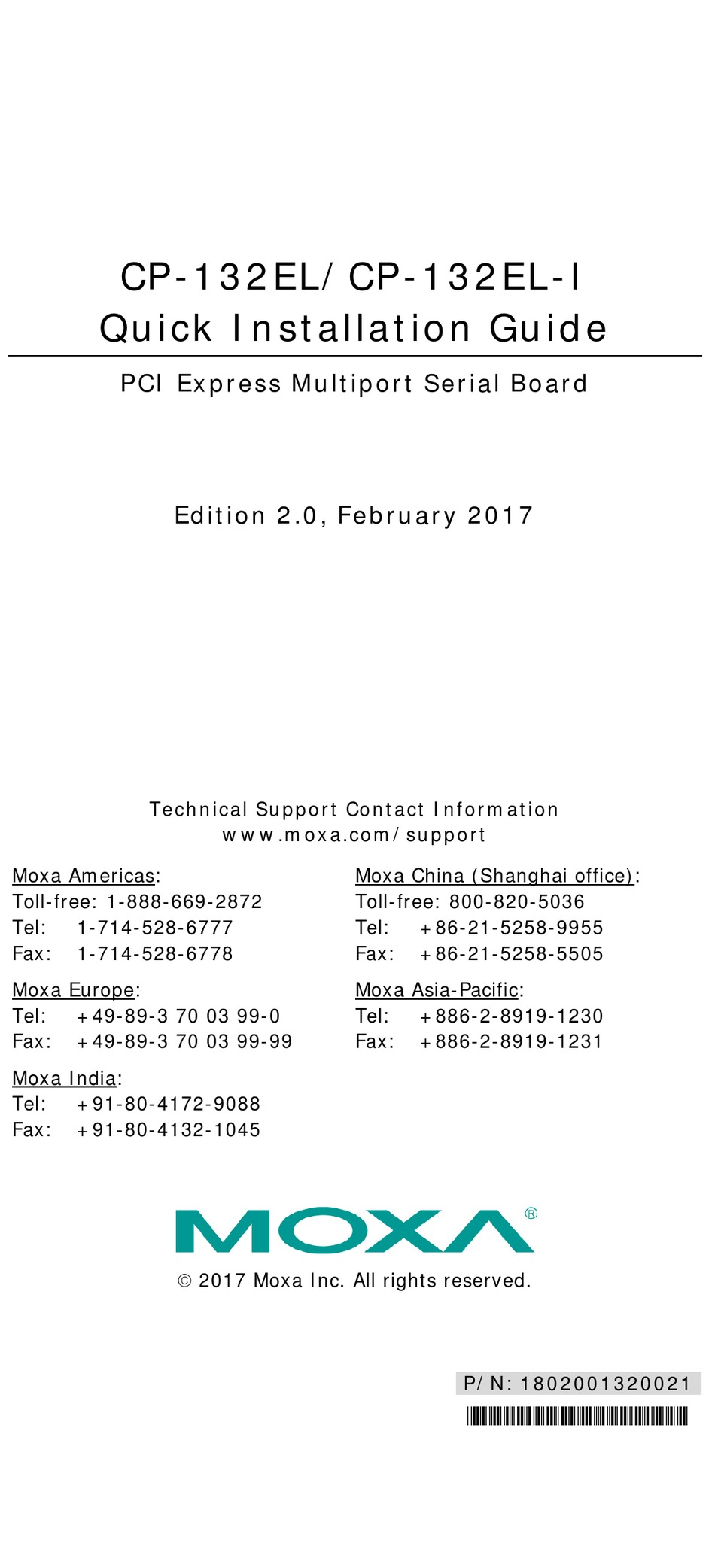

Quick Installation Guide

PCI Express Multiport Serial Board
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
Edition 2.0, February 2017
Technical Support Contact Information
www.moxa.com/support
 2017 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802001320021
*1802001320021*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-132EL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxa Technologies CP-132EL

Summary of Contents for Moxa Technologies CP-132EL

  • Page 1: Quick Installation Guide

    CP-132EL/CP-132EL-I Quick Installation Guide PCI Express Multiport Serial Board Edition 2.0, February 2017 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific:...

  • Page 2: Package Checklist

    Overview Moxa’s new PCI Express multiport serial boards, the CP-132EL and CP-132EL-I, are designed for POS and ATM applications and for use by industrial automation system manufacturers and system integrators. The boards are compatible with all popular operating systems and support data rates of up to 921.6Kbps as well as full modem control signals,...
  • Page 3 Include subfolders, and then click Browse. If the system is a 32-bit (x86) platform, navigate to the \CP-132EL Series\Software\Windows 2008_Vista\x86 folder on the CD, if the system is 64-bit (x64) platform, navigate to the \CP-132EL Series\Software\Windows 2008_Vista\x64 folder on the CD, and then click Next to continue.

  • Page 4: Windows 2000 Driver Installation

    Multi-port serial adapters and Ports (COM & LPT). Click the +sign next to Multi-port serial adapters, right-click on MOXA CP-132EL Series (PCI Express Bus), select Properties, then choose Port Configuration. Click the port to configure Interface (RS-422, 2-wire RS-485, 4-wire RS-485) and Termination Resistor (120Ω, Enable or Disable).

  • Page 5: Pin Assignments

    #cd /moxa/mxser/utility/term #./msterm Pin Assignments The CP-132EL and CP-132EL-I boards have a female DB25 connector on the board. In this section, we give the on-board connector’s pin assignments to facilitate making your own connection cable, and the male DB9 device-side pin assignments for the optional CBL-M25M9x2-50 cable.

  • Page 6: Specifications

    Storage Temperature -20 to 85°C (-4 to 185°F) ESD Protection Embedded 15 KV ESD Protection Optical Isolation 2 KV (only for CP-132EL-I) Regulatory Approvals EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4,...
