PCI Express Boards

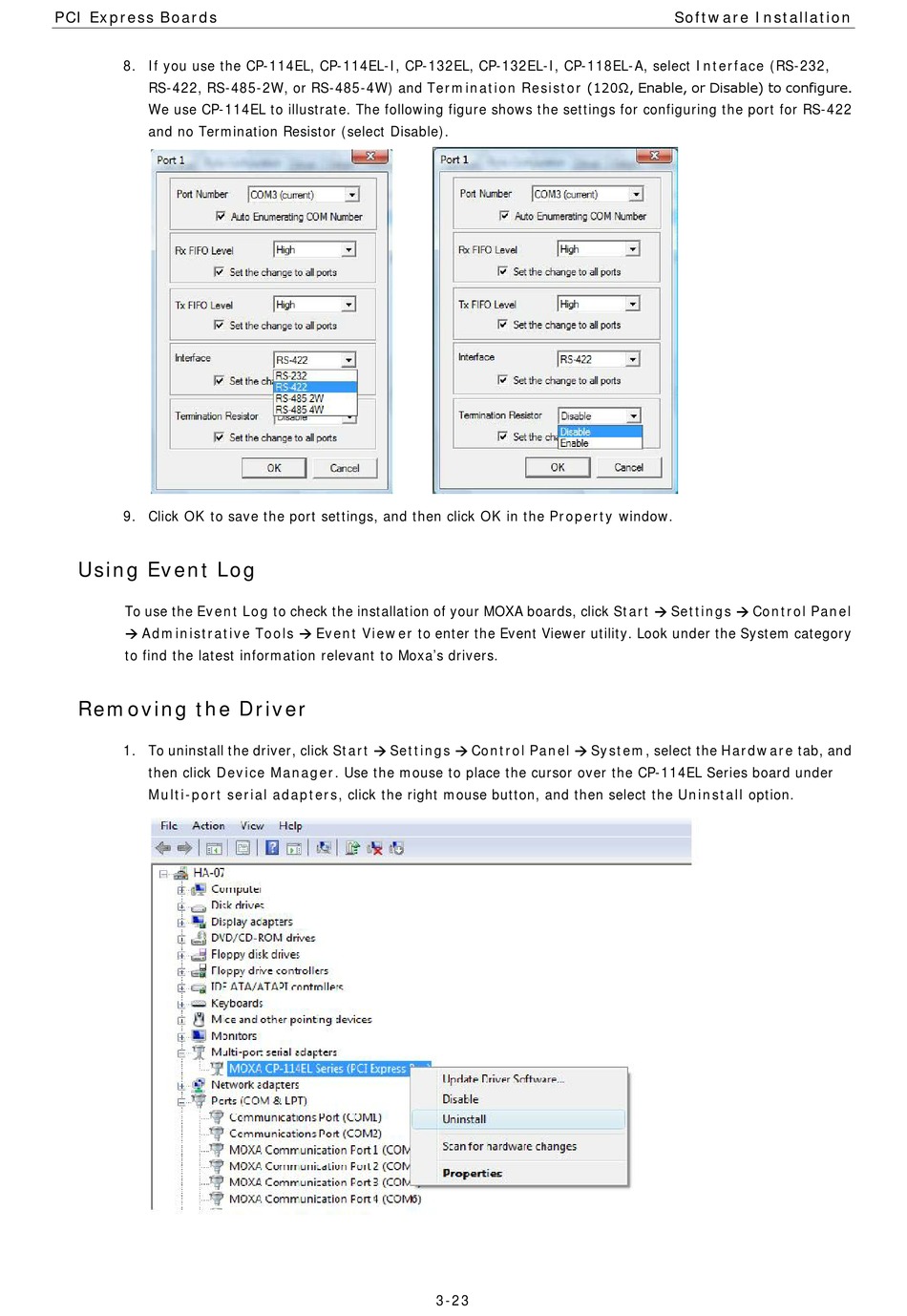

8. If you use the CP-114EL, CP-114EL-I, CP-132EL, CP-132EL-I, CP-118EL-A, select Interface (RS-232,
RS-422, RS-485-2W, or RS-485-4W) and Termination Resistor (120Ω, Enable, or Disable) to configure.
We use CP-114EL to illustrate. The following figure shows the settings for configuring the port for RS-422
and no Termination Resistor (select Disable).
9. Click OK to save the port settings, and then click OK in the Property window.

Using Event Log

To use the Event Log to check the installation of your MOXA boards, click Start  Settings  Control Panel
 Administrative Tools  Event Viewer to enter the Event Viewer utility. Look under the System category
to find the latest information relevant to Moxa's drivers.
Removing the Driver
1. To uninstall the driver, click Start  Settings  Control Panel  System, select the Hardware tab, and
then click Device Manager. Use the mouse to place the cursor over the CP-114EL Series board under
Multi-port serial adapters, click the right mouse button, and then select the Uninstall option.
3-23
Software Installation
