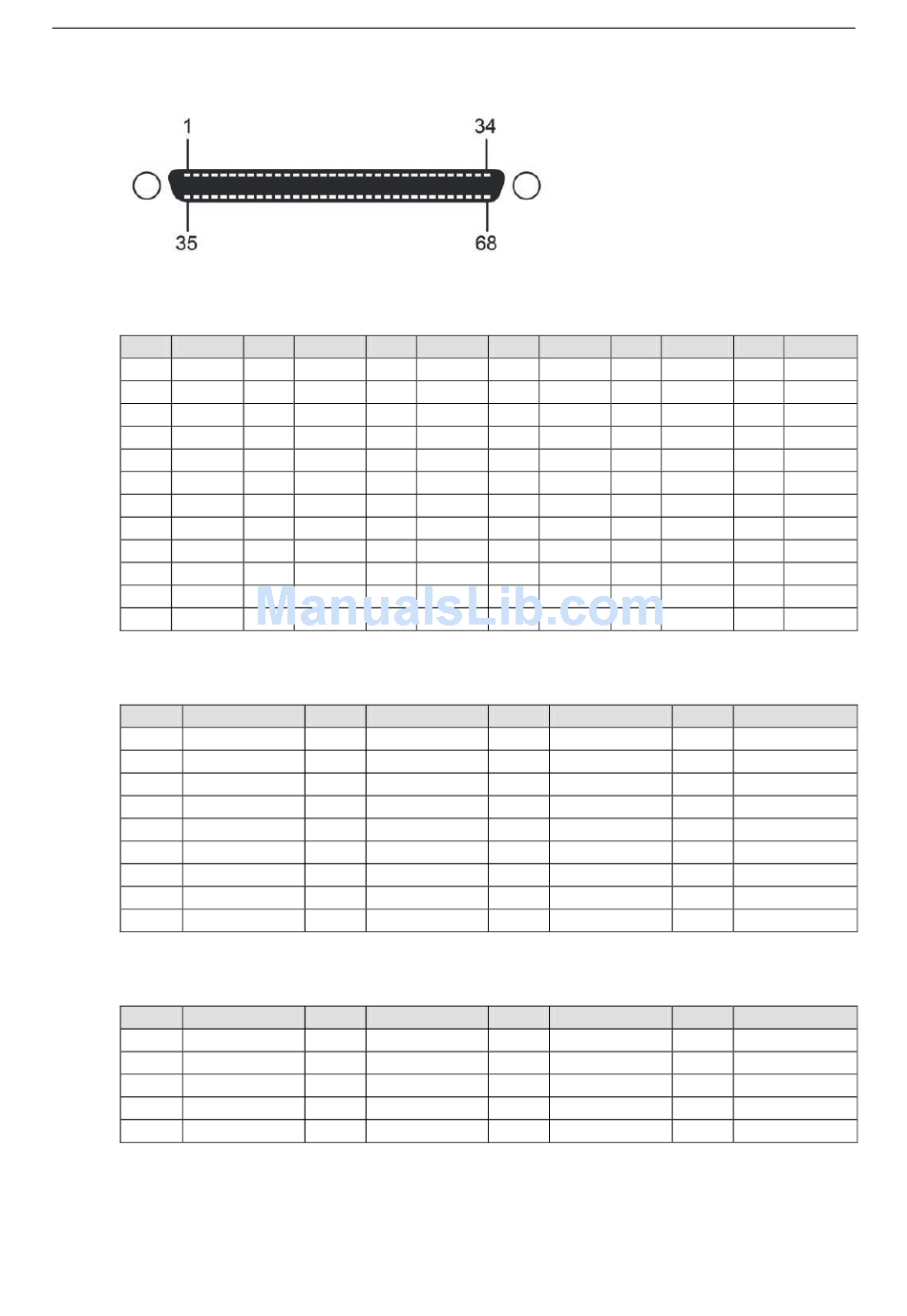

Board Side Pin Assignments-Female SCSI VHDCI68

RS-232
Pin Signal
1 RxD6
2 CTS6
3 RI6
4 RTS6
5 DCD6
6 DTR6
7 DSR6
8 TxD6
9 GND
10 TxD4
11 DSR4
12 DTR4
RS-422 and 4-wire RS-485
Pin Signal
1 TxD6+(B)
5 TxD6-(A)
6 RxD6-(A)
8 RxD6+(B)
9 GND
10 RxD4+(B)
12 RxD4-(A)
13 TxD4-(A)
17 TxD4+(B)
2-wire RS-485
Pin Signal
6 D6-(A)
8 D6+(B)
9 GND
10 D4+(B)
12 D4-(A)
Pin Signal Pin
13 DCD4 25
14 RTS4 26
15 RI4 27
16 CTS4 28
17 RxD4 29
18 RxD2 30
19 CTS2 31
20 RI2 32
21 RTS2 33
22 DCD2 34
23 DTR2 35
24 DSR2 36
Pin Signal
18 TxD2+(B)
22 TxD2-(A)
23 RxD2-(A)
25 RxD2+(B)
26 GND
27 RxD0+(B)
29 RxD0-(A)
30 TxD0-(A)
34 TxD0+(B)
Pin Signal
23 D2-(A)
25 D2+(B)
26 GND
27 D0+(B)
29 D0-(A)
Signal Pin Signal
TxD2 37 RI7
GND 38 RTS7
TxD0 39 DCD7
DSR0 40 DTR7
DTR0 41 DSR7
DCD0 42 TxD7
RTS0 43 GND
RI0 44 TxD5
CTS0 45 DSR5
RxD0 46 DTR5
RxD7 47 DCD5
CTS7 48 RTS5
Pin Signal
35 TxD7+(B)
39 TxD7-(A)
40 RxD7-(A)
42 RxD7+(B)
43 GND
44 RxD5+(B)
46 RxD5-(A)
47 TxD5-(A)
51 TxD5+(B)
Pin Signal
40 D7-(A)
42 D7+(B)
43 GND
44 D5+(B)
46 D5-(A)
6-3
Pin Assignments
Pin Signal Pin
49 RI5 61
50 CTS5 62
51 RxD5 63
52 RxD3 64
53 CTS3 65
54 RI3 66
55 RTS3 67
56 DCD3 68
57 DTR3
58 DSR3
59 TxD3
60 GND
Pin Signal
52 TxD3+(B)
56 TxD3-(A)
57 RxD3-(A)
59 RxD3+(B)
60 GND
61 RxD1+(B)
63 RxD1-(A)
64 TxD1-(A)
68 TxD1+(B)
Pin Signal
57 D3-(A)
59 D3+(B)
60 GND
61 D1+(B)
63 D1-(A)
Signal
TxD1
DSR1
DTR1
DCD1
RTS1
RI1
CTS1
RxD1
