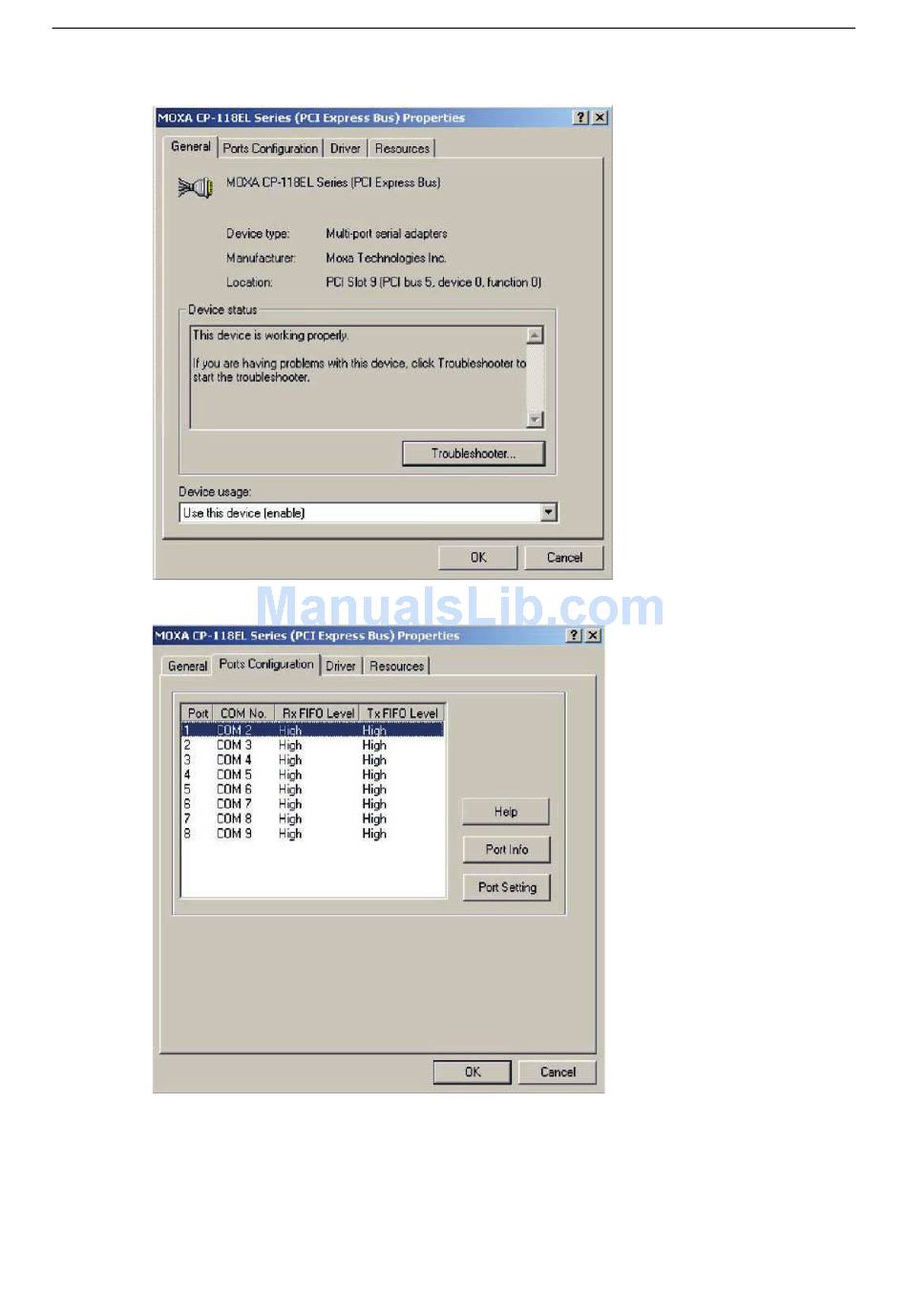

3. Basic information about the board is displayed on the General page. Click the Ports Configuration tab to
configure the board's serial ports.
4. Click the port you would like to configure to highlight it, and then click Port Setting.
5. Select a COM number for the port from the Port Number drop-down list.
6. Select the Auto Enumerating COM Number option to map subsequent ports automatically. The port
numbers will be assigned in sequence. For example, if COM 3 is assigned to Port 1, then COM 4 (if not
already occupied) will be assigned to Port 2, etc.
