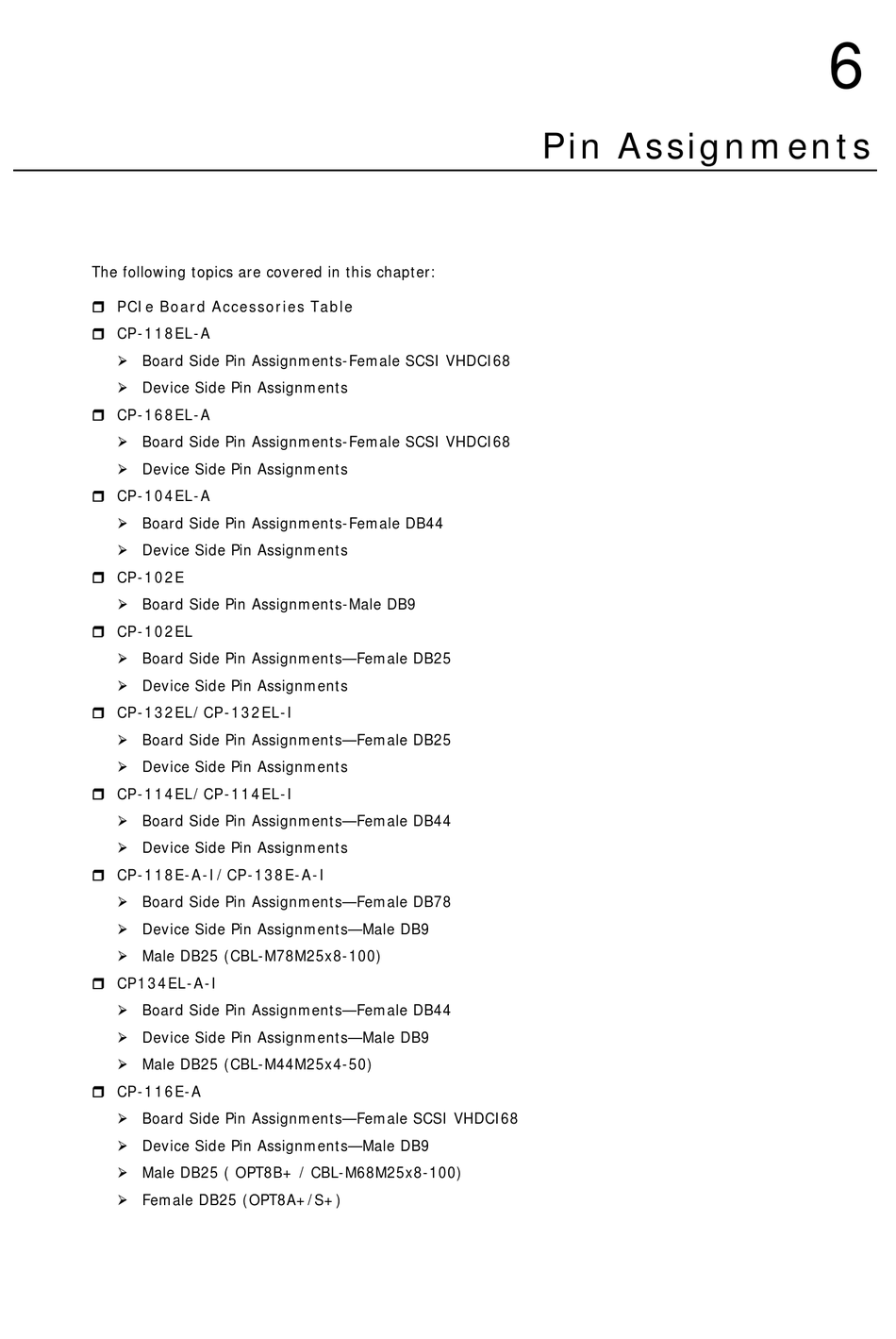

Pin Assignments - Moxa Technologies PCI Express Board User Manual

The following topics are covered in this chapter:
 PCIe Board Accessories Table
 CP-118EL-A
 Board Side Pin Assignments-Female SCSI VHDCI68
 Device Side Pin Assignments
 CP-168EL-A
 Board Side Pin Assignments-Female SCSI VHDCI68
 Device Side Pin Assignments
 CP-104EL-A
 Board Side Pin Assignments-Female DB44
 Device Side Pin Assignments
 CP-102E
 Board Side Pin Assignments-Male DB9
 CP-102EL
 Board Side Pin Assignments—Female DB25
 Device Side Pin Assignments
 CP-132EL/CP-132EL-I
 Board Side Pin Assignments—Female DB25
 Device Side Pin Assignments
 CP-114EL/CP-114EL-I
 Board Side Pin Assignments—Female DB44
 Device Side Pin Assignments
 CP-118E-A-I/CP-138E-A-I
 Board Side Pin Assignments—Female DB78
 Device Side Pin Assignments—Male DB9
 Male DB25 (CBL-M78M25x8-100)
 CP134EL-A-I
 Board Side Pin Assignments—Female DB44
 Device Side Pin Assignments—Male DB9
 Male DB25 (CBL-M44M25x4-50)
 CP-116E-A
 Board Side Pin Assignments—Female SCSI VHDCI68
 Device Side Pin Assignments—Male DB9
 Male DB25 ( OPT8B+ / CBL-M68M25x8-100)
 Female DB25 (OPT8A+/S+)

Pin Assignments

6.
6
