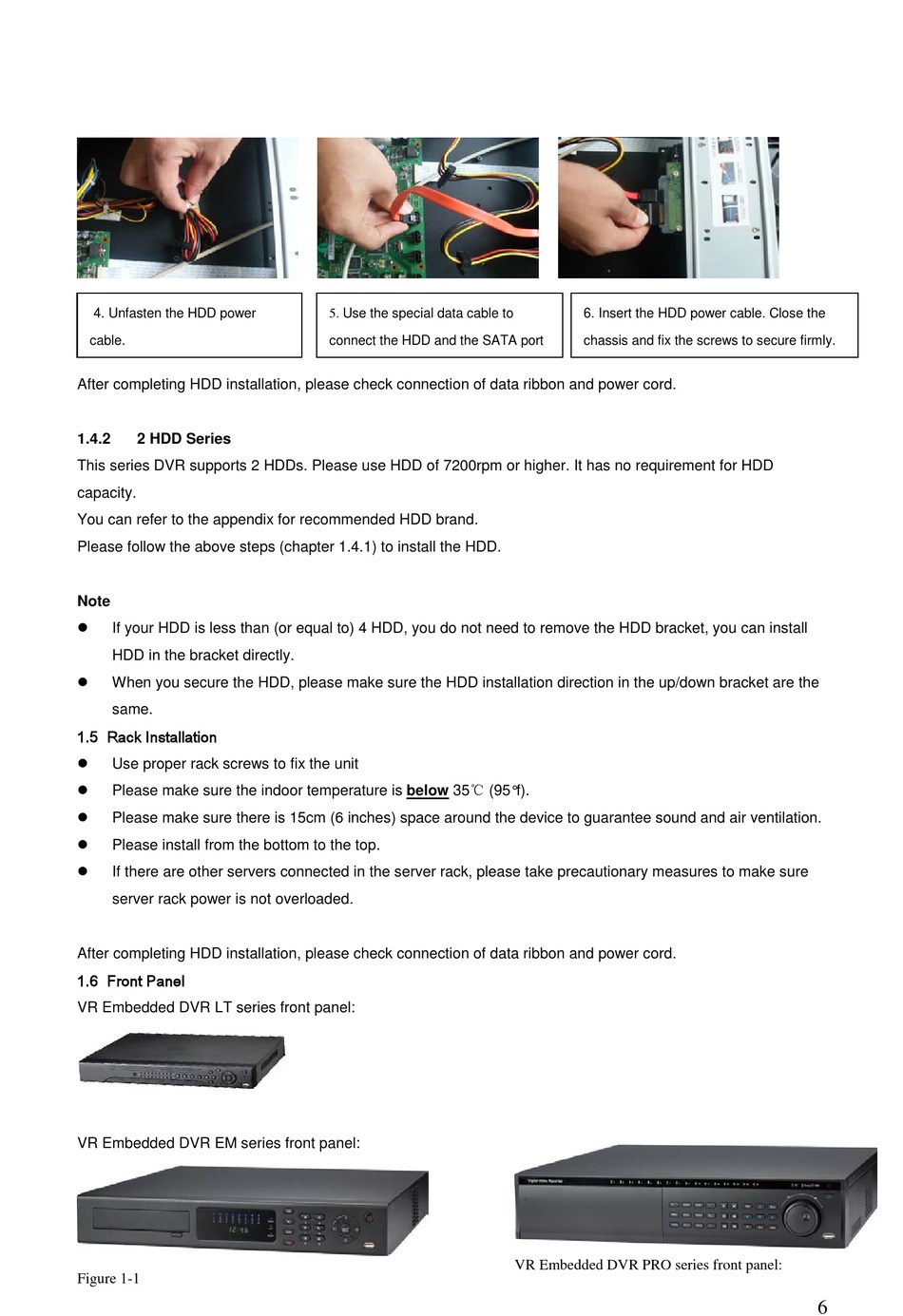

Hdd Series; Rack Installation; Front Panel - Optiview VR LT Quick Start Up Manual

4. Unfasten the HDD power
cable.
After completing HDD installation, please check connection of data ribbon and power cord.
1.4.2

2 HDD Series

This series DVR supports 2 HDDs. Please use HDD of 7200rpm or higher. It has no requirement for HDD
capacity.
You can refer to the appendix for recommended HDD brand.
Please follow the above steps (chapter 1.4.1) to install the HDD.
Note

If your HDD is less than (or equal to) 4 HDD, you do not need to remove the HDD bracket, you can install
HDD in the bracket directly.

When you secure the HDD, please make sure the HDD installation direction in the up/down bracket are the
same.

1.5 Rack Installation


Use proper rack screws to fix the unit

Please make sure the indoor temperature is below

Please make sure there is 15cm (6 inches) space around the device to guarantee sound and air ventilation.

Please install from the bottom to the top.

If there are other servers connected in the server rack, please take precautionary measures to make sure
server rack power is not overloaded.
After completing HDD installation, please check connection of data ribbon and power cord.

1.6 Front Panel

VR Embedded DVR LT series front panel:
VR Embedded DVR EM series front panel:
Figure 1-1
5. Use the special data cable to
connect the HDD and the SATA port
35℃ (95°f).
6. Insert the HDD power cable. Close the
chassis and fix the screws to secure firmly.
VR Embedded DVR PRO series front panel:
6
