Optiview VR LT Quick Start Up Manual page 18

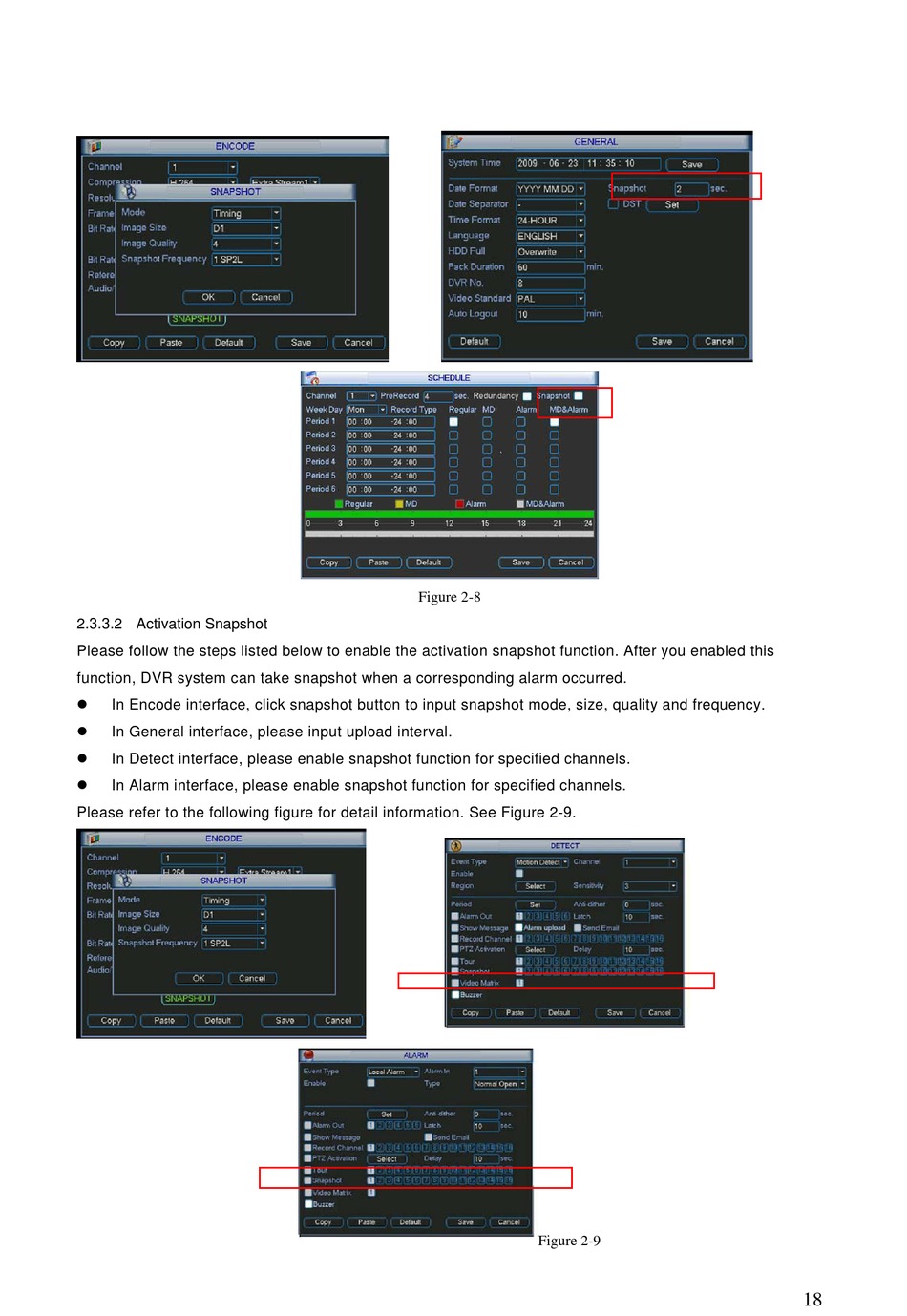

2.3.3.2 Activation Snapshot
Please follow the steps listed below to enable the activation snapshot function. After you enabled this
function, DVR system can take snapshot when a corresponding alarm occurred.

In Encode interface, click snapshot button to input snapshot mode, size, quality and frequency.

In General interface, please input upload interval.

In Detect interface, please enable snapshot function for specified channels.

In Alarm interface, please enable snapshot function for specified channels.
Please refer to the following figure for detail information. See Figure 2-9.
Figure 2-8
Figure 2-9
18
