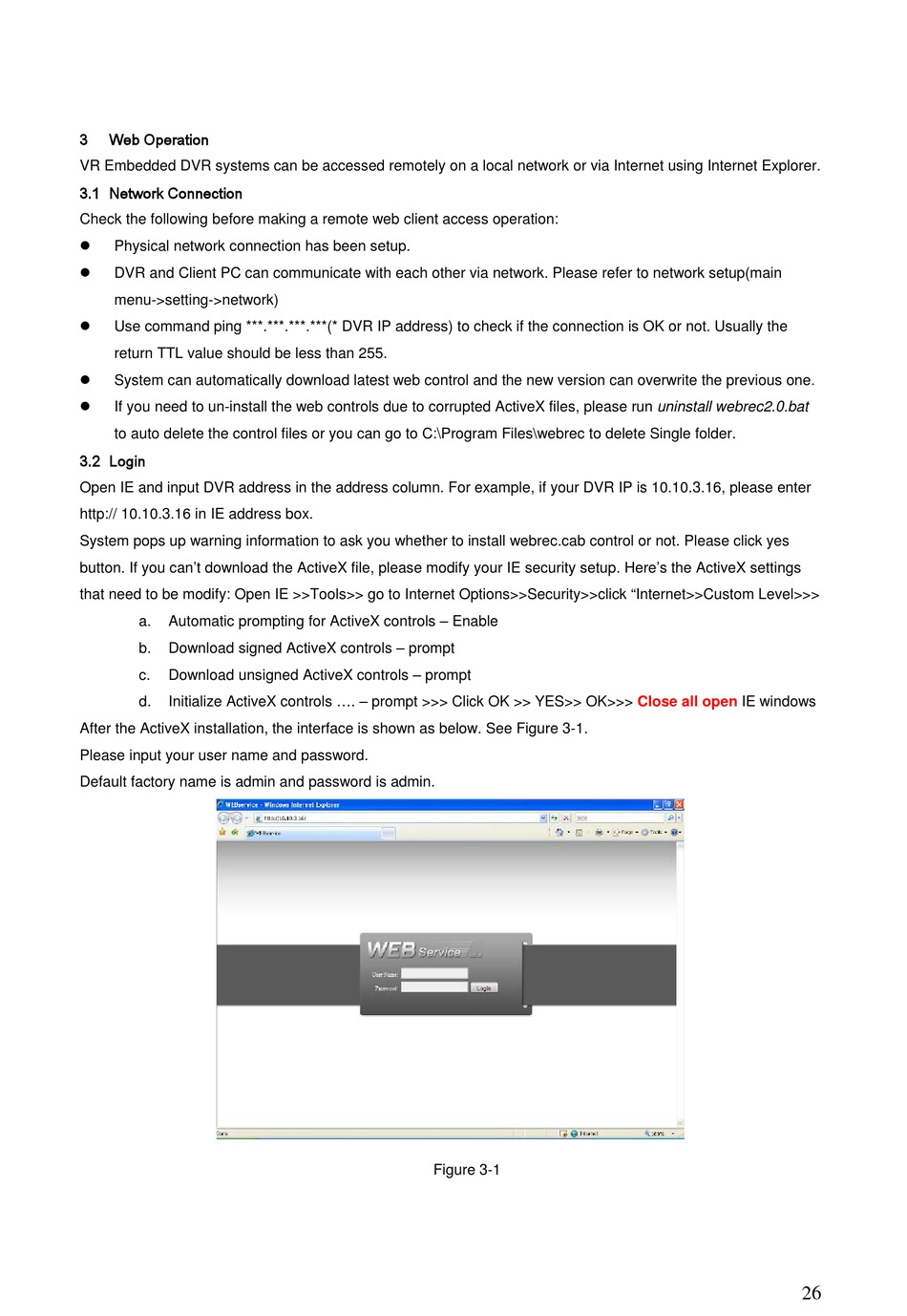

Web Operation; Network Connection; Login - Optiview VR LT Quick Start Up Manual

3

Web Operation

VR Embedded DVR systems can be accessed remotely on a local network or via Internet using Internet Explorer.

3.1 Network Connection

Check the following before making a remote web client access operation:

Physical network connection has been setup.

DVR and Client PC can communicate with each other via network. Please refer to network setup(main
menu->setting->network)

Use command ping ***.***.***.***(* DVR IP address) to check if the connection is OK or not. Usually the
return TTL value should be less than 255.

System can automatically download latest web control and the new version can overwrite the previous one.

If you need to un-install the web controls due to corrupted ActiveX files, please run uninstall webrec2.0.bat
to auto delete the control files or you can go to C:\Program Files\webrec to delete Single folder.

3.2 Login

Open IE and input DVR address in the address column. For example, if your DVR IP is 10.10.3.16, please enter
http:// 10.10.3.16 in IE address box.
System pops up warning information to ask you whether to install webrec.cab control or not. Please click yes
button. If you can't download the ActiveX file, please modify your IE security setup. Here's the ActiveX settings
that need to be modify: Open IE >>Tools>> go to Internet Options>>Security>>click "Internet>>Custom Level>>>
a. Automatic prompting for ActiveX controls – Enable
b. Download signed ActiveX controls – prompt
c. Download unsigned ActiveX controls – prompt
d. Initialize ActiveX controls .... – prompt >>> Click OK >> YES>> OK>>>
After the ActiveX installation, the interface is shown as below. See Figure 3-1.
Please input your user name and password.
Default factory name is admin and password is admin.
Figure 3-1
Close all open IE windows
