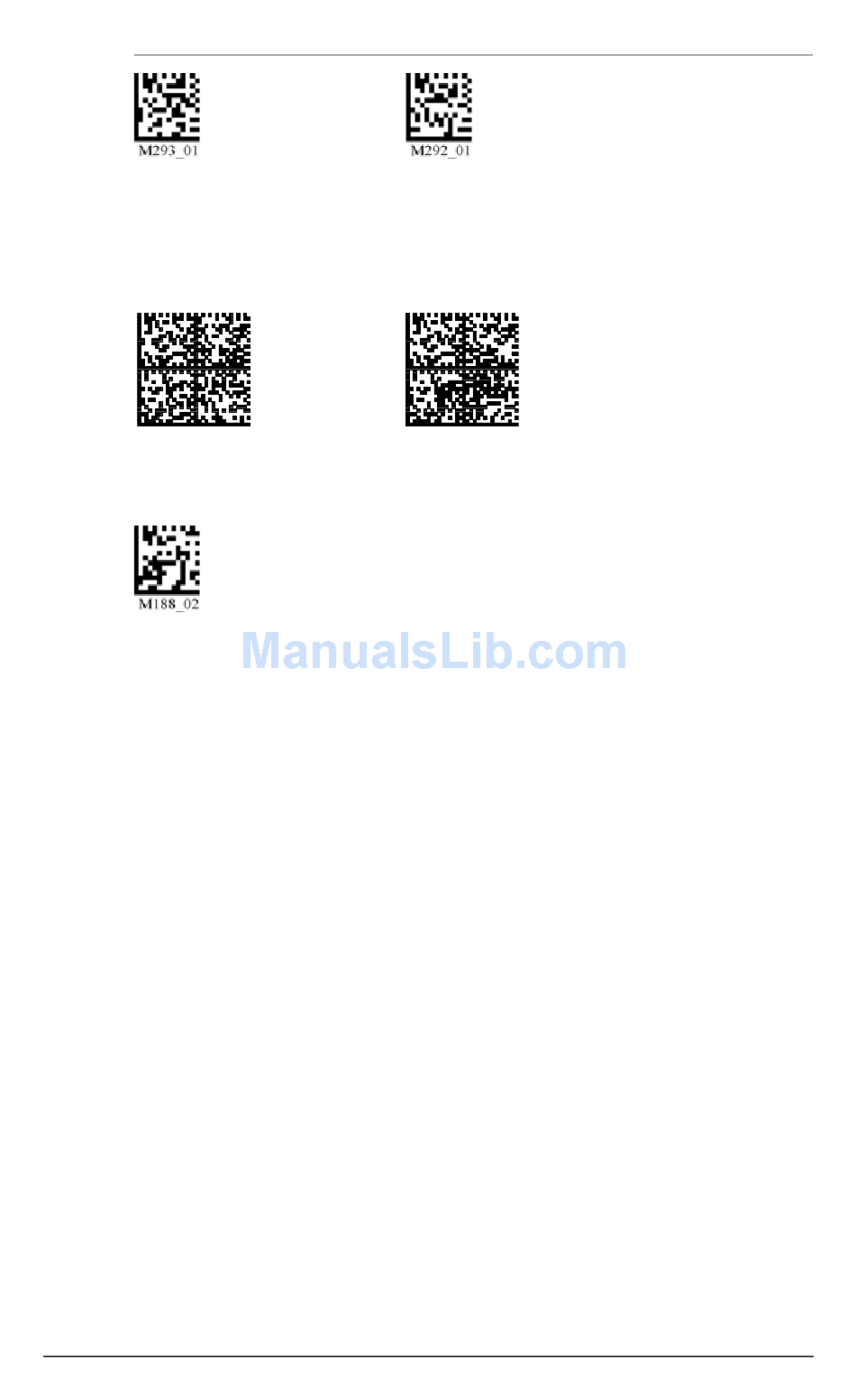

FIGURE 1–37.
PDF417 On
All 1D On
Save Settings

DoD UID Settings

The HE45T unit complies with MIL-STD-130, ISO 15434, and
ISO 15418 to construct a Unique Items Identifier (UII), Current
Port Number (CPN), and Lot/Batch Number (LBN).
The following UID data output options are applicable to Data
Matrix only and have no effect on other symbologies:
• UII/CPN DM On — The HE45T is configured to construct
Unique Item Identifier (UII), Current Part Number (CPN), and
Lot/Batch Number (LBN). If there is a valid UII/CPN/LBN, a
UII/CPN/LBN string is outputted. For decoded Data Matrix
with invalid UII/CPN/LBN, HE45T stops image acquisition
without an output string.
• UII/CPN DM with Data Fields — The HE45T is configured to
construct UII/CPN/LBN with all the data fields.
• UII DM with Data Field — The HE45T is configured to
construct UII and output additional data fields.
Rev 2.0.0, Jan 2009
Symbology Programming Codes (Continued)
PDF417 Off
All 1D Off
HE45T Quickstart Guide
21
