reader, you must pinch the plastic on the 8-pin DIN and pull
back to disengage the connector.

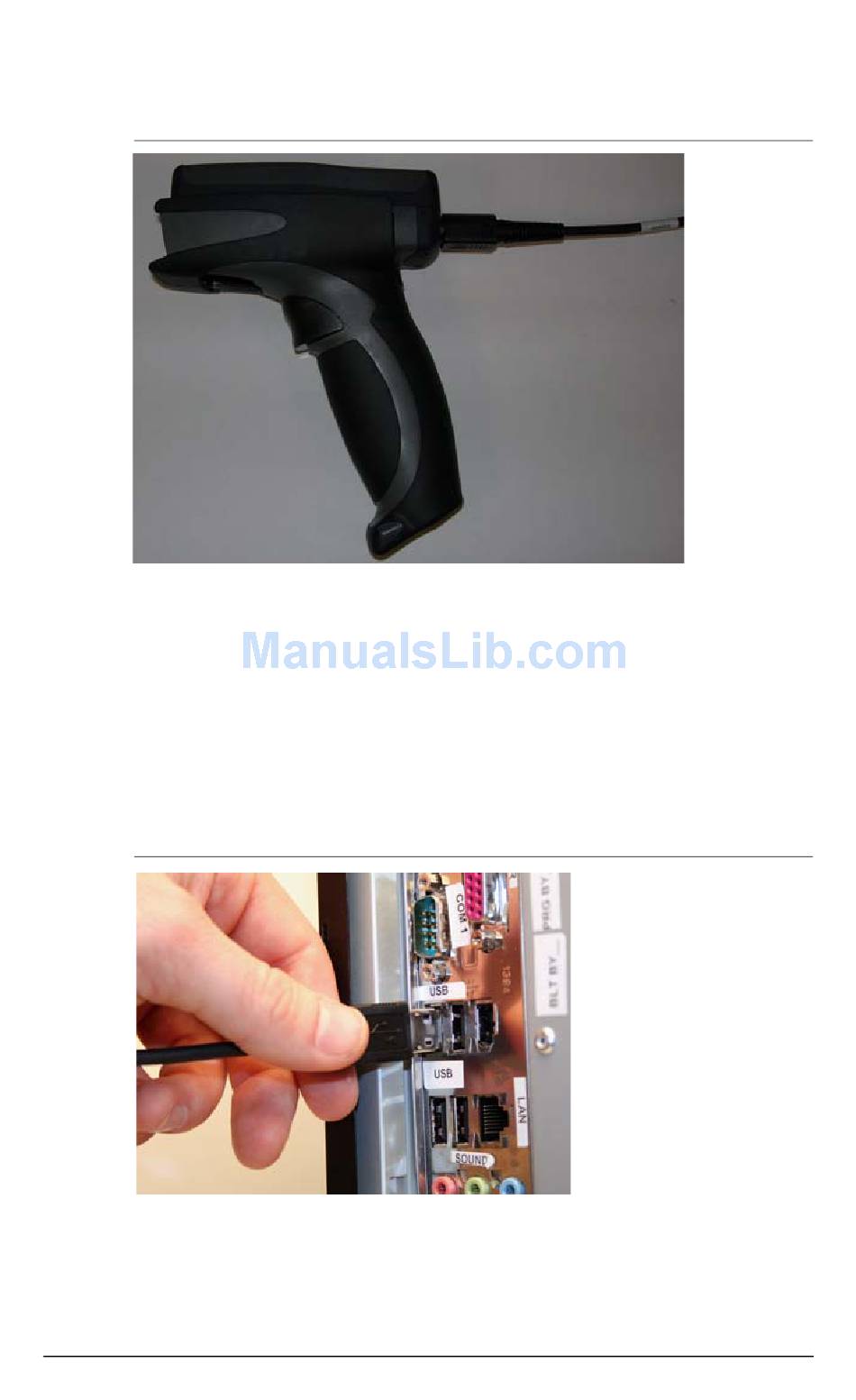

FIGURE 1–15.

USB Cable Connection

Attach the USB cable to the HE45T.
1.
Connect the USB cable to the host in any available USB host
2.
port, as shown in Figure 1–16. You DO NOT need to power off
your host computer.
FIGURE 1–16.
Once properly connected to the host computer, the HE45T will
3.
power on and beep. The reader is shipped pre-configured.
Rev 2.0.0, Jan 2009
Handle with Cable Attached
Connecting the USB Cable
HE45T Quickstart Guide
