Microscan HE45T Quick Start Manual page 11

Push the 8-pin DIN connector at the end of the reader into the
1.
flexible connector at the end of the handle, as shown in
Figure 1–3.

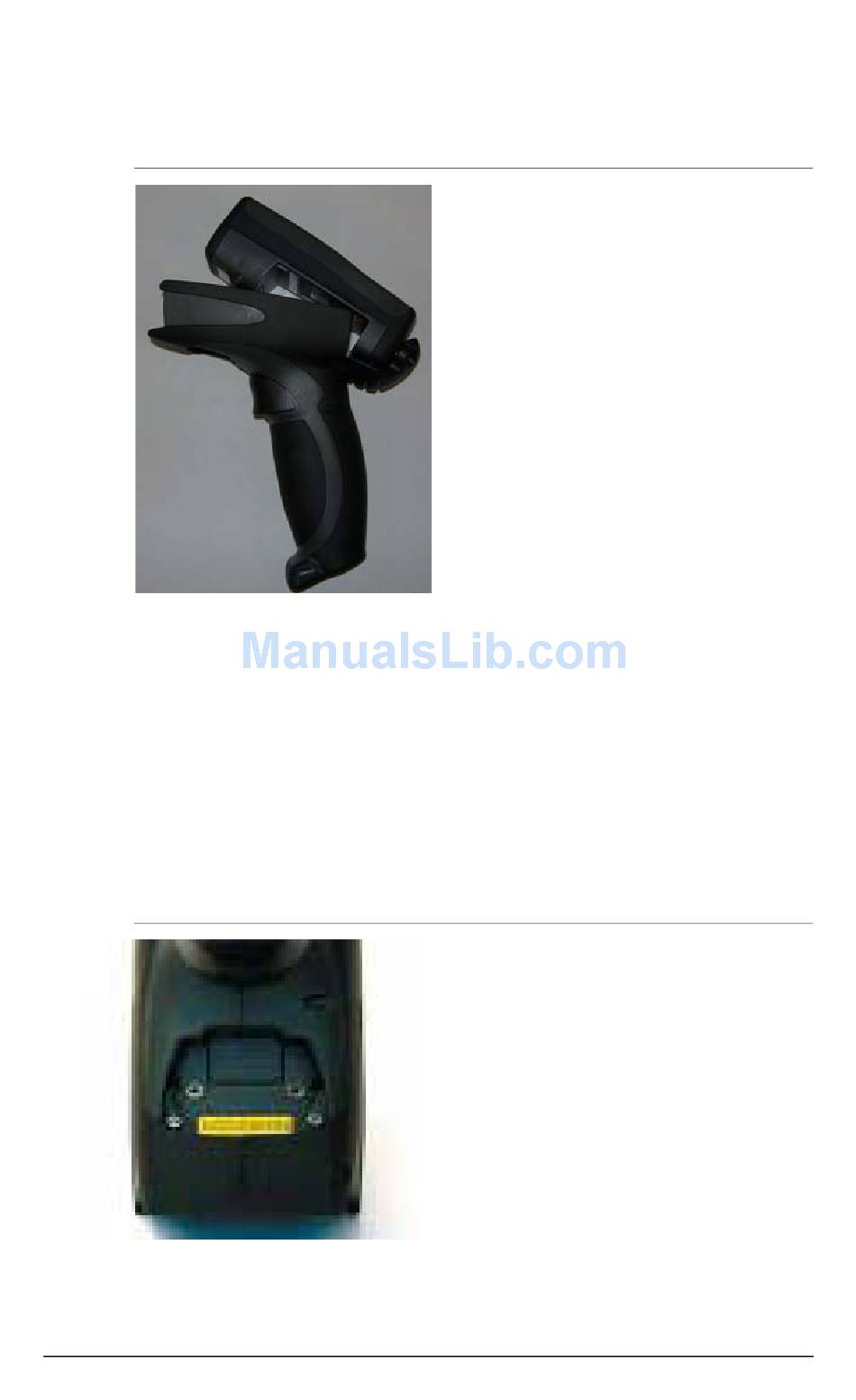

FIGURE 1–3.
Insert the tab on the back of the handle into the reader
2.
(Figure 1–3).
Snap the reader onto the handle, matching the battery
3.
compartment to the battery connectors, visible inside the
handle, as shown in Figure 1–3.
The HE45T can be secured further with threaded screws on the
under side of the handle, as shown in Figure 1–4.
FIGURE 1–4.
Rev 2.0.0, Jan 2009
Attaching the H2 Handle
Location of Threaded Screws
HE45T Quickstart Guide
3
